Help CenterTCK6336S Cnc Lathe 3 Axis
US$ 14444.00 - 14444.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
390mm
Place of Origin
Shandong, China
Brand Name
Pulute
Model Number
TCK6336S
Voltage
380V
Power(W)
5.5KW
Dimension(L*W*H)
2500*1340*1710mm
Weight
2500KGS
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
cnc lathe 3 axis

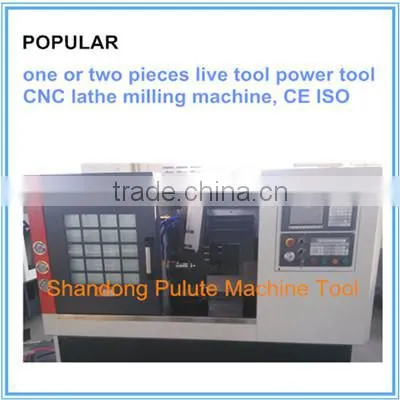

1. advantages of TCK6336S cnc lathe 3 axis

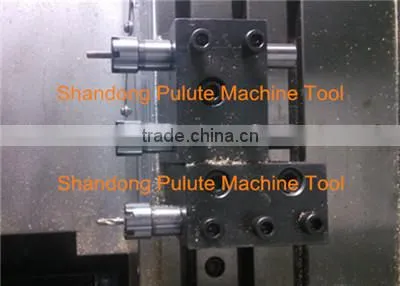

with two pieces live tools, one for milling hexagon, anther for drilling hole
- 6" hydraulic collet chuck, with one piece collet of one size . the other sizes collet are optional
- 3.7 kw main motor. the larger power main motor optional
- TCK6336S 45 degrees slant bed CNC lathe, reasonal mechanical design, easy chip convey
- one piece machine bed ensures high rigidity and high reliability
- Taiwan famous brand high precision linear guide way
- high speed spindle up to 3500 rpm
- pre-stretching structure ball screw could lowen friction much

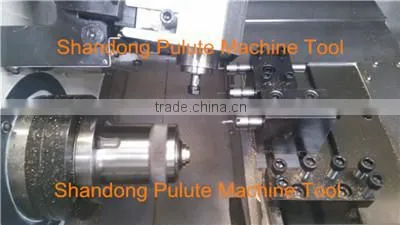

- gang type tool post with quick tool changing time
2. Specification of TCK6336S cnc lathe 3 axis
| cnc lathe 3 axis | TCK6336S |
| Max. swing over bed |
390 mm |
| Max. swing over cross slide | 130 mm |
| Spindle speed | 3500 rpm |
| Spindle nose | A2-6 |
| Spindle bore | 56 mm |
| Max. bar diameter | 45 mm |
| work piece clamping type | 6" hydraulic collet chuck |
| Spindle motor | 3.7 kw |
| X/Z feed motor power | 1.5 kw |
| X/Z feed motor torque | 6/6 Nm |
| X/Z position accuracy |
0.016/0.016 mm |
| X/Z repeatability |
0.006/0.006 mm |
| X/Z rapid feed speed | 18/15 m/min |
| Cutting tool shape size | 20*20 mm |
| Total power capacity | 9 kva |
| Machine dimension (L*W*H) | 2500×1340×1710 |
| N.W. | 2500 kg |
More CNC lathe models with different quantities power tools live tools available.
Videos and training could be offered.
3. Please click the following SEND, to learn more details from us.
