Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock

Name: Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock
Brand: PULUTEK
SKU: 115200607
Availability: InStock

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock thumbnail-1

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock thumbnail-2

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock thumbnail-3

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock thumbnail-4

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock thumbnail-5

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock thumbnail-6

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock photo-1

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock photo-2

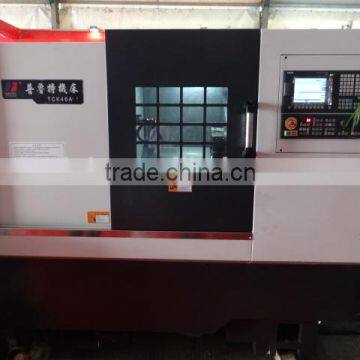

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock photo-3

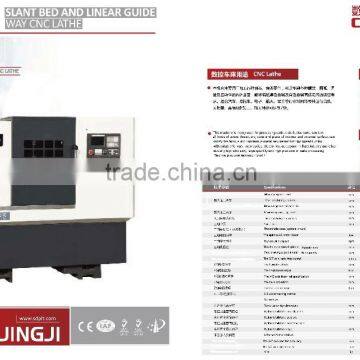

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock photo-4

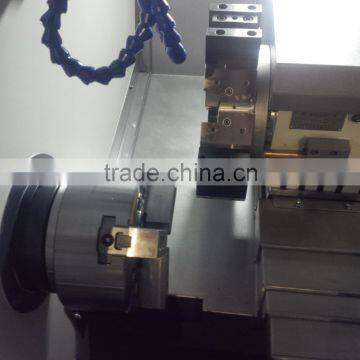

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock photo-5

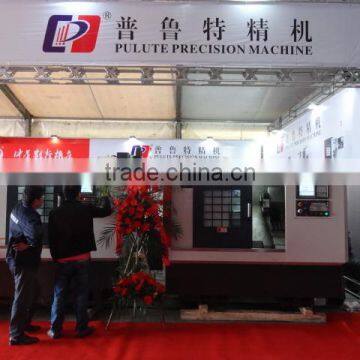

Slant Bed CNC Lathes TCK46A Linear Guideway With Tailstock photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Shandong Pulute Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 460mm

Place of Origin Shandong, China

Brand Name PULUTEK

Model Number TCK46A

Voltage 200/380V

Power(W) 5.5KW

Dimension(L*W*H) 2550*1340*1710mm

Weight 2600KG

Certification ISO CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

30-degree Slant bed CNC Lathes, TCK46A with tailstock

TCK46A, Slant Bed CNC Lathe 30-degree

Taiwan Linear guiideways

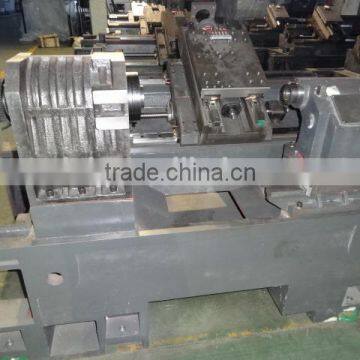

Bed and base from one-piece casting, master-piece CNC Lathes

(Mono-piece casting, High-performance, High-precision)

1. SPECIFICATION

	unit	TCK46A
Max. swing over bed	mm	Φ460
Max. swing over carriage	mm	Φ170
Max. turning length	mm	350
X/Z axis travel	mm	240/400
Spindle unit		Φ170
Spindle nose		A2-5(A2-6 optional)
Spindle bore	mm	56
Spindle drawing pipe diameter	mm	45
Spindle speed	rpm	3500
Spindle motor	kw	5.5
X/Z axis motor torque	NM	7.5/7.5
Guide type		Taiwan linear guide way
N.W.	KG	2600

2. FEATURES

30-degrees slant bed

Higher rigidity cast iron

Higher accuracy Taiwan HIWIN/PMI linear

Integrated automatic lubrication system

Removable hidden type hydraulic tailstock

8 /12 station hydraulic turret

Screw pre-stretching structure

3. USAGE

This machine is mainly used for processing various shaft, disk parts. It can turn various screw head, the surface of arc, cone, rotary body. Its higher speed could meet the higher speed processing

requirement of ferrous and non-ferrous metal.

It could turn the car, motorcycle, electronics, aerospace, military parts with higher efficiency, larger quantity and high precision. Its machining precision could reach level IT7.

4. STANDARD:

GSK980TDC or Siemens 808D CNC system,

servo motor 7.5 kw

8 station hydraulic turret

8" hollow hydraulic chuck made in mainland China.

5. OPTIONAL:

CNC System: KND1000Ti, Fanuc Oi Mate-TD

Main Motor: Servo 11/15 KW, Inverter 11 KW

8-station electric turret, 12-station hydraulic turret

Chuck: 8″ Non-through hole hydraulic chuck

8″ Non-through hole hydraulic chuck (Taiwan)

8″ through hole hydraulic chuck(Taiwan)
