Professional CNC Lathe Machine Manufacturer Pulute

Name: Professional CNC Lathe Machine Manufacturer Pulute
Brand: PULUTE
SKU: 115200205

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Shandong Pulute Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 530mm-800mm

Place of Origin Shandong, China

Brand Name PULUTE

Model Number CK6152E CKE6150

Voltage 220V/380V

Power(W) 7.5kw

Dimension(L*W*H) 2570*1620*1940mm

Weight 3200kg

Certification CE ISO9001

After-sales Service Provided Overseas service center available

Product Description

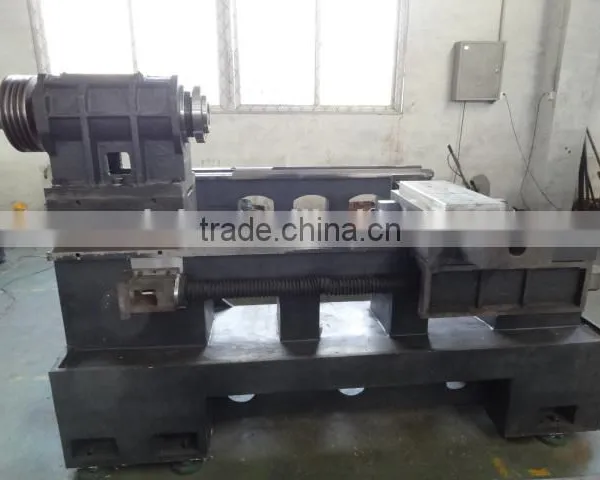

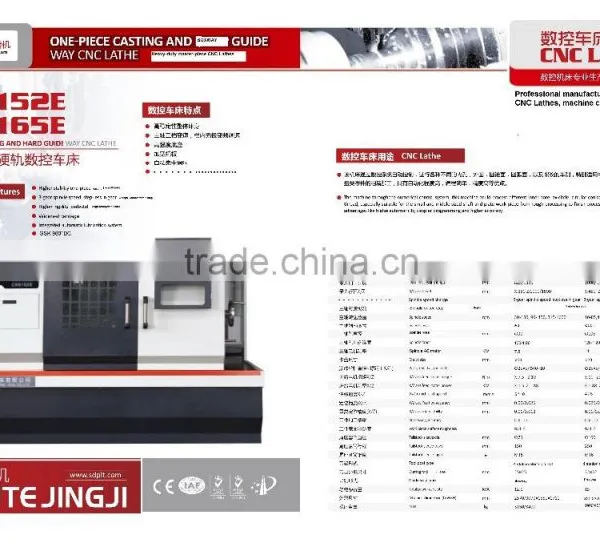

ONE-PIECE CASTING CNC LATHE MACHINE

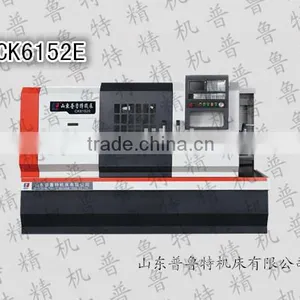

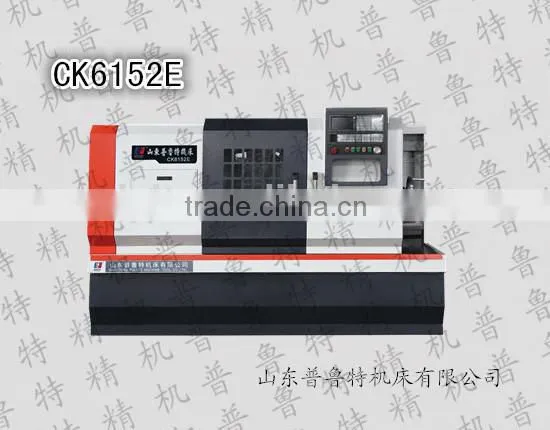

Pulutek CK6165E CK6152E, CKE6150

Specifications

	CK6152E	CK6165E
Max. swing over bed	530 mm	650mm
Max. swing over cross slide	300 mm	400mm
Max. cutting length	825/1325/2000/3000mm	1000/1500/2000/3000mm
Spindle transmission type	three-steps, variable within step	three-gear, step-less in gear
Spindle speed steep	step-less	step-less
Spindle speed	30-150,90-450, 315-1600rpm	10-85,40-350, 110-850 rpm
Spindle nose	A8	C11
Spindle bore	Φ90mm	Φ150mm
Spindle taper	100-1:20	120 1: 20
Spindle motor	7.5kw	11 kw
Max. tool-post travel	X:320 mm	X:500mm
Ball screw dia. and pitch	X:Φ255 Z:Φ4010	X:Φ255mm Z:Φ5010mm
Rapid feed speed	X:3000mm/min Z:6000mm/min	X:4000mm/min Z:5000mm/min
Position accuracy	X:0.02mm Z:0.025mm	X:0.025mm Z:0.03mm
X, Y and X axes repeatability	X:0.01mm Z:0.012mm	X:0.01mm Z:0.015mm
Processing accuracy	IT6-IT7	IT6-IT7
Workpiece surface roughness	Ra1.6	Ra1.6
Tailstock sleeve dia.	Φ75mm	Φ100mm
Tailstock sleeve travel	150mm	250mm
Tailstock sleeve taper	MT5#	MT6#
Tool-post (standard )	4-station electric turret	4-station electric turret
Tool-post ( optional )	6-station or 8-station electric turret	6-station or 8 station electric turret
Toolbar section size	25*25mm	32*32mm
Controller	China GSK980TDC in English	GSK980TDC
Controller ( optional )	KND, FANUC, Siemens	KND, FANUC, Siemens
