Slant bed CNC Lathes
Heavy duty, high precision, economic types are avail from professional manufacturer in Shandong prov., China

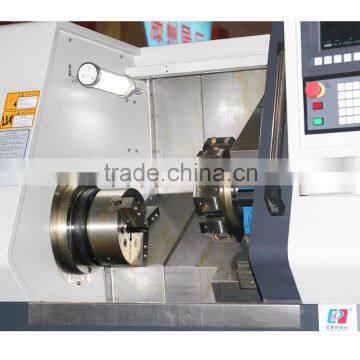

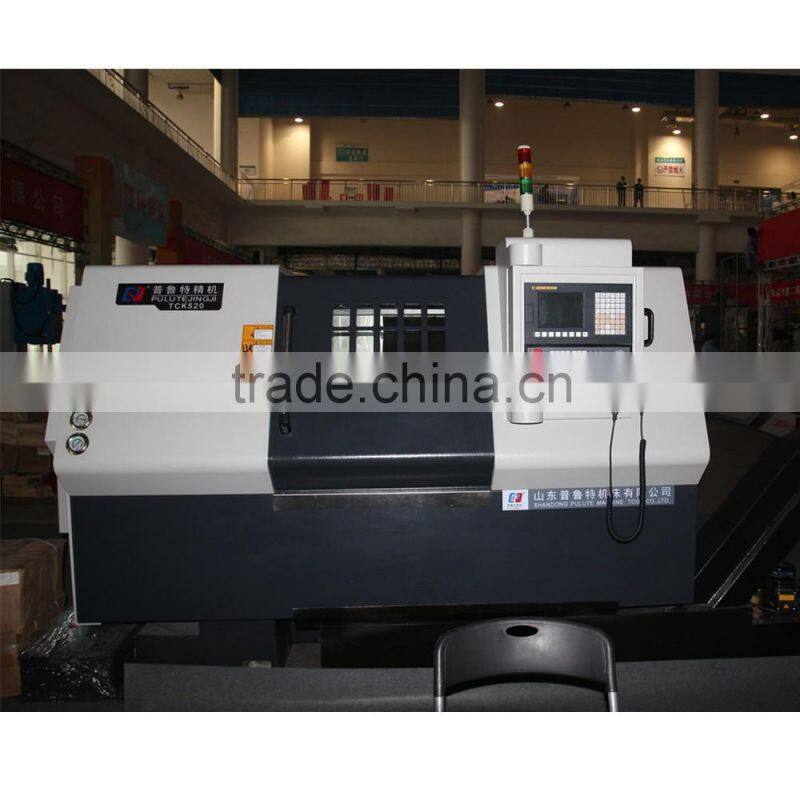

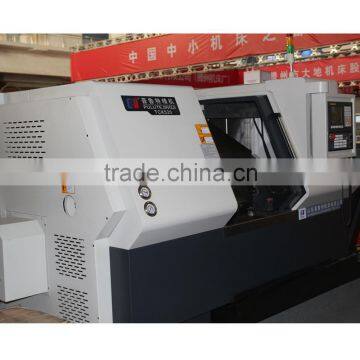

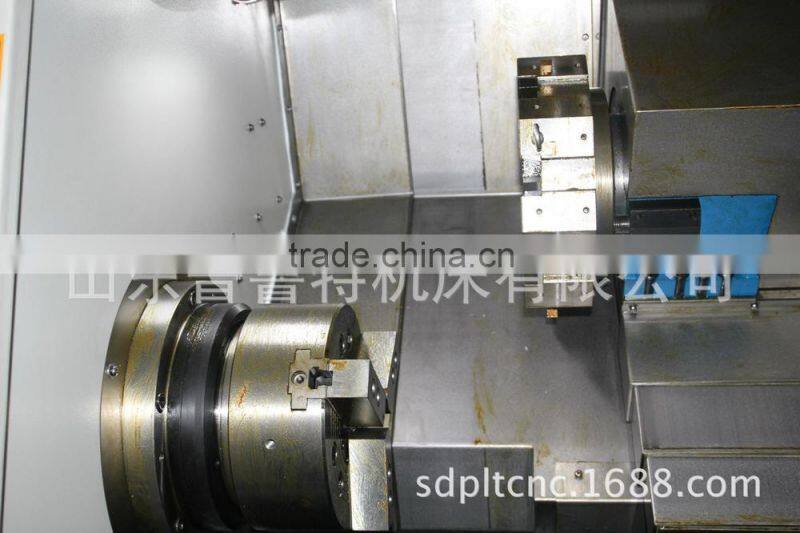

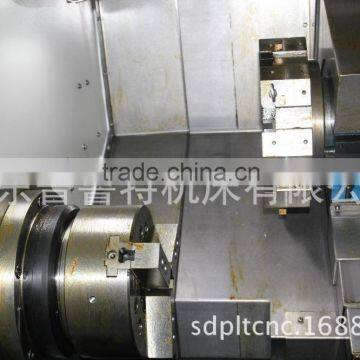

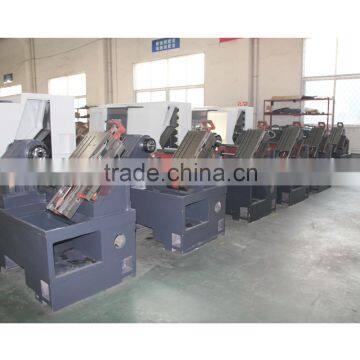

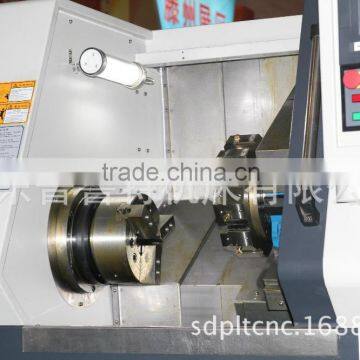

TCK420 TCK500 TCK520 Slant-Bed linear CNC Lathe, 30 degree
1. SPECIFICATION
max. swing over bed |
mm |
(TCK420) 420 |
(TCK500) 500 |
(TCK520) 520 |
max. swing over cross slide |
mm |
270mm |
300 |
320 |
max. processing length |
mm |
400mm |
500 |
500 |
X/Z axis travel |
mm |
160/400 mm |
220/500 |
220*500 |
spindle nose |
mm |
A2-6 |
A2-6 |
A2-8 |
spindle bore |
mm |
66 |
66 |
80 |
Max bar capacity |
mm |
50 |
50 |
60 |
max. spindle speed |
rpm |
3000 |
3000 |
2500 |
chuck size |
inch |
8 |
8 |
10 |
Main motor power |
kw |
5.5 |
7.5 |
7.5 |
X/Z axis position accuracy |
mm |
0.016/0.002mm |
0.016/0.02mm |
0.016/0.02 |
X/Z axis repeatability |
mm |
0.006/0.006mm |
0.006/0.006mm |
0.006/0.006 |
X/Z axis feed motor torque |
N.m |
5/7.5 |
7.5/10 |
5/7.5 |
X/Z axis feed motor power |
kw |
1.3/1.88 |
1.3/1.88 |
1.3/1.88 |
X/Z rapid feed speed |
m/min |
12 |
10 |
10 |
Tailstock travel |
mm |
350 |
350 |
350 |
Tailstock sleeve travel |
mm |
90 |
90 |
100 |
Tailstock taper |
|
MT4# |
MT5# |
MT5# |
Tool post type |
|
8 station hydraulic turret |
8 station hydraulic turret |
8 station hydraulic turret |
Tool size |
mm |
20*20 |
25*25 |
25*25 |
Guide way |
|
Linear |
Taiwan HIWIN linear |
Taiwan HIWIN linear |
Total power capacity |
kva |
11 |
15 |
15 |
Machine size |
mm |
2300*1500*1650 |
2450*1600*1700 |
2450*1600*1700 |
N.W. |
kg |
3000 |
4000 |
4200 |
2. FEATURES
Taiwan high accuracy HIWIN linear
Taiwan famous brand ball screw
hydraulic turret
hydraulic chuck
hydraulic tailstock
thru-hole type rotary cylinder
3. USAGE
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other
industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also
turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.
4. STANDARD ACCESSORIES
GSK980TDC or Siemens 808D controller
Servo main motor 5.5 kw
8 station hydraulic turret
8" thru-hole type hydraulic chuck
hydraulic tailstock
lubrication system
coolant system
lighting system
5. OPTIONAL ACCESSORIES
CNC System: Mitsubishi E60, Fanuc Oi Mate-T
Main Motor: Servo 7.5/11KW
Inverter 7.5KW
Chuck: 8″ Non-through hole hydraulic chuck
8″ Non-through hole hydraulic chuck (Taiwan)
8″ through hole hydraulic chuck(Taiwan)
10″ Non-through hole hydraulic chuck (Taiwan)
10″ through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Without hydraulic tailstock
6. Custom-making, OEM services are avail upon request.
