Fleet Vehicle Tracker AVL System

Fleet Vehicle Tracker AVL System thumbnail-1
Fleet Vehicle Tracker AVL System photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, no screen
Contact Supplier Request Quote Chat Now
Shenzhen Eelink Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, no screen
Function Other, tracking position, tracking history, cut off fuel, cut off power
Place of Origin Guangdong, China
Brand Name eelink
Model Number VT06

Specifications

Slash fuel costs
Increase employee productivity
Capture job site arrival and departure times
Eliminate out-of-route trips

If you are looking for a Fleet Tracking System to help you accurately track the movement of your vehicles throughout the day look no further than Tracker Systems.  Our detailed maps give you clear concise information about the location and routes of all of your equipped vehicles.  Our playback system lets you see where your trucks were throughout the day.

GPS Fleet Tracking is more than just a bunch of pretty pictures and maps.   The core of our system are the detailed reports that give you summarized data with the click of a mouse.   Whether you need to know time spent at a jobsite, excessive speed, excessive idle, our tracking system will give you the answer for a single vehicle, a subfleet or your entire fleet.

If you need to provide your customers with proof of stops or time on site reports, our fleet tracker system will help you do just that.  And, you can export data directly from our servers to your computer in CSV format to create your own spreadsheets and to do your own analysis.

Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management



Environment for use

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery



Basic Specifications:

Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45g



Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely



 Main function



Brand Eelink
Model VT06
Quantity 1 piece(s)
Color Black
Material ABS
Network GSM
Band 85090018001900 MHz
SIM Card Qty. one SIM
Emergency Phone Number Qty. 3
Tracking Information Method Monitoring and controlling platform
Power Supply DC 6~36V
GPS Chip SIRF
GPS Sensitivity -163 dB
GPS Channel 20
Position Accuracy 10 m
Altitude Limit 18000 m
Hot Start 3 seconds
Warm Start 15 seconds
Cold Start 60 seconds
SOS Yes
Geo-fence Yes
Vibrating Alerts Yes
Remote Monitoring Yes
Engine Cut Off Yes
Realtime Monitoring Yes
Track Playback Yes
ACC Anti-Theft Yes
Overspeed Alerts Yes
Low Battery Alerts Yes
GPS Blind Area Alarm Yes
Voice Call No
Waterproof Function Yes
Waterproof Rate Daily user water resistant
Working Temperature -35~75'C
Working Humidity 5%~95%
Manufacturer's Warranty 12 Months excluding physical damages (see specifications for terms and details)
Certification CE




GPS Asset Tracking System Solutions

Fleet Vehicle Tracker AVL System



Detail picture



Fleet Vehicle Tracker AVL System

Fleet Vehicle Tracker AVL SystemFleet Vehicle Tracker AVL System





GPS TRACKING SYSTEM



Fleet Vehicle Tracker AVL System

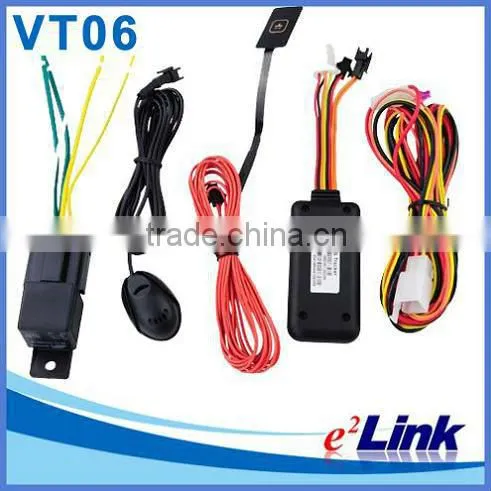

Package

Packing List 1 x GPS (5cm)
  1 x Power cable (100cm)
  1 x Microphone (150cm)
  1 x SOS button
  1 x English user manual
  1 x Chinese / English instruction manual





 Fleet Vehicle Tracker AVL System



Accessories



Fleet Vehicle Tracker AVL System



Fleet Vehicle Tracker AVL System





Office and Laboratory

Fleet Vehicle Tracker AVL System





Factory SMT Workshop

Fleet Vehicle Tracker AVL System





Factory Cable Assembly  Workshop



Fleet Vehicle Tracker AVL System





Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
