GPS Mower Tracker, Lawn Equipment Tracking

GPS Mower Tracker, Lawn Equipment Tracking thumbnail-1
GPS Mower Tracker, Lawn Equipment Tracking photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, no screen
Contact Supplier Request Quote Chat Now
Shenzhen Eelink Communication Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, no screen
Function Other, tracking position, tracking history, cut off fuel, cut off power
Place of Origin Guangdong, China
Brand Name eelink

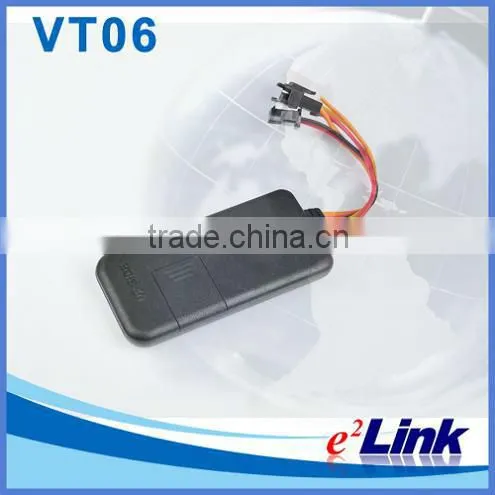

Model Number VT06

Specifications

Track by SMS/GPRS
-SOS Alarm,Geo-fence Alarm
-External Power Cut Alarm
-Engine Cut, Low Battery Alarm

 MowerTracker recovers wasted payroll, recovers disputed invoices, and helps you recover stolen equipment.


See when your equipment arrives at the job site, the length of time it is in use, and when it leaves the job site. Set e-mail alerts to notify you if it is used at times when it shouldn't be, or if the equipment is taken from your location after hours or on weekends. Reports (available for 90 days) let you to verify that your crews did the work you invoiced your customer for and you can verify your payroll time cards as well. The MowerTracker device is self-contained and can be installed in a small water-sealed housing with no external antennas. The device is easily connected with three wires to the mower's electrical system (battery, ground and ignition key). MowerTracker was designed with the help of landscape professionals and mower repair technicians to help you make the best use of this expensive, hard to insure lawn mower equipment.



Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management



Environment for use

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery



Basic Specifications:

Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45g



Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely



 Main function



Brand Eelink
Model VT06
Quantity 1 piece(s)
Color Black
Material ABS
Network GSM
Band 85090018001900 MHz
SIM Card Qty. one SIM
Emergency Phone Number Qty. 3
Tracking Information Method Monitoring and controlling platform
Power Supply DC 6~36V
GPS Chip SIRF
GPS Sensitivity -163 dB
GPS Channel 20
Position Accuracy 10 m
Altitude Limit 18000 m
Hot Start 3 seconds
Warm Start 15 seconds
Cold Start 60 seconds
SOS Yes
Geo-fence Yes
Vibrating Alerts Yes
Remote Monitoring Yes
Engine Cut Off Yes
Realtime Monitoring Yes
Track Playback Yes
ACC Anti-Theft Yes
Overspeed Alerts Yes
Low Battery Alerts Yes
GPS Blind Area Alarm Yes
Voice Call No
Waterproof Function Yes
Waterproof Rate Daily user water resistant
Working Temperature -35~75'C
Working Humidity 5%~95%
Manufacturer's Warranty 12 Months excluding physical damages (see specifications for terms and details)
Certification CE




GPS Mower Tracking Solutions

GPS Mower Tracker, Lawn Equipment Tracking



Detail picture



GPS Mower Tracker, Lawn Equipment Tracking

GPS Mower Tracker, Lawn Equipment TrackingGPS Mower Tracker, Lawn Equipment Tracking





GPS TRACKING SYSTEM



GPS Mower Tracker, Lawn Equipment Tracking







Package

Packing List 1 x GPS (5cm)
  1 x Power cable (100cm)
  1 x Microphone (150cm)
  1 x SOS button
  1 x English user manual
  1 x Chinese / English instruction manual





 GPS Mower Tracker, Lawn Equipment Tracking
