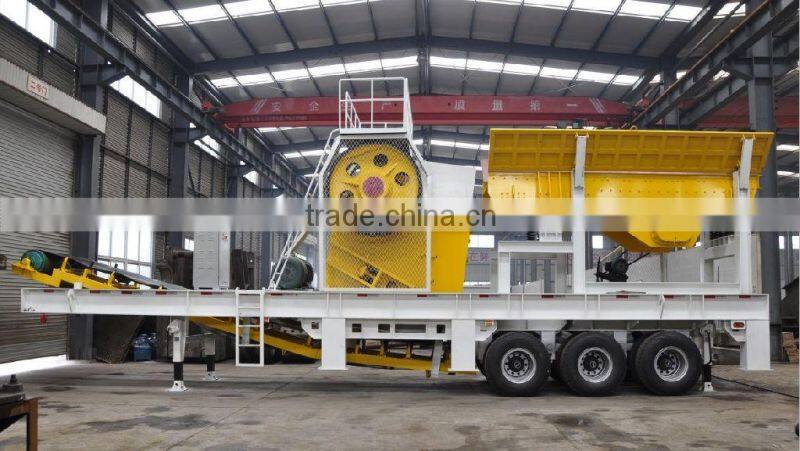

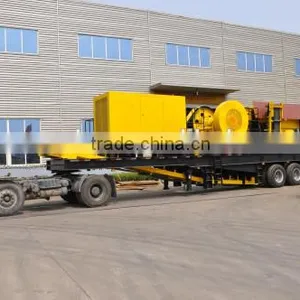

Wheel movable stone crushing plant, Tire mobile stone crushing plant, Portable stone crushing plant

Specifications

Chengming Stone Jaw Cruhser
1. High crushing ratio
2. Large capacity
3. Competitive price
4.Intimate after-sales service

Stone jaw crusher, rock jaw crusher, hardstone jaw crusher, small jaw crusher

mining jaw crusher, granite jaw crusher, limestone jaw crusher, basalt jaw crusher, gravel jaw crusher,river stone jaw crusher

Primary jaw crusher

Contact: Amy Wang Mobilephone: +86-15192901373 Skype: amycrusher



Mobile stone crusher plant, Movable stone crusher plant, Portable Mobile crusher plant description:



1. Mobile crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

2. Includes hopper, vibrating feeder, jaw crusher, vibrating screen, belt conveyor and centrally electric controlling system

3. Big materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for primary crushing

4. After the first crush, the material will transferred to impact crusher by conveyor belt for secondary crush, the crushed materials will then transferred to the vibrating screen for separating

5. After separating, parts that can meet requirements will be transferred away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit

Size of final products can be combined and graded according to customer's specifications requirement.



Mobile crusher plant excellent characteristics:



1.PE series high performance crusher



2.the integrative feeder and screen



3.the integrative truck loading of belt conveyor, vibrating screen and crusher



4.direction-changing axis of traction for the road transportation convenience and jobsite penetrate deeply



5.truck loading installation supporter for the fast and convenience of equipment residence



6.the integration of truck loading motor and control panel



Mobile crusher plant details:

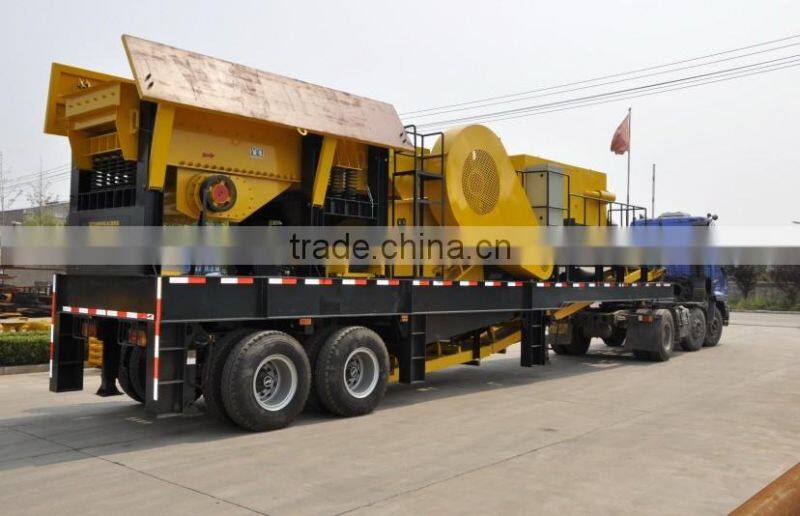

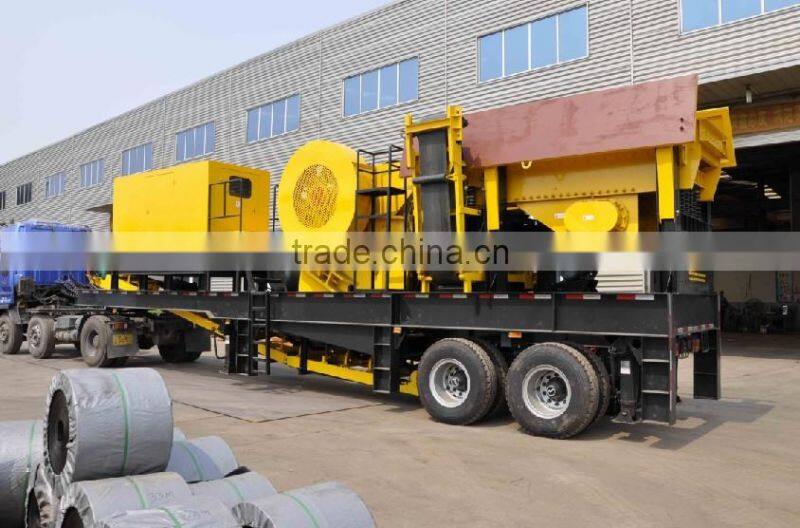

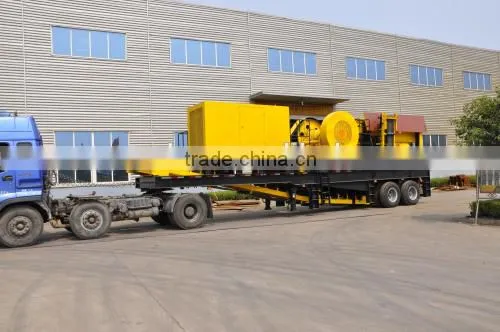

This series of mobile crusher plant incorporates all the equipments together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. it can start to work soon even in the bumpy ground without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.



Mobile crusher plant compatibility:



Mobile crusher plants can work independently or together with other devices according to coarse crusher or fine crusher requirements. Side discharging chute supports more screening and transporting ways. Diesel generators of the incorporated plant can not only supply power for this plant, but also supply power for other plants of the process flow.



The specification of mobile stone crusher plant:



Model	YZ938E69	YZ1149E75	YZ1349E90
Transport Length(mm)	11900	13100	14600
Transport Width (mm)	2550	2550	2950
Transport Heigt (mm)	3650	4450	4500
Length(mm)	12100	13300	14600
Width(mm)	2900	2950	3300
Hiehgt(mm)	4060	4810	5300
Weight(T)	36	57	83
Rubber tyre	Double shaft	Three shafts	Three shafts
Crusher model	PE600×900	PE750×1060	PE900×1200
Max. feeding size(mm)	480	630	750
Output size(mm)	65~160	80~140	95~165
Capacity(t/h)	90~180	110~320	220~450
Feeder model	ZSW380*96	ZSW490*110	ZSW490*130
Belt model	B800×8.5M	B1000×9M	B1200×9.5M
Side belt (Optional)	B450×3M	B500×3.5M	B650×4M
GeneratorKW)	180	220	250

When you are interested in Shandong Chengming Jaw Crusher, please Check "QA" to save time

Q: What about Warranty? What will we do if the machine is broken down?

A: Our Warranty is 1 year for whole machine except wearing spare parts.

We will provide the technical advice and find the solution immdiately for you when the machine is in trouble-shoot. For wearing spare parts, we gurantee the high quality parts for long-time supply.

Q: What's information should we offer for you if we want to get best engineering proposal and quotation?

A: If you want us recommend a suitable engineering proposal for you, please let us know the following information,

1. You only need one Jaw Crusher of whole crushing line? (Include feeder, crusher, screen, belt coveyor and so on).

2). What is the stone type? Marble, granite, basalt, gravel or others?

3). What is the capacity you need? Tons per hour

4). What is the Max Input Size? mm/inch

5). What is the Out Put Size you need ? 0-5-10-15mm or other size?

6). What is the use of the final products?

Q: What could you help me to do for the business?

A: Thank you for your trust, we can provide you with pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions and of applied spot, we can help you choose the matching equipments, drilling rig, loader, trucks, excavators and so on.

When you check all, please contact us by e-mail or call us, we will make the business simple for you.

Sales manager Amy Wang will offer you the crusher machine line professional service for you.

Skype: amycrusher

Phone: +86-15192901373

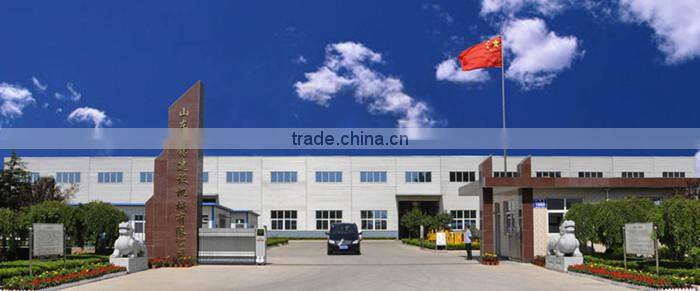

We also warmly welcome you to visit our factory for negotiating business, our factory address :

North District of National Grade Economic Development Zone, Linyi City, Shandong Province, China.
