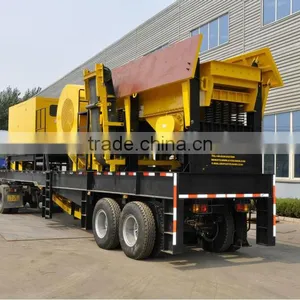

Mobile Crusher Plant

Mobile Crusher Plant photo-1

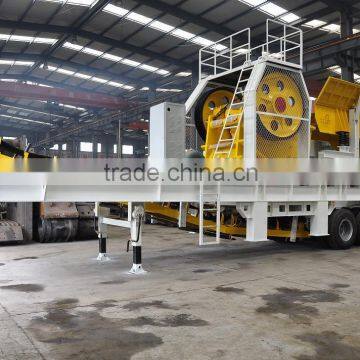

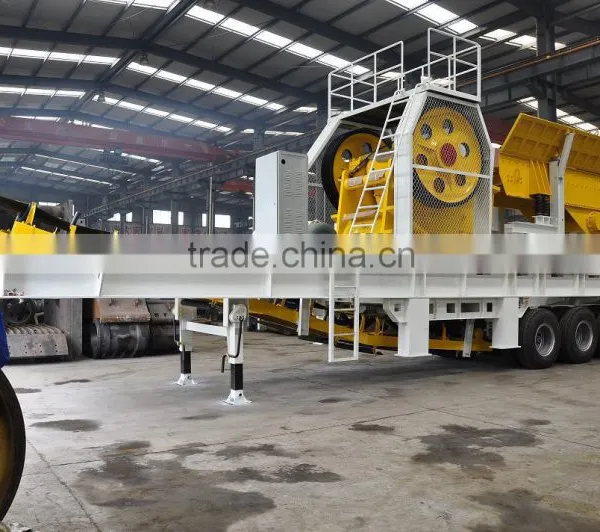

Mobile Crusher Plant photo-2
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Portable/Moveable crusher plant
Application:
mining, construction, ore processing
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Portable/Moveable crusher plant
Application mining, construction, ore processing
Motor Type AC Motor
Power(W) 100-1000KW
Capacity(t/h) 30-200 T/H
Place of Origin Shandong, China
Brand Name SDSY
Model Number PE
Weight 20-60 ton per hour
Certification CE, ISO
Warranty 1 year ( 12 month)
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. free of installation
2. Easy transportation
3. Integrated with whole plant
4. High efficiency

Specifications

mobile crusher plant:
1.Support legs on truck.
2.Quick to set-up.
3.Steering traction axis.
4.CE certificated

SDSY mobile crusher plant,mobile impact crusher plant

mobile crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.  the  impact crusher degests home and abored vanguard technology ,unifites newest generation of highly effectiv small aggregate crusher which the domestic corelation profession concrete operating mode condition develops. It's used in each kind of medium degree of hardness solid material ,in cement industry,limestone in broken bits,paste,chamotte,and so on . Also mobile crusher plant can crush the calcium phosphide in broken bits, the dolomite,and pearl ore. It is widely used in the building materials, the chemical fertilizer and fire-proof material.



mobile crusher plant features:
• Incorporated design
• Truck mounted
• Quick road transportation
• With support legs on truck,quick to set-up

Main Specifications Of Mobile Jaw Crusher Plant:



Model

Vibrating feeder

Jaw crusher

Belt conveyor

Extended belt  conveyor

Capacity (t/h)

Power (kw)

Max

Dimension L×W×H(mm)

Total weight(t)

YG938E69

GZD960×

3800

PE600×900

B650×7M

Optional

70-150

91.5

13200×

2900×

4700

42

YG1142E710

GZD1100×

4200

PE750×1060

B800×9M

Optional

90-200

134

15000×

3100×

5100

55

YG1349E912

GZD1300×

4900

PE900×1200

B1000×11M

Optional

150-300

146

17000×

3300×

5600

72



Main Specifications Of Mobile Impact Crusher Plant:



Model

Vibrating Screen

Impact Crusher

Belt Conveyor

Capacity (t/h)

Power (kw)

 Overall Dimension

L×W×H (mm)

weight

(t)

Y3S1548F1010

3YZS1548

PF1010

B500×7M

50-250

70-90

12500×

2800×

6000

42

Y3S1848F1210

3YZS1848

PF1210

B650×7M

70-300

128.5-150.5

12500×

3000×

6500

46

Y3S1860F1214

3YZS1860

PF1214

B650×8M

90-400

154-190

13500×

3000×

6500

51

Y3S2160F1315

3YZS2160

PF1315

B800×8M

120-450

210-297

14000×
3200×

6800

57



Main Specifications Of Mobile Cone Crusher Plant:



Model

Vibrating screen

Cone crusher

Belt conveyor

Capacity (t/h)

Power (kw)

Max Dimension

L×W×H (mm)

Total

weight

(t)

Y3S1548Y900

3YZS1548

PYB900

B500×7M

50-200

75

13000×

2800×

6400

43

Y3S1848S36

3YZS1848

ZYS36

B650×7M

70-300

99-134

13000×

3000×

6700

47

Y3S1860S51

3YZS1860

ZYS51

B650×8M

120-400

212.5-220.5

14000×

3000×

6700

53

Y3S2160H220

3YZS2160

HP220

B800×8M

140-450

257.5-264.5

14000×

3200×

6700

58


Mobile crusher plantMobile crusher plantMobile crusher plantMobile crusher plant
