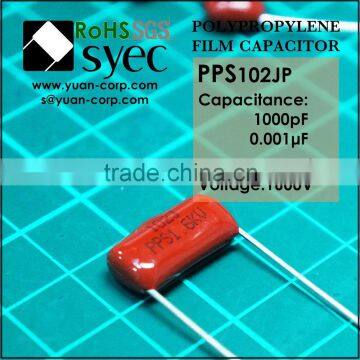

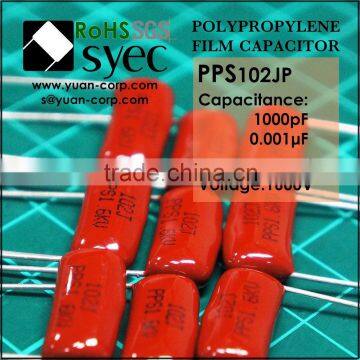

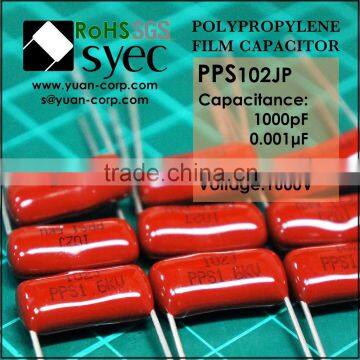

1000pF 1000VDC PPN 102J 1000VDC Polypropylene Film Capacitor
PPN are non-inductively wound with Polypropylene film dielectric and aluminum foil electrode with copper-clad steel leads and are epoxy resin coated. They are suitable for blocking, by-pass coupling and temperature compensation for applications in telecommunication, data processing, industrial instrumentation and automatic control system equipment.
FEATURES :
- Low dissipation factor and high insulation resistance.
- High stability of capacitance and DF versus temperature and frequency.
- Low dielectric absorption.
- Non-inductive construction.
SPECIFICATION :
- Operating Temperature : -40℃~+85℃
- Capacitance Range : 0.0001uF~0.12 uF
- CAPACITANCE TOLERANCE : ±1%(F)±2%(G)±5%(J) ±10%(K),
- RATED VOLTAGE : 100VDC,250VDC,400VDC,630 VDC
- DISSIPATION FACTOR : 0.1%MAX AT 1KHZ,25℃
- INSULATION RESISTANCE : >30000MΩ(C<=0.1uf)>3000MΩ.uF (C>0.1uF)
- TESTING VOLTAGE : WVDCx 175%For 1~5sec.
- SOLDERABILITY : 230℃±5℃ 3sec
Unit : mm
RV SIZE CAP | 100VDC | 250VDC | 400VDC | 630VDC | ||||||||||||
W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | |
101~821 | 10.5 | 9.5 | 6 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 |
102 | 10.5 | 9.5 | 6 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 |
122 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.0 | 7.0 |
152 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.0 | 7.0 |
222 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.5 | 7.0 |
272 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.5 | 7.0 |
332 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.5 | 7.5 | 7.0 |
392 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 14 | 10.5 | 6.5 | 10.0 |
472 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 14 | 12.0 | 7.0 | 10.0 |
562 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 14 | 13.0 | 7.5 | 10.0 |
682 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 14 | 10.0 | 6.5 | 10.0 | 14 | 13.0 | 7.5 | 10.0 |
822 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 14 | 10.0 | 6.5 | 10.0 | 20 | 13.0 | 7.3 | 15.0 |
103 | 10.5 | 10.0 | 6.5 | 7.0 | 10.5 | 10.0 | 6.5 | 7.0 | 14 | 12.5 | 7.5 | 10.0 | 20 | 13.0 | 7.5 | 15.0 |
123 | 10.5 | 10.0 | 6.5 | 7.0 | 10.5 | 10.0 | 6.5 | 7.0 | 14 | 12.8 | 7.5 | 10.0 | 20 | 13.0 | 7.5 | 15.0 |
153 | 11.0 | 11.0 | 6.5 | 7.0 | 10.5 | 11.0 | 7.0 | 7.0 | 14 | 13.5 | 8.0 | 10.0 | 20 | 14.5 | 8.0 | 15.0 |
223 | 11.0 | 11.0 | 7.0 | 7.0 | 10.5 | 12.0 | 7.5 | 7.0 | 14 | 13.5 | 8.0 | 10.0 | 20 | 16.5 | 10.5 | 15.0 |
273 | 14.0 | 11.0 | 7.0 | 10.0 | 14.0 | 12.0 | 7.0 | 10.0 | 19.0 | 12.0 | 7.5 | 15.0 | 20 | 16.5 | 10.8 | 15.0 |
333 | 14.0 | 11.0 | 7.0 | 10.0 | 14.0 | 13.0 | 7.0 | 10.0 | 19.0 | 14.0 | 8.5 | 15.0 | 20 | 19.0 | 11.0 | 15.0 |
473 | 14.0 | 11.5 | 7.5 | 10.0 | 14.0 | 13.2 | 7.5 | 10.0 | 20.0 | 15.5 | 9.5 | 15.0 | 25 | 17.0 | 10.0 | 21.0 |
563 | 14.0 | 12.5 | 8.0 | 10.0 | 14.0 | 13.5 | 7.5 | 10.0 | 20.0 | 15.5 | 10.0 | 15.0 | 26 | 19.0 | 13.0 | 21.5 |
683 | 14.0 | 13.5 | 8.5 | 10.0 | 14.0 | 14.0 | 8.5 | 10.0 | 20.0 | 16.0 | 11.0 | 15.0 | 27 | 22.0 | 14.0 | 21.5 |
104 | 19.0 | 15.0 | 8.5 | 15.0 | 20.0 | 16.0 | 10.5 | 15.0 | 25.0 | 18.0 | 11.0 | 21.0 | 32 | 22.0 | 13.0 | 27.0 |
124 | 19.0 | 15.0 | 8.5 | 15.0 | 20.0 | 16.0 | 10.0 | 15.0 | 25.0 | 19.0 | 12.0 | 21.0 | 32 | 23.0 | 14.0 | 27.0 |
Unit : mm
1000pF 1000VDC PPN 102J 1000VDC Polypropylene Film Capacitor
| Capacitor | Film Capacitor | Polypropylene Film Capacitor |
1000pF 1000VDC PPN 102J 1000VDC Polypropylene Film Capacitor
| Capacitor | Film Capacitor | Polypropylene Film Capacitor |
Packaging : Bulk or Tape ( Lead Pitch < 75mm )
Delivery Detail : about 15 days after payment received
1000pF 1000VDC PPN 102J 1000VDC Polypropylene Film Capacitor
| Capacitor | Film Capacitor | Polypropylene Film Capacitor |
Web Site :
We are Same Yuan.
Established in 1982 in Kaohsiung, Taiwan, Same Yuan Capacitor Enterprises Co., Ltd. is positioned as a professional PS (polystyrene), PP (polypropylene) and PE (polyester) film capacitors manufacturer. We design and produce film capacitors in Taiwan under the brand of "Same Yuan". OEM business is also welcome. We are the main PS/PEN/PPN film capacitors maker in Taiwan at present. As a professional manufacturer,
We offer our clients the following advantage:
- Best quality
- Speedy Delivery
- Competitive Price
- Prompt Service
- Complete Satisfaction
- Innovation Technology
1000pF 1000VDC PPN 102J 1000VDC Polypropylene Film Capacitor
| Capacitor | Film Capacitor | Polypropylene Film Capacitor |
Our main products:
- Polystyrene Film Capacitor (Inductive Type)
- Polypropylene Film Capacitor (Non-inductive type)
- High Voltage Polypropylene Film Capacitor
- Polyester Film Capacitor
- Metallized Polyester Film Capacitor
- Metallized Polypropylene Film Capacitor
- Mini Box Capacitor
- X2 Capacitor
1000pF 1000VDC PPN 102J 1000VDC Polypropylene Film Capacitor
| Capacitor | Film Capacitor | Polypropylene Film Capacitor |
