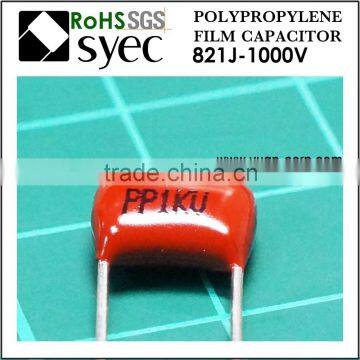

820pF 1000VDC PPN 821J 1000VDC Polypropylene Film Capacitor

PPN are non-inductively wound with Polypropylene film dielectric and aluminum foil electrode with copper-clad steel leads and are epoxy resin coated. They are suitable for blocking, by-pass coupling and temperature compensation for applications in telecommunication, data processing, industrial instrumentation and automatic control system  equipment.

FEATURES :

• Low dissipation factor and high insulation resistance.
• High stability of capacitance and DF versus  temperature and frequency.
• Low dielectric absorption.
• Non-inductive construction.

SPECIFICATION :

• Operating Temperature : -40℃~+85℃
• Capacitance Range : 0.0001uF~0.12 uF
• CAPACITANCE TOLERANCE : ±1%(F)±2%(G)±5%(J) ±10%(K),
• RATED VOLTAGE : 100VDC,250VDC,400VDC,630 VDC
• DISSIPATION FACTOR : 0.1%MAX AT 1KHZ,25℃
• INSULATION RESISTANCE : >30000MΩ(C<=0.1uf)>3000MΩ.uF (C>0.1uF)
• TESTING VOLTAGE : WVDCx 175%For 1~5sec.
• SOLDERABILITY : 230℃±5℃ 3sec



BODY :





SPEC And SIZE :

Unit : mm

RV  SIZE CAP	100VDC				250VDC				400VDC				630VDC
	W	H	T	P±1	W	H	T	P±1	W	H	T	P±1	W	H	T	P±1
101~821	10.5	9.5	6	7.0	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0
102	10.5	9.5	6	7.0	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0
122	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	10.0	7.0	7.0
152	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	10.0	7.0	7.0
222	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	10.0	7.5	7.0
272	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	10.0	7.5	7.0
332	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	10.5	7.5	7.0
392	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	14	10.5	6.5	10.0
472	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	10.5	9.5	6.0	7.0	14	12.0	7.0	10.0
562	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0	14	13.0	7.5	10.0
682	10.5	9.5	5.5	7.0	10.5	9.5	5.5	7.0	14	10.0	6.5	10.0	14	13.0	7.5	10.0
822	10.5	9.5	6.0	7.0	10.5	9.5	6.0	7.0	14	10.0	6.5	10.0	20	13.0	7.3	15.0
103	10.5	10.0	6.5	7.0	10.5	10.0	6.5	7.0	14	12.5	7.5	10.0	20	13.0	7.5	15.0
123	10.5	10.0	6.5	7.0	10.5	10.0	6.5	7.0	14	12.8	7.5	10.0	20	13.0	7.5	15.0
153	11.0	11.0	6.5	7.0	10.5	11.0	7.0	7.0	14	13.5	8.0	10.0	20	14.5	8.0	15.0
223	11.0	11.0	7.0	7.0	10.5	12.0	7.5	7.0	14	13.5	8.0	10.0	20	16.5	10.5	15.0
273	14.0	11.0	7.0	10.0	14.0	12.0	7.0	10.0	19.0	12.0	7.5	15.0	20	16.5	10.8	15.0
333	14.0	11.0	7.0	10.0	14.0	13.0	7.0	10.0	19.0	14.0	8.5	15.0	20	19.0	11.0	15.0
473	14.0	11.5	7.5	10.0	14.0	13.2	7.5	10.0	20.0	15.5	9.5	15.0	25	17.0	10.0	21.0
563	14.0	12.5	8.0	10.0	14.0	13.5	7.5	10.0	20.0	15.5	10.0	15.0	26	19.0	13.0	21.5
683	14.0	13.5	8.5	10.0	14.0	14.0	8.5	10.0	20.0	16.0	11.0	15.0	27	22.0	14.0	21.5
104	19.0	15.0	8.5	15.0	20.0	16.0	10.5	15.0	25.0	18.0	11.0	21.0	32	22.0	13.0	27.0
124	19.0	15.0	8.5	15.0	20.0	16.0	10.0	15.0	25.0	19.0	12.0	21.0	32	23.0	14.0	27.0



Unit : mm

Packaging : Bulk or Tape ( Lead Pitch < 75mm )

Delivery Detail : about 15 days after payment received
