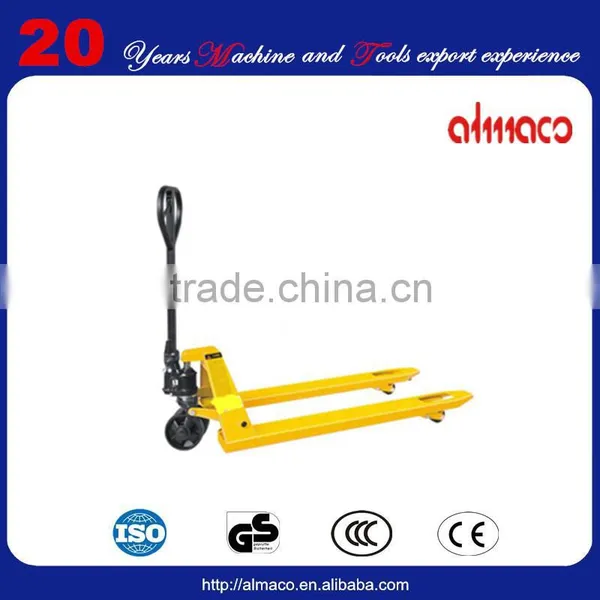

high quality hand pallet truck
Main specification:
Model |
|
DF |
|
Capacity |
Q(kg) |
2500/3000 |
2500/3000 |
Lowered fork height |
h13(mm) |
85 |
75 |
Steering wheel |
mm |
φ180 |
φ180 |
Fork wheel single |
mm |
φ80×93 |
φ74×93 |
Fork wheel tandem |
mm |
φ80×70 |
φ74×70 |
Max. lift height |
h3(mm) |
195 |
185 |
Total height |
h14(mm) |
1233.5 |
1223.5 |
Overall length |
l1(mm) |
1528.5/1598.5 |
1528.5/1598.5 |
Fork length |
l(mm) |
1150/1220 |
1150/1220 |
Width overall forks |
b5(mm) |
520/550/685 |
520/550/685 |
Ground clearance,centre of wheelbase |
m2(mm) |
32 |
22 |
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1728.5/1798.5 |
1728.5/1798.5 |
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1778.5/1798.5 |
1778.5/1798.5 |
Turning radius |
Wa(mm) |
1244.5/1314.5 |
1244.5/1314.5 |
Service weight |
kg |
65-77 |
65-77 |
Advantages
- Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.
- Excellent turning angle of 180 degrees facilities.
- Number of pump strokes-10.Lift height per stroke:11mm.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
