variable rake type hydraulic shear
Feature:
1)All steel welded structure, consolidated treatment for removal of internal stress(vibrating aging, heat), with good rigidity and stability.
2)Integrated hydraulic gransmission system, with good reliability.
3)Triple support rolling guide rail to elimitnate gaps of support and enhance shearing quality.
4)Mechanical rear stopper with manual ine turning, and digital indication.
5)Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6)Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
7)Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece.
8)Function of shearing in sections, function of aligning with light.
Main specification:
NO. |
Name |
Value |
Unit |
1 |
Cutting plate thickness |
8 |
mm |
2 |
Cutting plate width |
2500 |
mm |
3 |
Backguage range |
750 |
mm |
4 |
Cutting angle |
0.5~2.5 |
° |
5 |
Throat depth |
100 |
mm |
6 |
Main motor power |
11 |
kW |
7 |
Machine weight |
5.3 |
T |
Main equipment list:
NO. |
Name |
manufacturers |
1 |
Main seals |
NOK |
2 |
Valve |
YUKEN,JOEGANG |
3 |
Travel switch and pushbuttons |
SCHNEIDER |
4 |
Relay and contactor |
SCHNEIDER |
5 |
Upper and lower blade |
IKS (6CrW2Si) |
6 |
Counter |
SIKO |
7 |
Gear pump |
CHENGJIE |
8 |
Hydraulic adapter |
EMB |
9 |
Motor |
CE STANDARD |

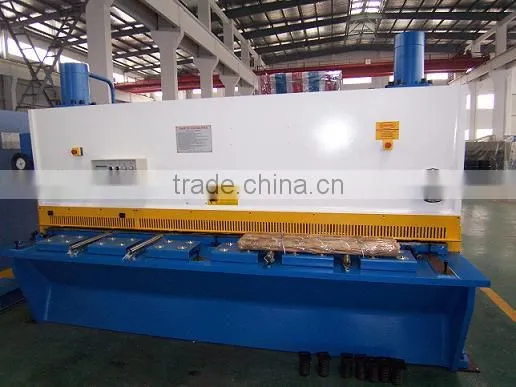

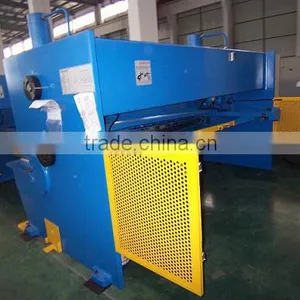

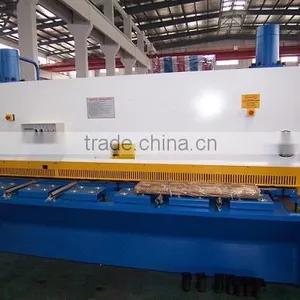

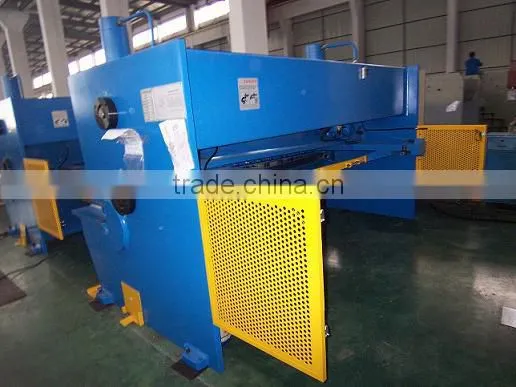

Machine photoes:

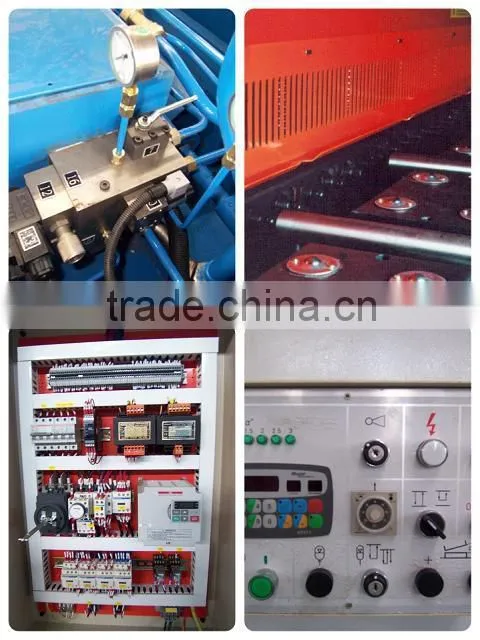

Detailed photoes:
Machine processing:

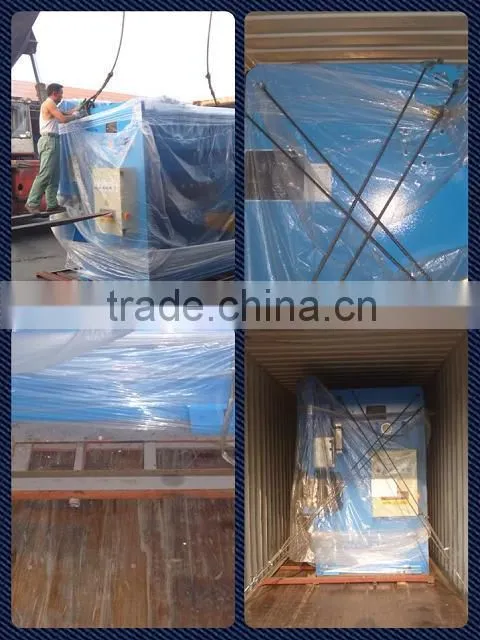

Package and loading contianer
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
