Help Centerthe Best Sale and High Precision China Milling Machine DMC7032G of ALMACO Company
Related Products
-
Advanced and Low Price Chinese Cnc Gantry Milling Machine XKW2420/XHW2420 of ALMACO CompanyNegotiableMOQ: 1 Set -
the Best Sale and Low Price CNC Milling Machine XKW2430/XHW2430 of China of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Best Sale and Advanced and Low Price Milling Machine X6332z of China of ALMACO Company Quality ChoiceUS$ 1,000 - 20,000MOQ: 1 Set
-
the Best Sale and High Speed Turret Milling Machine TM6330A of China of ALMACO CompanyNegotiableMOQ: 1 Set
-
High Speed Knee-type Milling Machine VML5036A/1 of ALMACO CompanyNegotiableMOQ: 1 Set

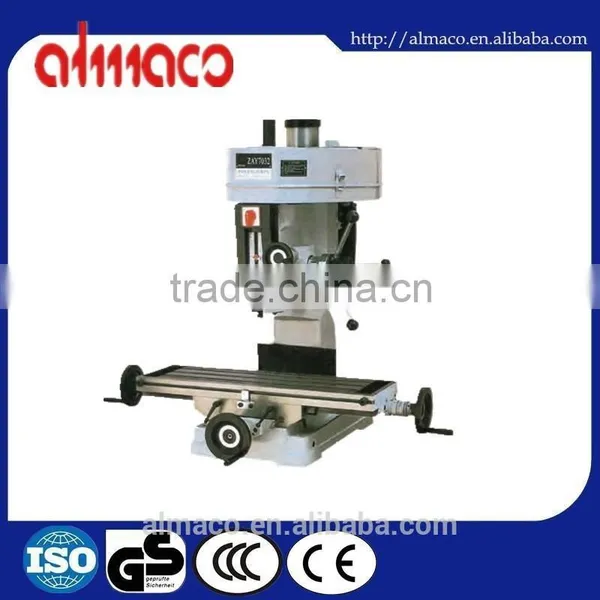

china milling machine DMC7032G
china milling machine DMC7032G
odel |
ZAY7040 ZAY7040G ZAY7040FG |
ZAY7032 ZAY7032G ZAY7032FG |
ZAY7020 ZAY7020G |
|
Drilling capacity |
40mm |
32mm |
20mm |
|
Face milling capacity |
80mm |
63mm |
63mm |
|
End milling capacity |
32mm |
20mm |
14mm,20mm |
|
Distance from spindle nose to table |
450mm, 680mm,440mm |
450mm, 680mm,440mm |
382mm,350mm |
|
Min. distance from spindle axis to column |
193.5mm,272.5mm,260mm |
193.5mm,272.5mm,260mm |
202mm,175mm |
|
Spindle travel |
130mm |
130mm |
120mm,130mm |
|
Spindle taper |
M.T.4 or R8 |
M.T.3 or R8,M.T.4 or R8 |
M.T.3 |
|
Step of spindle |
12,6 |
12,6 |
12,6 |
|
Range of spindle speed |
50Hz |
80-2080,80-1250r.p.m. |
80-2080,80-1250r.p.m. |
80-2080,80-1250r.p.m. |
60Hz |
100-2500,95-1500r.p.m. |
100-2500,95-1500r.p.m. |
100-2500,95-1500r.p.m. |
|
Swing diameter of headstock |
405mm,680mm |
405mm,680mm |
405mm,680mm |
|
Swivel angle of headstock |
horizontally |
3600 |
3600 |
3600 |
perpendicularly |
+900 |
+900 |
+900 |
|
Size of table |
800 x 240mm2, 700x 240mm2 |
800 x 240mm2, 700x 240mm2 |
585 x 190mm2 |
|
Forward and backward travel of table |
175mm |
175mm |
150mm |
|
Left and right travel of table |
500mm, 400mm |
500mm, 400mm |
380mm |
|
Power |
1.1kw (2Hp),1.1kw(0.75Hp) |
0.75kw (1Hp) |
0.75kw (1Hp),0.55kw (1Hp) |
|
Voltage/Fequency |
As custmers requirement |
As custmers requirement |
As custmers requirement |
|
Overall height (Without stand) |
1060mm; 1300mm;1020mm |
1060mm; 1300mm;1020mm |
1060mm; 1300mm |
|
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
