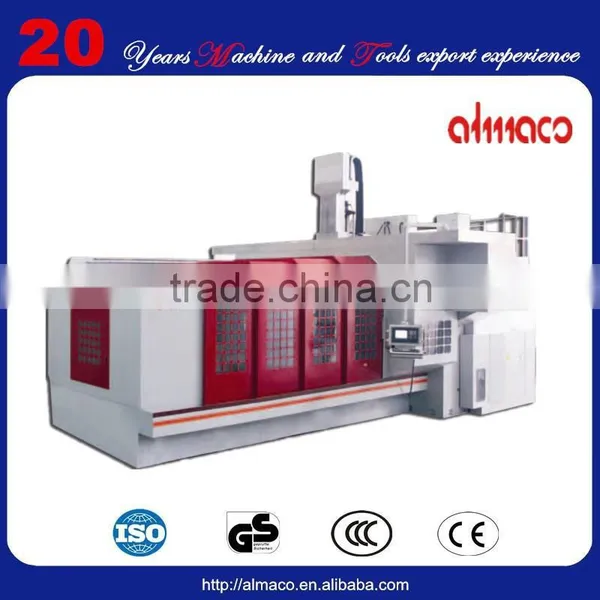

CNC milling machine XKW2430/XHW2430:
Standard functions of ram spindle
The structure model of spindle ram:500x500 square structure.
The spindle can support manual changing of optional milling head,to realize manual machining of pentahedron.
Optional functions of ram spindle
The spindle can support automatic chaning of optional milling head realize automatic machining of pentahedron.
The structure model of spindle ram:500x500 square structure.
And the ram spindle is vertical and horizontal double spindle,the horizontal spindle rotate round C axis and automatically dividing,to realize automatic machining of pentahedron.
Max.power of spindle:22kw;max speed:3000rpm;Min,dividing value of C axis:2.5
The structure model of spindle ram:500x500 square structure.
And the ram spindle is spindle with AC swing axis,the spindle rotate round AC axis and automatically dividing,to realize automatic machining of polyhedron.
Max.power of spindle:25kw;Max speed:3000rpm;Min.dividing value of C axis:2.5

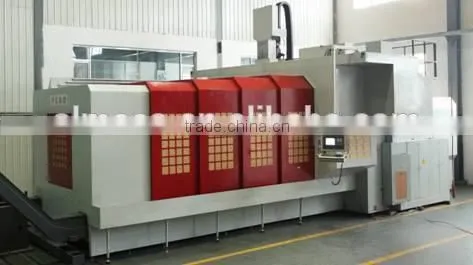

CNC milling machine XKW2430/XHW2430:
| Model | Unit | XKW2430 | |
| XHW2430 | |||
| Table Size | W | mm | 3000 |
| L | mm | 4500-16000 | |
| Machining travel | W | mm | 3500 |
| L | mm | 4800-16500 | |
| H | mm | 1250 | |
| Gantry width | mm | 3700 | |
| Distance from spindle nose to table center | mm | 1450 | |
| Max loading | t/m | 10 | |
| Spindle | Power | kw | Standard vertical spindle:FANUC 30/37(SIMENSE 30/41) |
| Optional vertical spindle:FANUC 22/26;37/45;45/55;60/75;(SIMENSE 22/30;37/51;40/66;60/84) | |||
| Standard horizontal spindle:15 | |||
| Speed | r/min | Standard:10-3000;Optional:20-2000or 10-6000 | |
| Torqlue | N.m | Standard:FANUC 1245(SIMENSE 1050) | |
| Optional:FANUC 560-4151(SIMENSE 840-4580) | |||
| Taper | Standard:BT50;Optional:BT60 | ||
| Speed ratio | Standard:1:1/1:5;Optional:1:1/1:4 or 1:2.5/1:10 | ||
| Feed | Working feed | mm/min | 1000-5000 |
| Rapid feed | mm/min | 10000 | |
| ATC(XHW24) | Capability | 24/32/40/60 | |
| Feedback control of moving axis | Standard:Semi-closure circle;Optional:Full-closure circle | ||
| CNC control system | Standard:FANUC01-MC;Optional:FANUC18-MB/SIEMENSE802D/SIEMENSE840D | ||
| Position and repeatablilty | According to GB/T19362.1-2003 | ||
CNC milling machine XKW2430/XHW2430:
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
