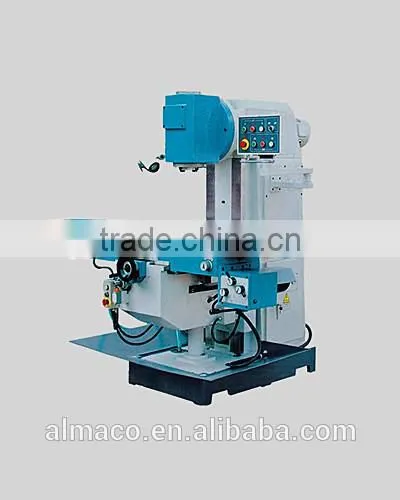

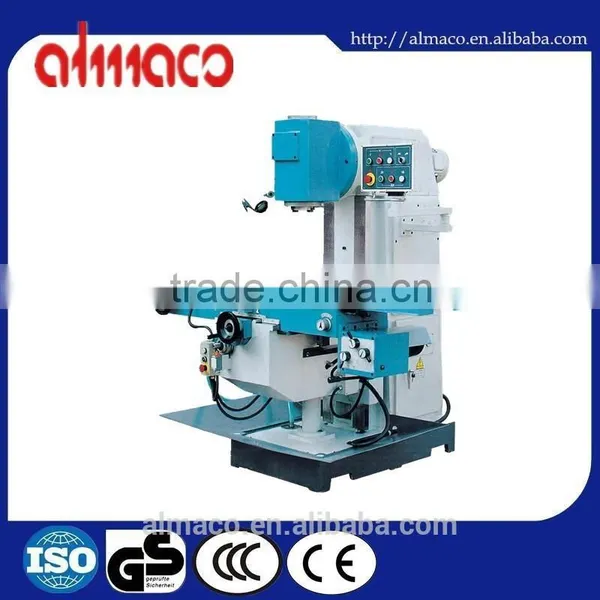

high speed knee-type milling machine VML5036A/1
Features:
Rectangualar table guideways with high stability
Hardened and ground table surface, guideways
Automatic feeds on X,Y axes, motorized lifting and lowering of table on Z axis.
Headstock swivels ±45°
1.It is a vertical milling machine,high power
2.Processing range widely
3.Automatic feed on two axis ,motorized lift on Z axis.
4.Rectangular guideway,hardened treatment
5.The rigidity of yhe spindle,strong cutting force.
6.Equipped with manual lubricating device, the lubrication on the lead screw and guideway
high speed knee-type milling machine VML5036A/1
high speed knee-type milling machine VML5036A/1
| Model | VML5036 | VML5036A | VML5036A/1 | |
| Spindle taper | 7:24 ISO 50 | |||
| Distance from spindle axis to column | 70-515mm | 60-420mm | 60-420mm | |
| Distance from spindle nose to table | 325mm | 320mm | ||
| Range of spindle speed | 60-1700r.p.m (12 steps) | 60-1690r.p.m (12 steps) | ||
| Swivel angle of vertical milling head | ±45° | |||
| Table size (mm) | 1220 x 360 | 1250 x 360 | 1250 x 360 | |
| Table travel | Horizontal | 600mm | 600mm | 1000mm |
| Cross | 250mm | 320mm | 320mm | |
| Vertical | 440mm | 360mm | 380mm | |
| Range of longitudinal, cross travel | 27-720mm/min(8steps) (rapid)1080mm/min |
230-740mm/min(8steps) (rapid)1080mm/min |
||
| Z speed of table | 590mm/min | |||
| T-slot of table(number-width-length) | 3-14-95 | 3-18-80 | ||
| Main motor | 4Kw | |||
| Motor for rapid device of table (X,Y) | Optinal: X.Y power speed |
750W | ||
| Motor for rapid device of table (Z) | manual | 750W | ||
| Overall dimension(mm) | 1800x1850x1880 | 2220 x 1790 x 1880 | ||
| N.W.G.W.(kg) | 1900/2100 | 2200/2400 | ||
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
