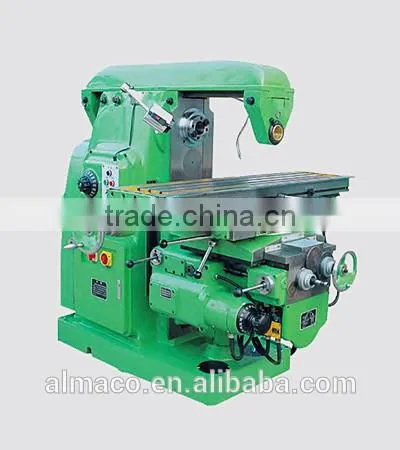

the best sale and low cost universal milling machine HUM32 of china of ALMACO company
- 45 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | ALMACO |
Model Number: | HUM32 | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 7.5kw | Dimension(L*W*H): | 2290*1770*1790mm |
Weight: | 2650kg | Certification: | CE;ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

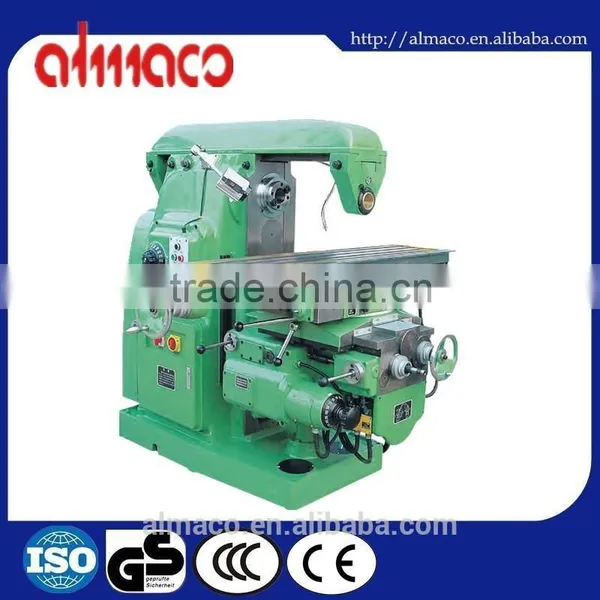

universal milling machine HUM32
Universal Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters,formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel.
The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.
Standard Accessories
Milling arbors
Tools
Draw-bolts
Manuals
Optional Accessories Universal milling head
Rotary table
Machine vice
Milling chuck collets
universal milling machine HUM32
universal milling machine HUM32
Model | HUM32A | HUM32A x 16 | HUM42 | HUM32 | HUM42A | |
Table size | mm | 320 x 1320 | 320 x 1600 | 420 x 1800 | 320 x 1320 | 425x2000/2500 500x2000/2500 |
Longitudinal travel X | mm | 800/780 | 1024/1000 | 1200/1180 | 700/680 | 1250/1600 |
Cross travel Y | mm | 300/280 | 300/280 | 360/350 | 225/240 | 400 |
Vertical travel Z | mm | 410/400 | 410/400 | 460/450 | 410/390 | 400 |
Feed speed steps | 18 | 18 | 18 | 18 | 18 | |
Feed speed ranges: Longitudinal X | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10~1250 |
Cross Y | mm/min | 15-750 | 15-750 | 22.5-1180 | 23.5-1180 | 10~1250 |
Vertical Z | mm/min | 5.7-280 | 5.7-280 | 8.6-420 | 8-394 | 2.5~315 |
Min. distance between spindle center to table | mm | 235-535 | 235-535 | 30-48 | 30-350 | 70~470 |
Spindle speed steps | 18 | 18 | 18 | 18 | 20 | |
Spindle speed ranges | kW | 30-1500 | 30-1500 | 30-1500 | 30-1500 | 18~1400 |
Main motor power | kW | 7.5 | 7.5 | 11 | 7.5 | 11 |
Overall size | cm | 232 x 179 x 172 | 232 x 202 x 209 | 243 x 226 x 194 | 229 x 177 x 179 | 277/327x253x195 |
Net weight | kg | 3300 | 3350 | 5200 | 2650 | 5050/5200 |
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
