the Hot Sale and Advanced Auto-feeding Milling Machine for Sale HVML6332B of China of ALMACO Company
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
the Bset Sale and Low Price Universal Vertical and Horizontal Milling Machine TMN6330H of China of ALMACO CompanyNegotiableMOQ: 1 Set -
the Best Sale and Pow Price China Vertical Knee-type Milling Machine VM5032A of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Hot Sale and Low Cost China Vertical Miliing Machine VM40 of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Best Sale and Low Price China Turret Milling Machine TM6323B of ALMACO CompanyNegotiableMOQ: 1 Set
-
the Best Sale and Advanced Low Cost China Type Turret Milling Machine TM6323B of China of ALMACO CompanyNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
ALMACO
Model Number
HVML6332B
Voltage
380V
Power(W)
3.7kw
Dimension(L*W*H)
1700*1520*2260mm
Weight
1550/1650kg
Certification
CE;ISO9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
auto feeding milling machine HVML6332B
features:
Rectangle table guideway
Harded and groud table surface
Automatic feeds on X, Y axis
Motorized Z axis
Headstock siwel +/-45 degree

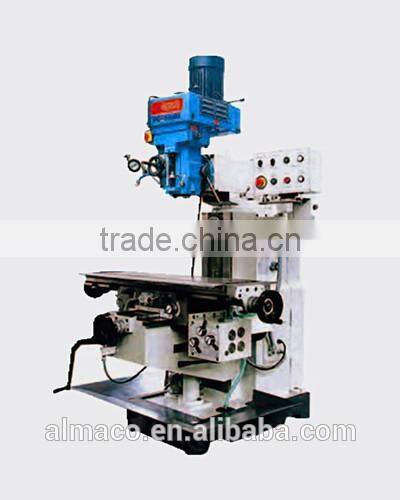

Product show
auto feeding milling machine HVML6332B
Data
auto feeding milling machine HVML6332B
| Model | HVM6328 | HVML6332C | HVML6336/HVML6336G | HVML6332B | |
| Spindle taper | ISO30 | ISO40 | ISO40(V) ISO50(H) | 7:24 ISO40 | |
| Distance from vertical spindle nose to table | 140-500 | 200-600mm | 135-485mm | 150-500mm | |
| Distance from Horizontal spindle nose to table | 0-360mm | 0-350mm | 0-380mm | 0-300mm | |
| Range of spindle speed | 16step 66-4540rpm(vertical) 12step 40-1300rpm(horizontal) |
16step 66-4540rpm(vertical) 12step 60-1350rpm(horizontal) |
16step 66-4540rpm(vertical) 12step 60-1800rpm(horizontal) |
16step 66-4540rpm(vertical) 12step 60-1350rpm(horizontal) |
|
| Vertical quill travel | 127mm | 150mm | 150mm | 150mm | |
| Table size | 1120 x 280mm | 1250 x 320mm | 1250 x 360mm | 1250 x 320mm | |
| Table travel | Longitudinal | 600mm | 800mm | 1000mm | 600mm |
| Cross | 240mm | 300mm | 320mm | 300mm | |
| Vertical | 360mm | 300mm | 380mm | 350mm | |
| Distance from spindle axis to arm | 170mm | 190mm | 230mm | 190mm | |
| Range of longitudinal, cross travel | (8step) 12-370mm/min (rapid 540mm/min) |
(8step) 15-370mm/min (rapid 540mm/min) |
(8step) 15-370mm/min (rapid 540mm/min) |
(8step) 22-55mm/min (rapid 810mm/min) |
|
| Z-speed of table | 560mm/min | 590mm/min | 560mm/min | ||
| T-slot (number-width-distance) | 3-14-63 | 3-14-70 | 3-18-90 | 3-14-70 | |
| Main motor | 2.2W(V/H) | 3.7Kw(vertical) 2.2Kw(horizontal) |
3.7Kw(vertical) 4Kw(horizontal) |
3.7Kw(vertical) 2.2Kw(horizontal) |
|
| Motor for rapid device of table (X, Y) | 370W | 750W | 1100W | 750W | |
| Motor for rapid device of table (Z) | - | 1100W | 900W | 750W | |
| Overall dimension | 1660 x 1340 x 2130mm | 1820 x 1520 x 2270mm | 2220 x 1790 x 2860mm | 1700 x 1520 x 2260 mm | |
| N.W./G.W. | 1250/1350kg | 1770/1900kg | 2340/2500kg | 1550/1650kg | |
our factory
Packaging & Shipping
Company Information
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
