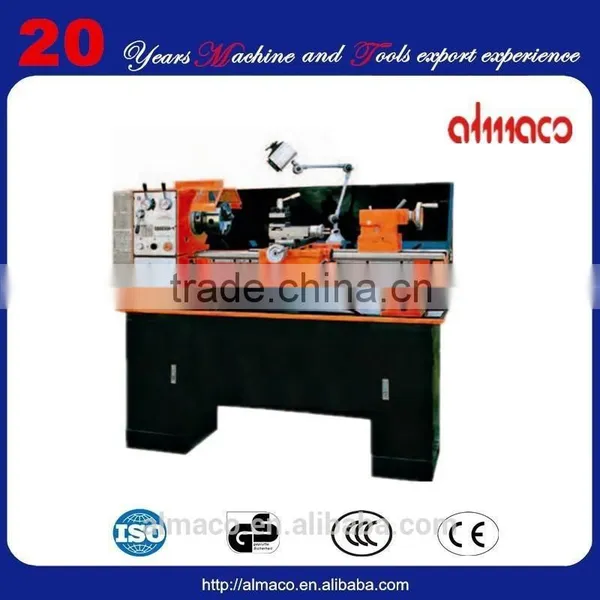

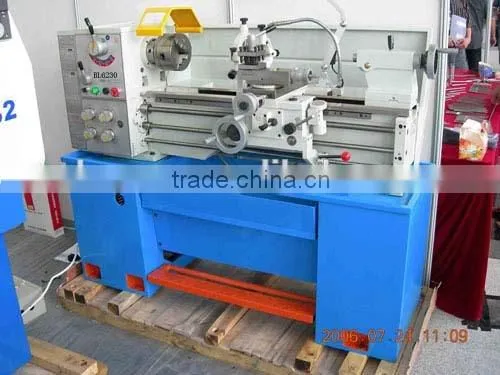

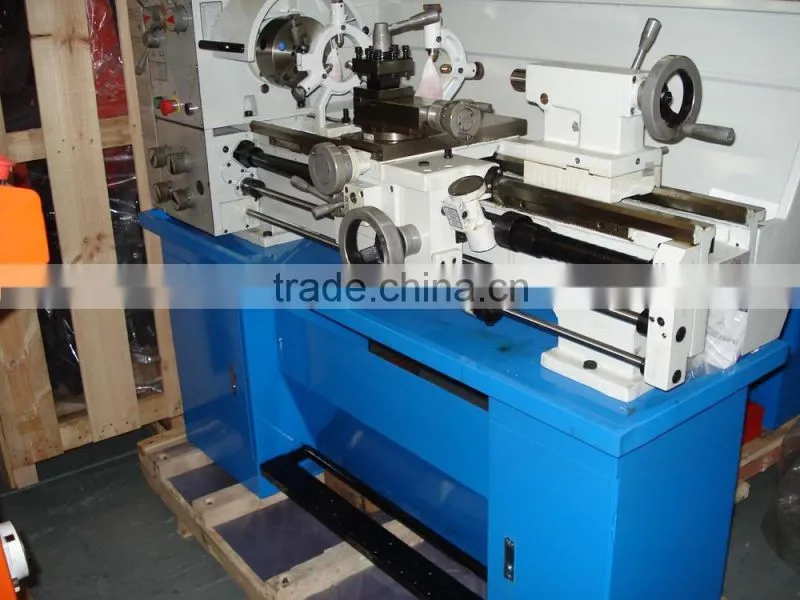

China Bench Lathe(bl6230a)
lathe machine main Feature:
·Lathe bedway is made of high tensile cast iron in rigid structure,Induction harden and ground
·The main spindle is equipped with 2 precision taper roller bearings
·Strong power motor suited for heavy duty cutting
|
Standard Accessories: 3-jaw chuck ·Change gears ·Tool box and tools ·Oil gun ·Dead Centers ·Reduction sleeve MT5/3 ·Splash Guard ·Oil tray ·Foot Stands |
Optional Accessories: 4-jaw chuck ·Face plate ·Steady rest ·Follow rest ·Lamp ·Brake system ·Coolant system ·Live center ·Leadscrew cover ·Quick change tool post ·Digital readout system ·Chuck cover |
| Asunder packaging size and weight | |||
| Model | Packing Dimensions | Net Weight | Gross Weight |
| bl6230a(bl6230a-1) ×750 | 1480×750×730mm | 460kg | 530kg |
| bl6230a(bl6230a-1) ×910 | 1680×750×730mm | 460kg | 530kg |
| Left Stand | 600×390×350mm | 28kg | 35kg |
| Right Stand | 600×390×280mm | 22kg | 28kg |
| 12501 | |
| Model | bl6230a(bl6230a-1) |
| max.swing over bed | 310mm |
| max.swing over cross slide | 180mm |
| max.swing in gap | 450mm |
| distance between centers | 710/910mm |
| spindle bore | 38mm |
| taper of spindle bore | m.t.#5 |
| range of soindle feeds | 65-1810rpm |
| range of longitudinal feeds | 0.0527-1.2912mm/rev |
| range of cross feeds | 0.011-0.276mm/rev |
| range of metric threads | 0.4-7mm |
| range of inch threads | 4-60tpi |
| max size of tool shank | 14x14mm |
| taper of tailstock bore | m.t.#3 |
| power of motor | 1.1kw/1.5kw |
| old model | cq6230a(cq6230a-1) |
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
