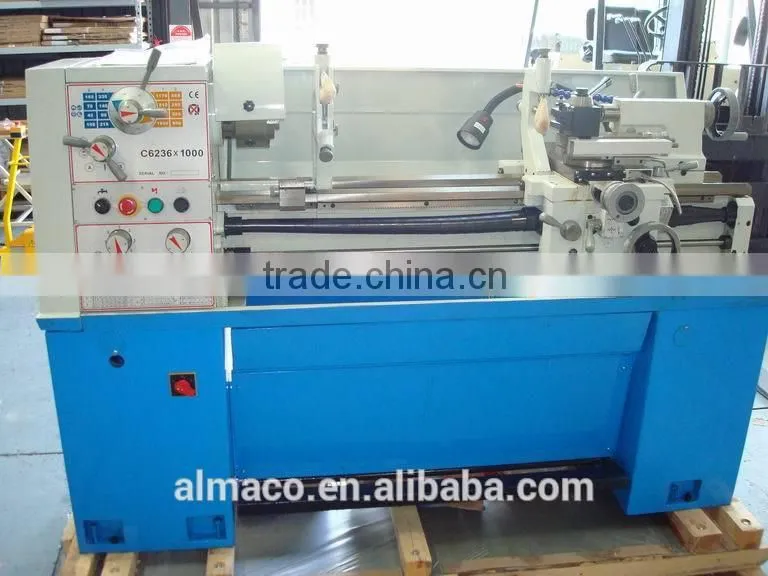

Enging and lathe machine C6236:
Standard accessories:
3 jaw chuck, 4 jaw chuck,steady rest,follow rest,face plate,coolant pump,work light,chang gears,dial indicator,dead center and center sleeve,splash guard,chip pan,toolbox with tools.
Optional accessories:
CE chuck guard with micro switch,celeadscrew cover,toolpost guard,taper turning attachment,digital read out,right handwheel is alternative.

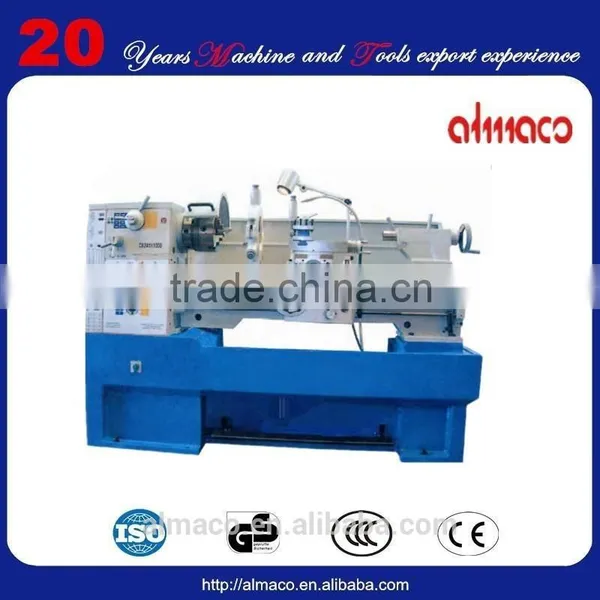

Engine and lathe machine C6236:
Engine and lathe machine C6236:
| Model | C6236 |
| Swing over bed | 14''(360mm) |
| Swing over cross slide | 215mm(8½'') |
| Swing in gap diameterxwidth | 540(21¼'')x190(7½'') |
| Height of center | 185( 7½'' ) |
| Distance between centers | 1000mm(40'')/1500mm |
| Width of bed | 250mm(10'') |
| Cutting tool max section | 20x20mm(¾''x¾'') |
| Total travel of cross slide | 210mm(8½'') |
| Total travel of top slide | 140mm(5 ½'' ) |
| Spindle bore | 52mm(2'') |
| Spindle morse taper in bore | M.T.No.6 |
| Spindle speeds number | 16 |
| Spindle speeds range | 45-1800R.P.M |
| Threads imperial pitches | 2-72T.P.I(45Nos) |
| Threads metric pitches | 0.2-14mm(39Nos) |
| Longitudinal feeds imperial | 0.002''-0.067''/Rev(17Nos) |
| Longitudinal feeds metric | 0.05-1.7mm/Rev(17Nos) |
| Cross feeds imperial | 0.001''0.0335''/Rev(17Nos) |
| Cross feeds metric | 0.025-0.85mm/Rev(17Nos) |
| Range of module pitches | 0.3-3.5MP(18Nos) |
| Range of diameter pitches | 8-44DP(21Nos) |
| Total travel of tailstock quill | 50mm(2'') |
| Tailstock quill diameter | 120mm(4 ¾'' ) |
| Taper in tailstock quill | M.T.No.4 |
| Spindle drive motor | 4P/8P,3PH3.3/2.2KW OR 4.5/3KW |
| Coolant pump motor | 4P,3PH 90W |
| Packing size(LXWXH) | 206(81'')(256)X90(35 7/16'')X164CM(64 9/16'') |
| Net weight | 1300KG OR 1350KG |
| Gross weight | 1500KG OR 1555KG |
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
