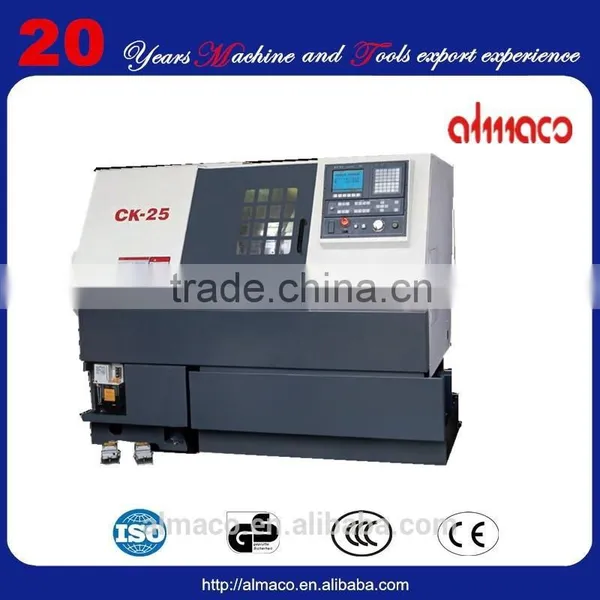

CNC lathe machine CK25
CK7156/20/30 CNC lathes are the latest products manufactured with advanced thchnologies licensed by Daewoo Heavy Industries Ltd. (South Korea). Its strength, dynamic and static rigidity, mechanics of main parts, safety device and cooling system are all designed according to Turning Center. The strengthed casting base and exclusive slant bed provide excellent rigidity and dampening, coupled with convenient chip removal. A high precision through-hole spindle driven by powerful AC main motor feature the stability and low noise during operation. Key parts like bearing on the ball screw and main spindle are all famous foreign products, ensuring the higher machining accuracy and longer part life. The multi-station turret indexed fast and nonstop bi-directionally with a high repeatability.
The CNC system is optional with FANUC0-TC, 0-TDII or others as required. The hydraulic parts, lubrication unit and chuck are all famous domestic or foreign products as well.
The new designed CK7516/20/25/30 feature easy panel operation and complete protection. They are undoubtedly the most powerful products in their class due to their excellent accuracy and stability.
Stardard accessories:
1.Total sealed fencing system
2.Lubrication system
lid hydraulic chuck
4.Optional manual
5.Optional accessories:
6.Hollowed hydraulic chuck
7.Automatic conveyings

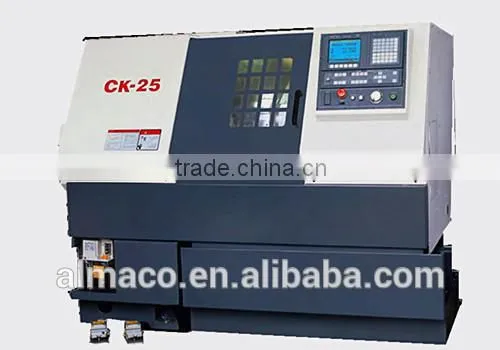

CNC lathe machine CK25
CNC lathe machine of china CK25
| Model | 32905 | 32906 | 32907 | 32908 | 32909 | |
| CK40 | CK25 | CK25A | CK20 | CK20B | ||
| Max.swing over bed | mm | Φ750 | Φ500 | Φ500 | 410 | 410 |
| Max.cutting dia.for disc parts | mm | Φ750 | Φ300 | Φ300 | 260 | 260 |
| Max.cutting dia. for axe parts | mm | Φ350 | Φ250 | Φ250 | 200 | 200 |
| Maximum turned length | mm | 870 | 400 | 400 | 350 | 350 |
| Max.cross trave (X) | mm | 370 | 180 | 180 | 180 | 180 |
| Max.omgitudina trave (Z) | mm | 1050 | 500 | 500 | 420 | 420 |
| Rapid feed for axis X | m/min | 10 | 10 | 10 | 10 | 9 |
| Rapid feed for axis Z | m/min | 20 | 20 | 20 | 15 | 15 |
| Max.speed of spindle | rpm | 100-2000 | 1153000 / chuck 200mm | 5000 max | 1003000 / chuck 200 4000 / chuck 160 |
6000 |
| Diamrter of spindle thru hoe | mm | Φ105 | Φ62 | Φ62 | Φ63 | Φ56 |
| Spinde nose | Φ220 | Φ170 | A2-6 | A2-5 | A2-5 | |
| Hydrauic chuck | mm | 12" | 8" | 8" | 8" | 8" |
| Number of toos | 12(hydraulic) | 8 | 8 | 8 | 8 | |
| Outside dia.Of cutting too shank | mm | 25x25 | 25x25 | 25x25 | 20x20 | 25x25 |
| Inner dia. Of cutting too shank | mm | Φ32 | Φ32 | Φ32 | Φ32 | Φ32 |
| Taistock seeve dia. | mm | Φ100 | Φ63 | Φ63 | Φ63 | Φ63 |
| Taistock seeve trave | mm | 210 | 115 | 115 | 100 | 100 |
| taistock center type | M.T.No.6 | MT4 | MT4 | MT4 | MT4 | |
| Min.Input | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
| Servo motor power for x axis | NM | 15 | 7 | 7 | 7 | 7 |
| Servo motor power for z axis | NM | 22 | 7 | 7 | 7 | 7 |
| Slant bed integrated with stand | 30 | 30 | 30 | 60 | 60 | |
| Guide ways X & Z | Precision linear guides | |||||
| Repeatability (X/Z) | 0.005 / 0.006 | 0.005 / 0.006 | 0.005 / 0.006 | 0.005 / 0.006 | ||
| Surfacce roughness | ≤Ra0.8μm (Nonferrous) ≤Ra1.6μm (Stee part) | |||||
| Capacity for cooant | L | 150 | 150 | 100 | 100 | |
| Main motor power | KW | 15 | 7.5 inverter | 7.5/11 srrvo | 5.5 inverter | 5.5/7.5 srrvo |
| Overa dimension mode (LxWxH) | cm | 337x225x196 | 195x165x168 | 243x127x166 | ||
| Net weight | kg | 5400 | 3400 | 2700 | ||
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
