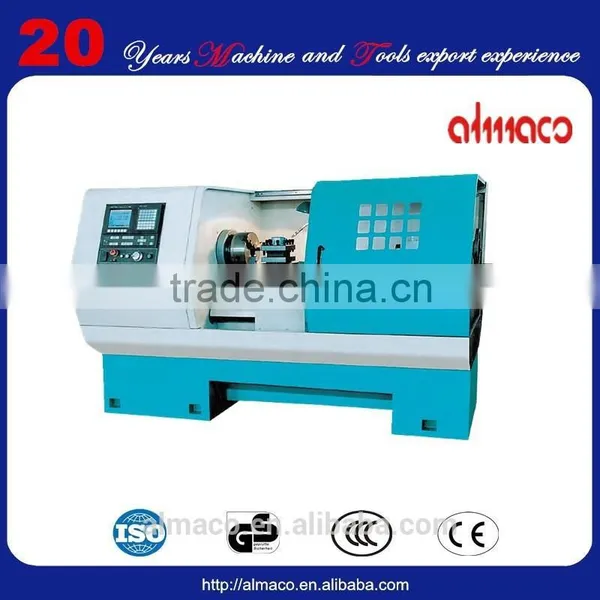

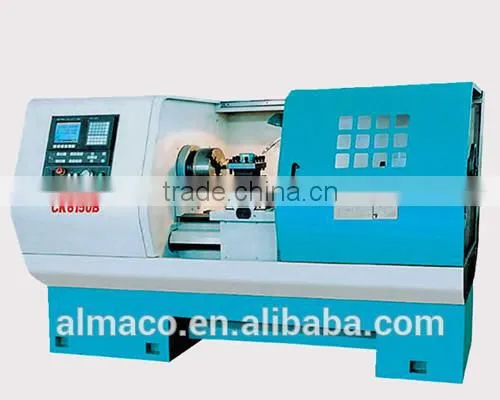

chinese CNC lathe machine LNC6166:
The machine adopts ISO international Code. Keyboard Manual Data Input, it is also provided with program of power cut-off protection and the functions of automatic diagnosis, and with Rs232 interface.
Longitudinal and cross feeds are effected by ball leadscrews.
Either vertical or horizontal 4-station or 6 station tool post or gang tools can be selected, the post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
The spindle bore size is 80mm. The spindle system is high in the rigidity and accuracy, there is no vibration when turning with a cutting depth of 8mm.
Variable spindle speed can be programmed as two rangs, that is high one and low one.
chinese CNC lathe machine LNC6166:
chinese CNC lathe machine LNC6166:
| Items | LNC6140B | LNC6150B | LNC6½66 |
| Max. swing over bed | Φ400mm | Φ500mm | Φ660mm |
| Max. length of workpiece (Two centers) | 750/1000/1500/2000/3000mm | 750/1000/1500/2000/3000mm | 750/1000/1500/2000/3000mm |
| Max. swing over slide | Φ210mm | Φ310mm | Φ430mm |
| Max. cross travel (X) | 250mm | 300mm | 365mm |
| Spindle bore | Φ80mm | Φ80mm | Φ105mm |
| Taper bore of spindle | M.T.No.7 | M.T.No.7 | Φ113 1:20 |
| Spindle nose | A2-8 | A2-8 | Cam lock type |
| Range of spindle speeds | 100-2000 rpm | 200-1800 rpm,25-250 rpm | 20-150, 150-433, 433-130 rpm |
| Rapid feed for Axis X | 8m/min | 8m/min | 10m/min |
| Rapid feed for Axis Z | 10m/min | 10m/min | 8m/min |
| Number of tools | 4-way, 6-way or gang tools | 4-way, 6-way or gang tools | 0.001mm |
| Size of tool shank | 25 x 25mm | 25 x 25mm | 4-way, 6-way or gang tools |
| Tailstock sleeve dia. | Φ75mm | Φ75mm | 25 x 25mm |
| Tailstock sleeve travel | 150mm | 150mm | Φ75mm |
| Taper of tailstock quill | M.T.No.5 | M.T.No.5 | 150mm |
| Min. input | 0.001mm | 0.001mm | M.T.No.5 |
| Power of main motor | 5.5KW | 7.5KW | 7.5KW |
| Net weight | 2300/2600/2850/3100/3600 | 3000/3300/3550/3800/4200 | 3500/3800/4050/4300/4700 |
| Old model | CK6140B | CK6150B | CK61/266 |
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
Our engineer team
*******************************************************************************************************
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
