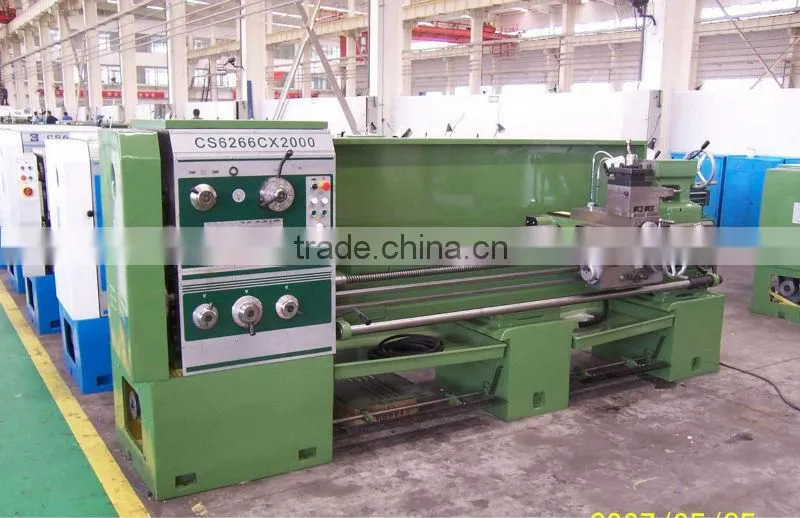

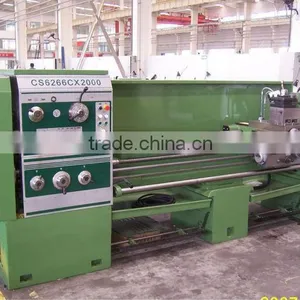

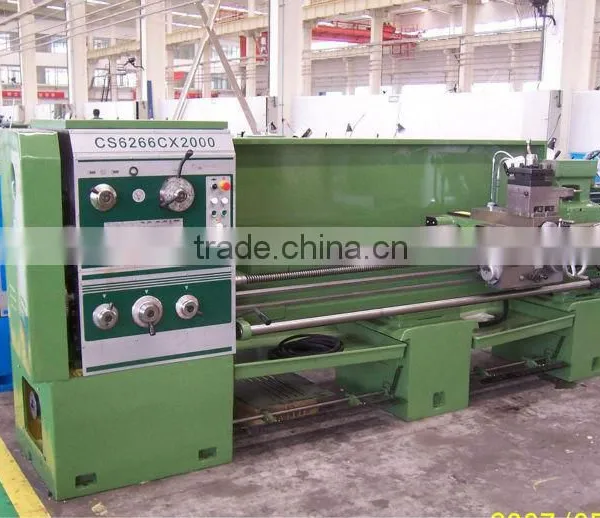

Big bore Gap lathe/CS6266C/BAOJI LATHE/in store/Hot sale Quality Choice

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai Port
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Semi-Automatic	Max. Swing Diameter:	800	Place of Origin:	China
Brand Name:	Almaco	Model Number:	LY6280Y	Voltage:	380
Power(W):	7.5Kw	Dimension(LWH):	482013002100mm	Weight:	4700Kg
Certification:	ISO 9001	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

CY Gap lathe
Precision ground
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod

Feature:
Precision ground
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapid traverse (optional)
Main spindle supported at 2 points with precision
taper roller bearings

STANDARD ACCESSORIES
3-jaw chuck 250mm
Driving plate
Center & center sleeve
Oil gun
Wrenches
Operation manual

OPTIONAL ACCESSORIES
Steady rest
Follower rest
4-jaw chuck 320mm
Face plate
Thread dial
Longitudinal automatic trip
Live center
Quick change toolpost
Taper copy ruler
4-position longitudinal antomatic trip

SPECIFICATIONS		22606	22607	22608
		CY6 1/2 60	CY6 1/2 66	CY6 1/2 80
	Swing over bed	600 (24)	660 (26)	800 (32)
CAPACITIES	Swing over cross slide	400mm	460mm	600mm
	Swing in gap	800mm (31 1/2)	860mm (33 4/5)	1000mm (39)
	Valid length of gap	280mm (11)
	Max Length of work piece	1000mm (39 1/3) 1500mm (59) 2000mm (78 3/4) 3000mm (118)
	Width of bedways	400mm (16 1/4)
HEADSTOCK	Spindle nose	ISO-C11 or ISO-D11
	Spindle bore	Φ103mm (4)
	Range of spindle speeds, Number	9-1275rpm/18, 16-81rpm/6
FEEDS	Max. travel of compound rest	110mm
	Max. travel of cross slide	325mm
	Longitudinal leadscrew pitch	12mm or 2TPI
	Section of tool	32 x 32mm
	Longitudinal feeds range	72kinds 0.073-4.066mm/rev
	Cross feeds range	72kinds 0.036-2.033mm/rev
	Metric threads range	72kinds 0.5-112mm/rev
	Inch threads range	72kinds 56-1/4 t/inch
	Module threads range	36inds 0.5-7mm
	Diametral threads range	36kinds 56-4Dp
CARRIAGE	Dia. of tailstock sleeve	Φ90mm
	Morse taper of tailstock sleeve	Morse No.6
	Travel of tailstock sleeve	150mm
	Cross adjustment range	10mm
TAILSTOCK	Power of main motor	7.5kw 10kw
	Power of quick-travel motor	250w
MOTOR	Power of coolant pump	90w
	Power of supply	220V, 380V, 420V (50Hz, 60Hz)
Packing Size (L x W x H)	1000mm	2820 x 1300 x 2100mm
	1500mm	3320 x 1300 x 2100mm
	2000mm	3820 x 1300 x 2100mm
	3000mm	4820 x 1300 x 2100mm

N.W / G.W	1000mm	2900/3500kg	3000/3500kg	3150/3750kg
	1500mm	3150/3750kg	3250/3850kg	3400/4000kg
	2000mm	3400/4050kg	3500/4150kg	3650/4300kg
	3000mm	3800/4450kg	3900/4550kg	4050/4700kg

Contact Us

Almaco Machine Tool Co., Ltd.: Contact nameBill Jin; Phone0086-0513-81105900; Address3/F, No. 20# CBD, No.8 Taoyuan RD, Nantong, Jiangsu, P. R. C, Nantong,Jiangsu
