Single Column Vertical Lathe

Name: Single Column Vertical Lathe
Brand: ALMACO
SKU: 115154499
Availability: InStock

US$ 20,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Almaco Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 800-2000mm

Place of Origin Jiangsu, China

Brand Name ALMACO

Model Number CA5116

Voltage 380V

Power(W) 30KW

Dimension(L*W*H) 2360*2470*3480mm

Weight 9Ton

Certification ISO 9001,CE

After-sales Service Provided Engineers available to service machinery overseas

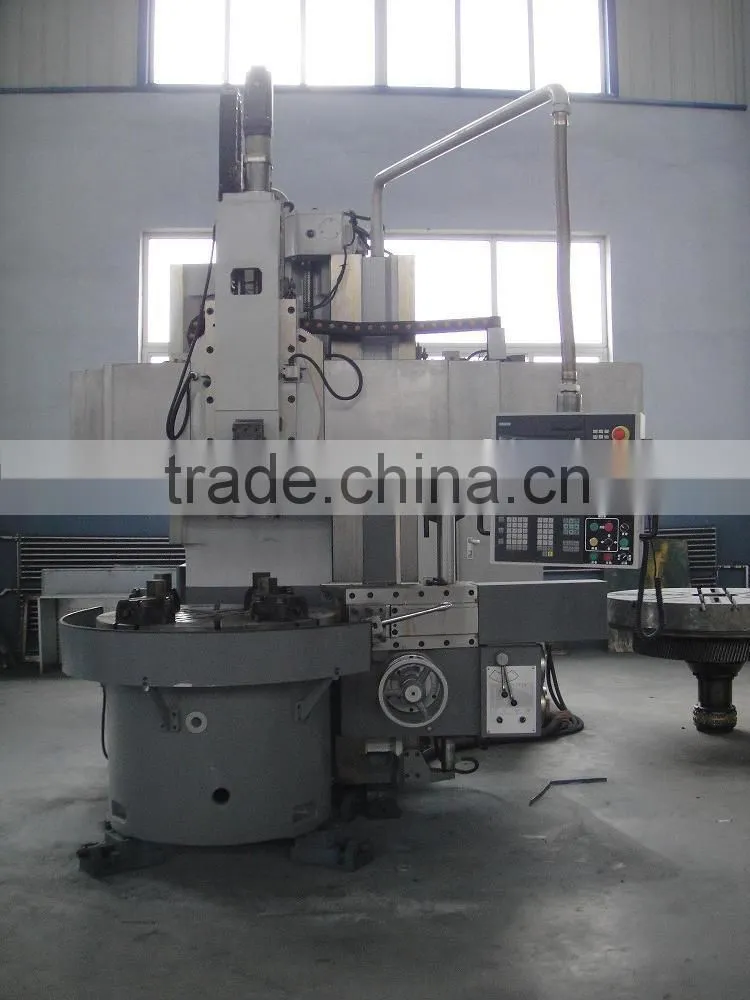

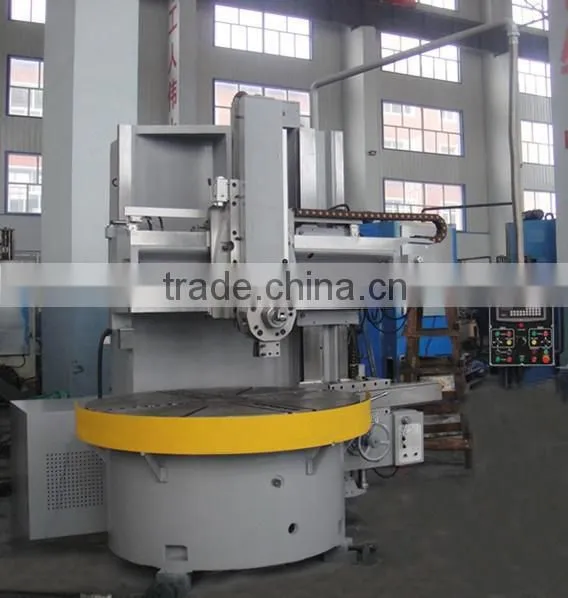

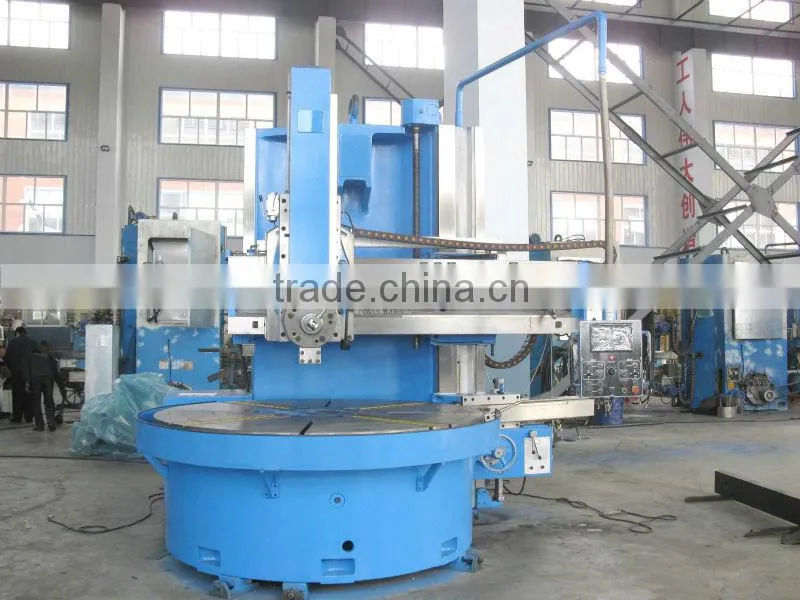

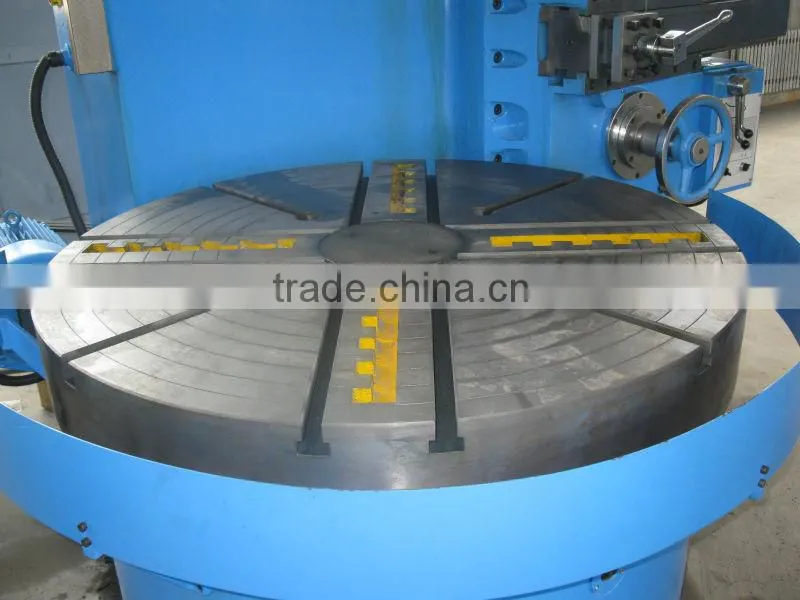

Single column Vertical Lathe with DRO

Brief Introduction:

This model machine tool is the normal vertical lathe machine, have a vertical and lateral knife tool.

For high speed steel tools and hard metal tools processing of black metal, nonferrous metal and some nonmetal materials.

Suitable for following processing:

1. Specifications:

No.	Item	C5112A	C5116A	C5120A	C5123A
1	Max. vertical tool head turning diameter: mm	1250	1600	2000	2300
2	Max. Lateral tool head turning diameter: mm	1100	1400	1800	2000
3	Working table diameter: mm	1000	1400	1800	2000
4	Max. job height: mm	1000	1200	1250	1350
5	Max. job weight: T	3.2	5	8	10
6	Working table revolving speed range: r/m	6.3~200	5~160	3.2~100	2.5~80
6	Working table revolving speed degrees	16	16	16	16
7	Vertical, Lateral tool head feeding range: mm/min	0.8~86	0.8~86	0.8~86	0.8~86
7	Vertical, Lateral tool head feeding degrees:	12	12	12	12
8	Max. vertical tool head cutting force: N	20000	25000	25000	25000
9	Max. Lateral tool head cutting force: N	20000	20000	20000	20000
10	Total cutting force: N	35000	40000	40000	40000
11	Vertical tool head horizontal stroke: mm	700	915	1115	1265
11	Vertical tool head vertical stroke: mm	650	800	800	800
12	Lateral tool head horizontal stroke: mm	630	630	630	780
12	Lateral tool head vertical stroke: mm	900	900	1150	900
13	Beam stroke: mm	650	650	890	1000
14	Max. rotation degree of vertical tool head:	30	30	30	30
15	Vertical, Lateral tool head quick moving speed: m/m	1.8	1.8	1.8	1.8
16	Beam promotion and demotion speed: m/m	0.44	0.44	0.44	0.44
17	Main motor power: kw	18.5	22	22	30
18	Feed motor power: kw	1.3/1.7	1.3/1.7	1.3/1.7	1.3/1.7
19	Overall dimension: LWH	2300x2277 x3403	2660x2660 x3528	3135x3070 x3910
20	Overall weight: T	8	12	17	18
