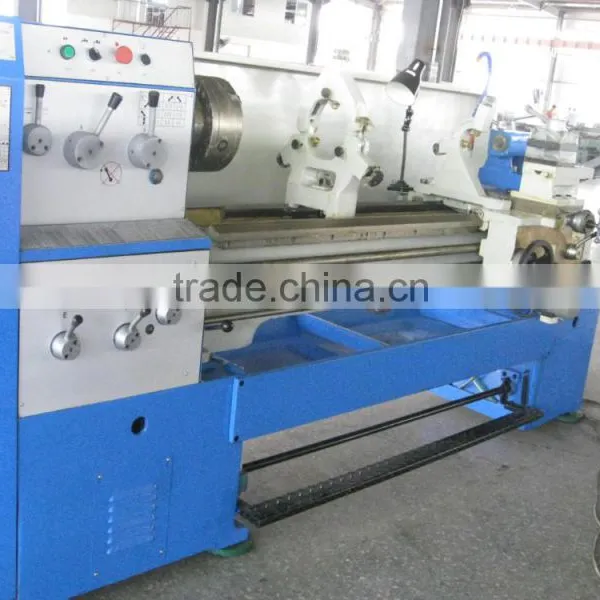

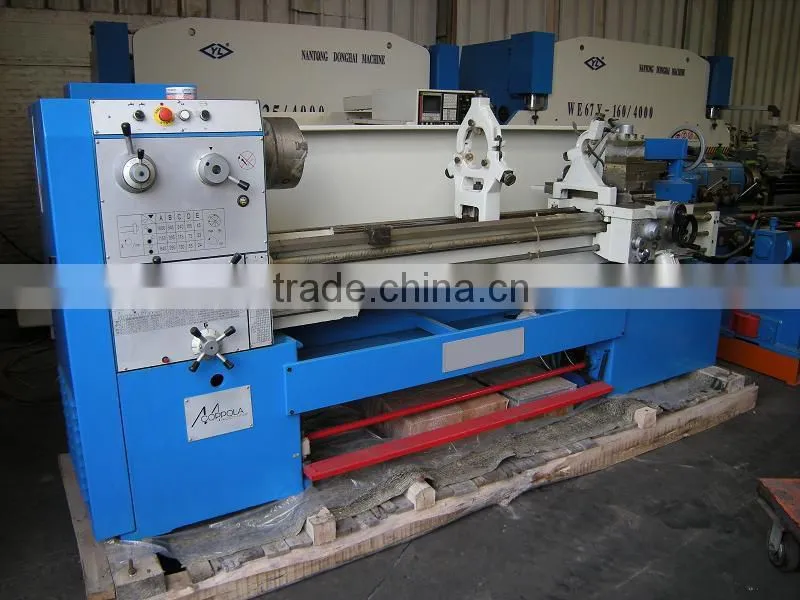

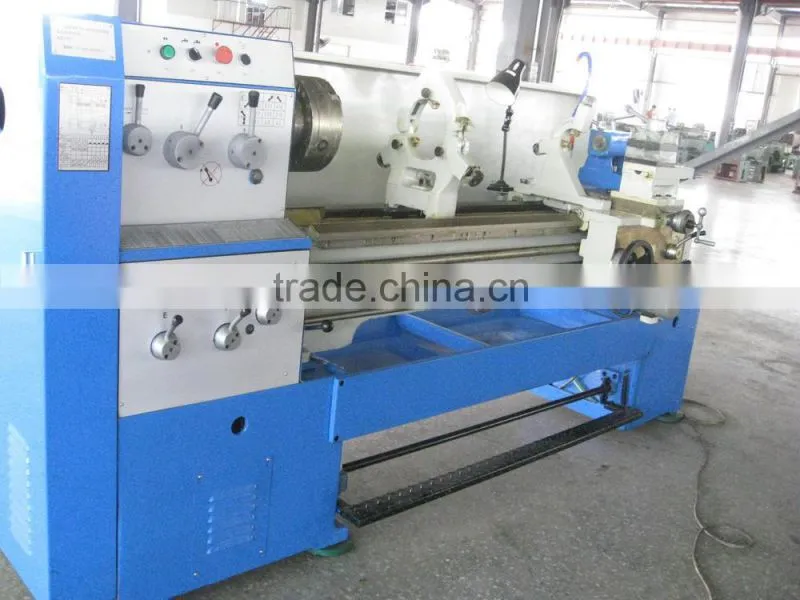

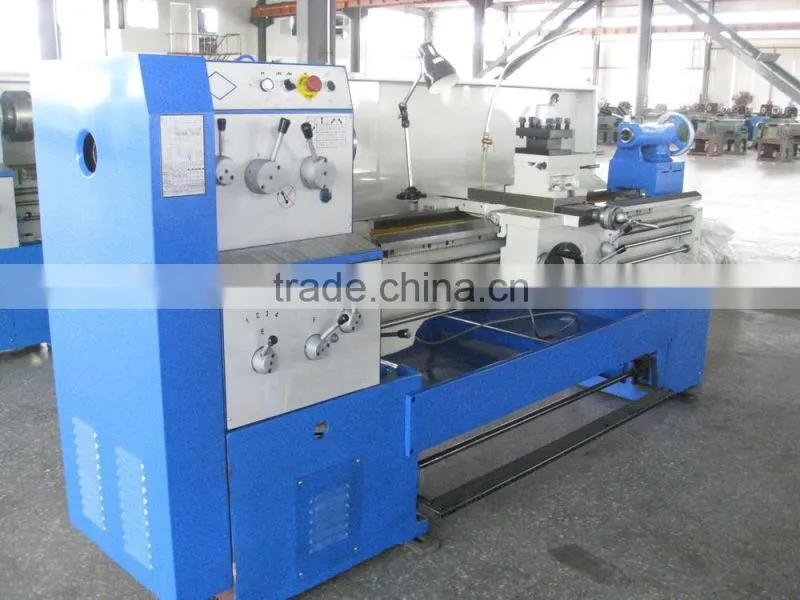

Universal lathe machine(C6250C)

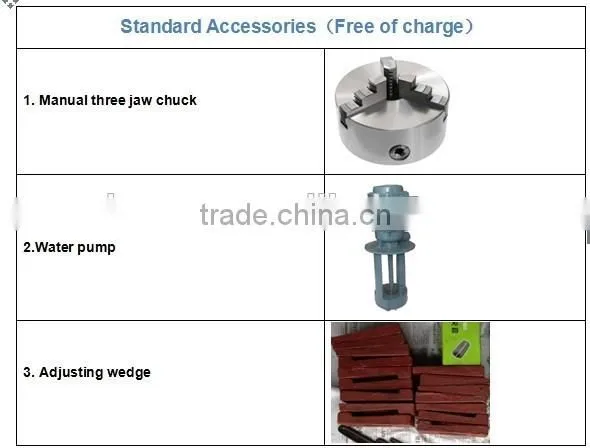

Standard Accessories
3-jaw chuck
center¢er sleeve
Wrenches
Oil gun
Optional Accessories
Steady rest
Follow rest
4-jaw chuck
Face plate
| Item | C6250C | |
| Capacity | Max.swing over bed | 500 |
| Ma.swing over cross slide | 330 | |
| Max.swing over gap | 660 | |
| Center distance | 750.1000.1500mm | |
| Bed width | 360mm | |
| Spindle | Spindle hole | 52mm |
| Spindle nose | C6 | |
| Spindle taper | MT6 | |
| Spindle speeds(Number) | 40-1400RPM(9 Steps)1600rpm | |
| Feeds | Metric threads range(Kinds) | 0.25-14mm(19kinds) |
| Inch threads range(Kinds) | 2-40/inch | |
| Moundle threads range(Kinds) | 0.5-3.5mm(11kinds) | |
| Carriage | Cross slide travel | 180mm |
| Compound rest travel | 95m | |
| Cross-section size of toolshank | 20x20mm² | |
| Tailstock | Taper of tailstock sleeve | MT4 |
| Dia.of tailstock sleeve | 65MM | |
| Travel of tailstock sleeve | 140MM | |
| Main motor power | 4KW | |
| Packing size(LxWxH) | ||
| Center distance:750mm | 2220x1150x1590mm | |
1000mm |
2470x1150x1590mm | |
| 1500mm | 2970x1150x1590mm | |
| Net weight/Gross weight(Kgs) | ||
| Center distance:750mm | 1500/2150 |
|
| 1000mm | 1600/2250 | |
| 1500mm | 1750/2400 | |
All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
Special dimensions available according to request.
We have many certificates of our Products.
Accessories replacement if our product itself has quality problems during one year after receiving.
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 40 or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competi-tive prices and quick & thoughtful after-sale service to cooperate with you.
