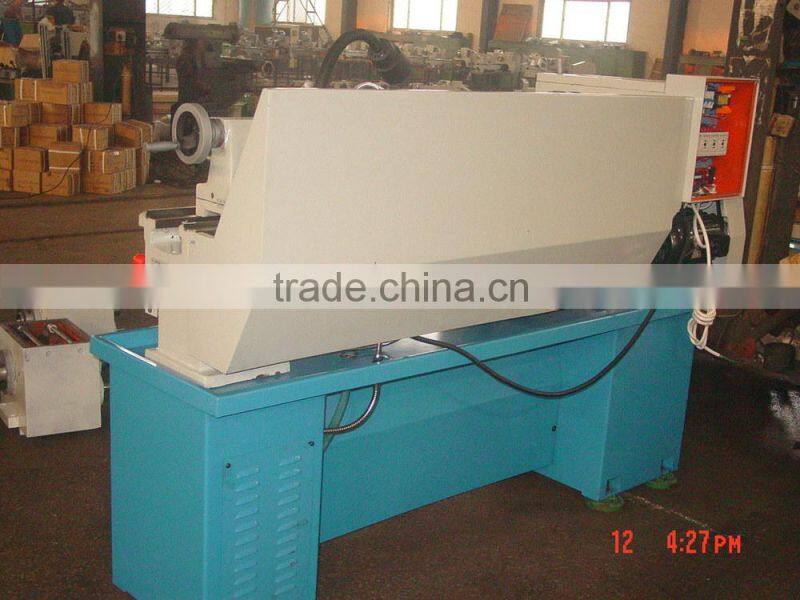

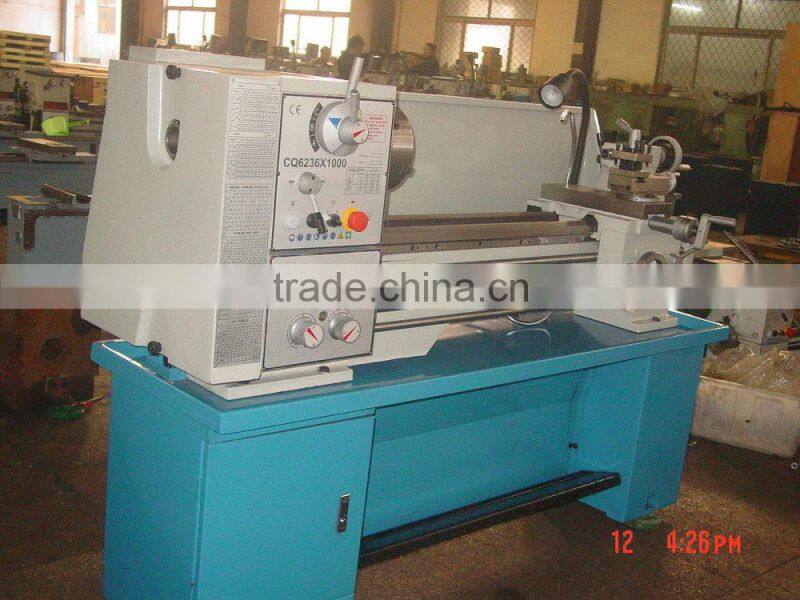

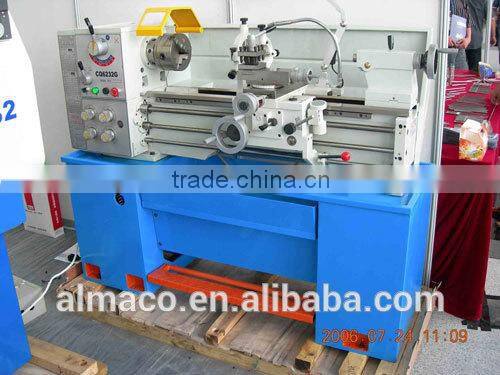

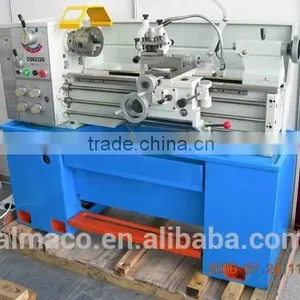

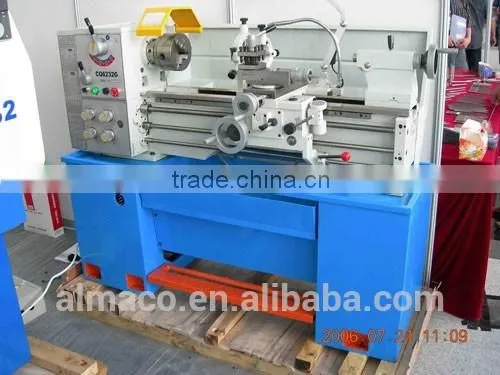

Help CenterThe Advanced Chinese Engine Lathe CQ6236 of ALMACO Company
Related Products
-
Universal Lathe Machine(C6250C)US$ 4,980 - 5,620MOQ: 1 Set -
The China Best Sale and Cheap Cnc Oil Country LatheUS$ 38,000 - 59,300MOQ: 1 Set
-
China Profect and Low Price Deep Hole Machine DDB25 of ALMACO CompanyNegotiableMOQ: 1 Unit
-
China Profect and Low Price Deep Hole Drilling & Boring Machine DDB35 of ALMACO CompanyNegotiableMOQ: 1 Unit
-
China Profect and Low Price Deep Hole Honing Machine 2M2135 of ALMACO CompanyNegotiableMOQ: 1 Unit
chinese engine lathe CQ6236:
Product feature:
Hardened and ground bedways
12 speeds all geared headstock
2.4kw(3PH)motor
Foot brake giving rapid braking
Emergency stop button equipped on the front of headstock
jog button for easy gear engagement and inching spindle
Extra safety switch shuts down machine automatically when changing belt or gear.
Chinese Engine lathe CQ6236:
chiinese engine lathe CQ6236:
| 32501 | |||
| Model | GH-1440K(CQ6236) | ||
| General capacity | Max.swing over bed | mm | 356(14'') |
| Max.swing over carriage | mm | 210(8-1/5'') | |
| Max.swing over gap | mm | 508(20'') | |
| Width of bed | mm | 260(10-1/5'') | |
| Distance between centers(Two centers) | mm | 750(30'')/1000(40'') | |
| Main spindle | Taper of spindle bore | MT-5 | |
| Diameter of spindle bore | mm | 40(1-1/2'') | |
| Number of spindle speeds | 12 | ||
| Range of spindle speeds | rpm | 40-1800 | |
| Spindle nose | D4 | ||
| Threading & feeding | Metric threads | 37kinds/(0.4-7mm) | |
| 23kinds/(0.45-7.5mm) | |||
| Whit-worth threads | 28kinds/(4-56T.P.I'') | ||
| 40kinds/(4-112T.P.I'') | |||
| Range of longitudinal feeds | mm/r | 0.043-0.653(0.0012''-0.0294'') | |
| Range of cross feeds | mm/r | 0.024-0.359(0.0004''-0.0103'') | |
| Leadsrew | Diameter of leadscrew | mm | 22(7/8'') |
| Pitch threads of leadscrew | 4mm or 8T.P.I | ||
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4'') |
| Diameter of tailstock quill | mm | 45(1-25/32'') | |
| Taper hole of tailstock quill | MT-3 | ||
| Power | Main motor power | Kw | 2.4Kw(3PH),3PH,4P,60Hz,230V |
| Coolant pump motor power | Kw | 004Kw(0.055HP) | |
| Overall dimemtions of lathe(L*W*H) | mm | 1900*710*1170 | |
| Packing size of lathe(L*W*H) | mm | 1900*760*1435 | |
| Net weight | kg | 1200(2650Ibs) | |
| Gross weight | Kg | 1300(2850Ibs) | |
Chinese engine lathe CQ6236:
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
