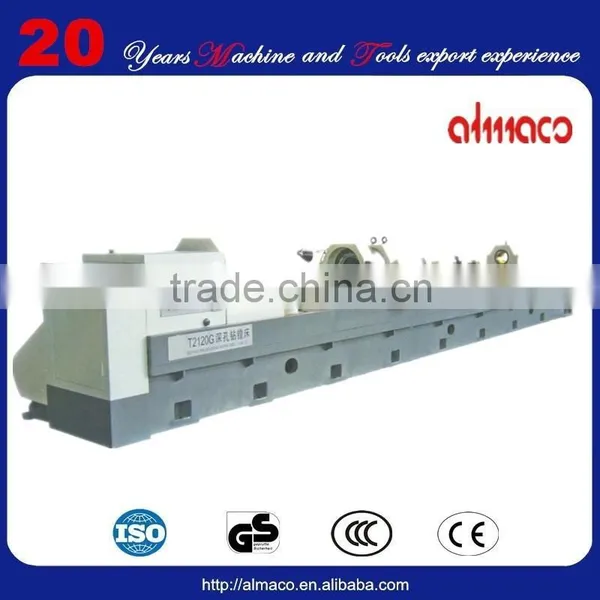

horizontal drilling machine
horizontal drilling machine is special equipment for machining deep cylindrical hole of workpieces
It suitable for boring the cylindrical workpiece
1.automatic or manual expansion efficient tool:greatly improve the machining efficiency
2.PLC controlled system
3. BTA drilling method:The oil is supply from the guide carriage, and take the chips from the
cutting area to the equipment of chip conveying in the back of machine
4.Protection and ground oil tank structure:improved machine tool environment
5.The drive:made by the racks in the two to ensure long movement feeding transmission accuracy
and rigidity requirements.
6.SERVO motor:controll the reciprocating movement of guide carriage and feeding carriage
7.Oil supply:from the guide carriage, and take the chips from the cutting area to the equipment of
chip conveying on the headstock.
horizontal drilling machine
Feature : 1.high efficiency
2.environmental friendly
3.easy to operate and control
|
Specification
|
T2125G,TT2125G/1 |
T2136G,T2136G/1 |
The range of drilling diameter |
Φ40~80mm |
Φ40~80mm |
The range of boring diameter |
Φ80~250mm |
Φ80~360mm |
The height of centre |
400mm |
500mm |
The range of boring depth |
1000~10000mm |
1000~12000mm |
The diameter of chucks |
Φ400mm |
Φ500mm |
|
Workpiece clamped dia. Range of steady rest |
Φ50~Φ400mm |
Φ100~Φ500mm |
Range and kinds of spindle speed |
70~120r/min 3 grades 12 kinds |
50~800r/min 3 grades 12 kinds |
The power of main motor |
N=30kw |
N=30kw |
Range of feeding speed |
5~2000mm/min(stepless) |
5~2000mm/min(stepless) |
Feeding motor |
N=4.5kw servo motor |
N=4.5kw servo motor |
Guide carriage motor |
N=4.5kw servo motor |
N=4.5kw servo motor |
Cool pump motor power |
N=5.5kw n=1440r/min(two group) |
N=22kw n=1440r/min(two group) |
Rated pressure of cooling system |
2.5Mpa |
2.5Mpa |
The flow of cooling system |
100,200,300,400L/min |
0~800L/min |
|
If equip the frequency conversion motor |
The range and kinds of spindle speed |
60~1200r/min 3 grade stepless |
40~800r/min 3 grade stepless |
Main motor |
N=37kw frequency conversion motor |
N=37kw Frequency conversion motor |
|
|
T2125G/1 has a drilling box with 15kw power and the speed is 40-500r/min |
T2136G/1 has a drilling box with 15kw power and the speed is 40-500r/min |
|
horizontal drilling machine
Our service:
All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
More than 5 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
Special dimensions available according to request.
We have many certificates of our Products.
Accessories replacement if our product itself has quality problems during one year after receiving.
