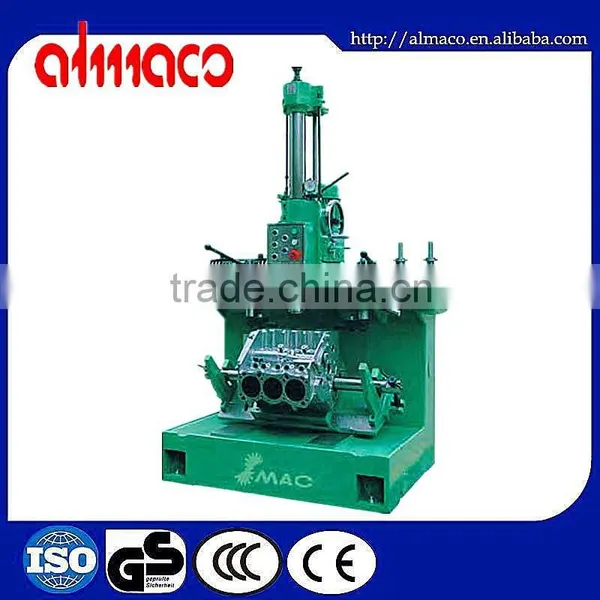

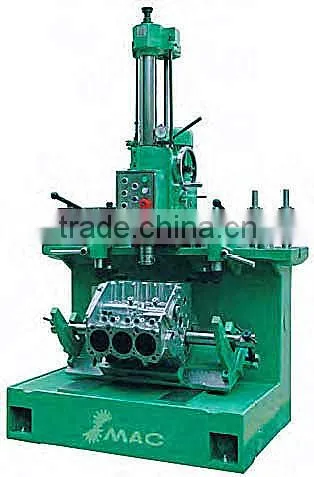

vertical air floating fine boring machine TB8016
This vertical air-floating fine boring machine is mainly used for reboring single line cylinder and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
Features:
1,Easy and flexible operation
2,Reliable performance,widely use,processing accuracy,high productivity.
3,Air-floating location quick and precise ,automatic pressure.
4,Spindle speed is suitability
5,the tool setting and measuring device.
6,There is a vertical measuring device.
7,Good rigidity,amoumt of cuting.
vertical air floating fine boring machine TB8016
vertical air floating fine boring machine TB8016
| NO | Item | Unit | Technical Specfication | |
| 1 | Boring diameter | mm | 39-160 | |
| 2 | Max Boring depth | mm | 320 | |
| 3 | Boring travel | longitudinal | mm | 1000 |
| transversal | 45 | |||
| 4 | Spindle speed(4 steps) | r/min | 125,185,250,370 | |
| 5 | Spindle feed | mm/r | 0.09 | |
| 6 | Spindle quickreset | mm/min | 430,640 | |
| 7 | Pneumatic pressure | Mpa | 0.6<P<1 | |
| 8 | Motor Output | Kw | 0.85/1.1 | |
| 9 | Overall dimensions L*W*H | mm | 1250*1050*1970 | |
| 10 | V-block fixture patented system | Degree | 30 ° ,45 ° | |
| 11 | Machine weight | Kg | 1300 | |
| 12 | V-block fixture patented system weight | Kg | 130 | |
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment.Best after sale service, customer can follow their order sit uation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
