Home > Products > Tyre shaping and curing press > tyre machine tyre shaping and vulcanizing machine

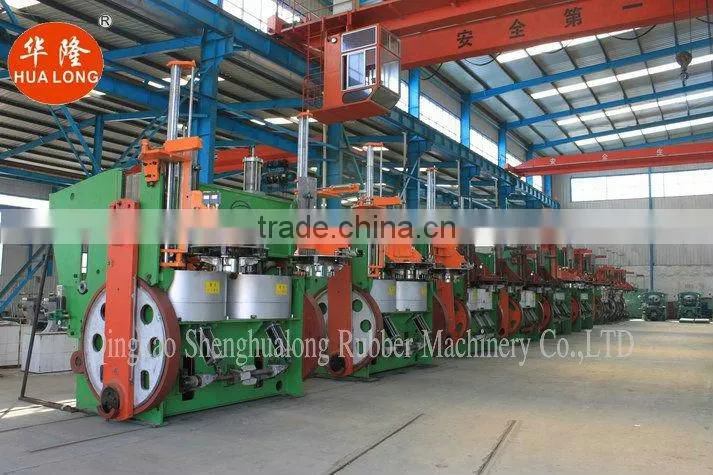

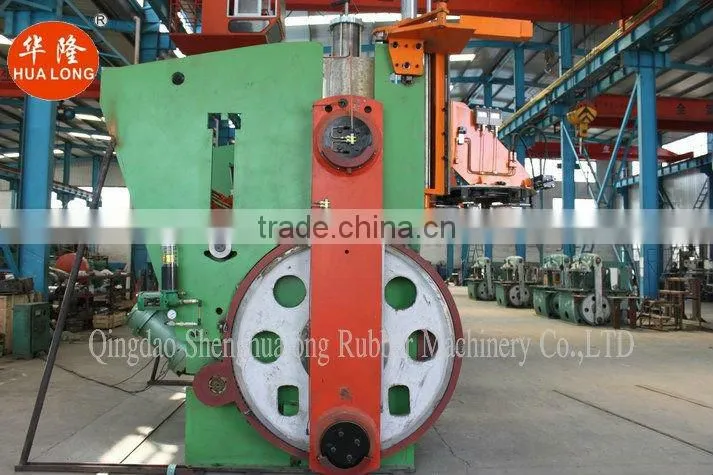

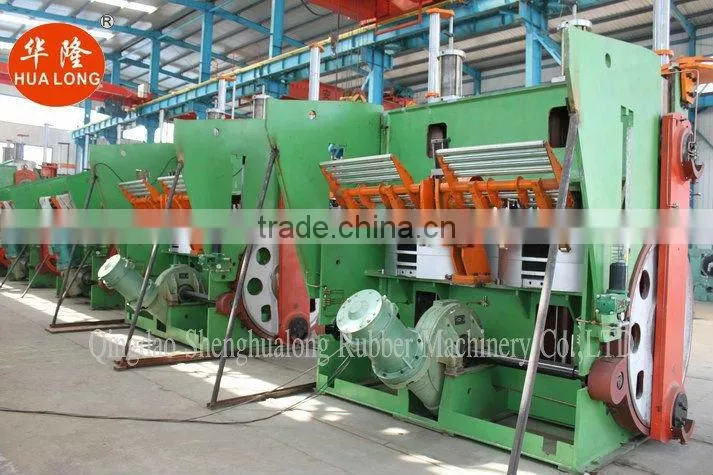

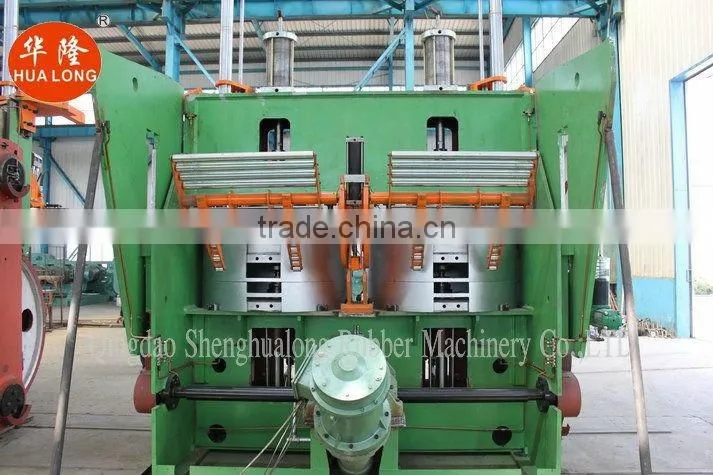

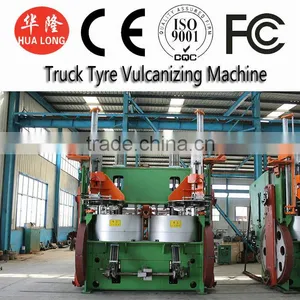

tyre machine tyre shaping and vulcanizing machine
- 100 Set / Sets per Month
- qingdao
Product Details
| Condition: | New | Type: | Vulcanizer | Place of Origin: | Shandong, China |
| Brand Name: | HUA LONG | Model Number: | 42"45"48"55"63.5"65.5" | Certification: | CE,ISO9001 |
| Warranty: | 1 YEAR | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
This press is used for vulcanization of bias tyre and all steel radial type with double half-moulds and segmented mouldsThis press is used for vulcanization of bias type and all steel radial type with double half-moulds and segmented moulds,which can meet tyre loading,shaping,vulcanizing and unloading automatically. Bias type can be cooled automatically with post cure inflator.

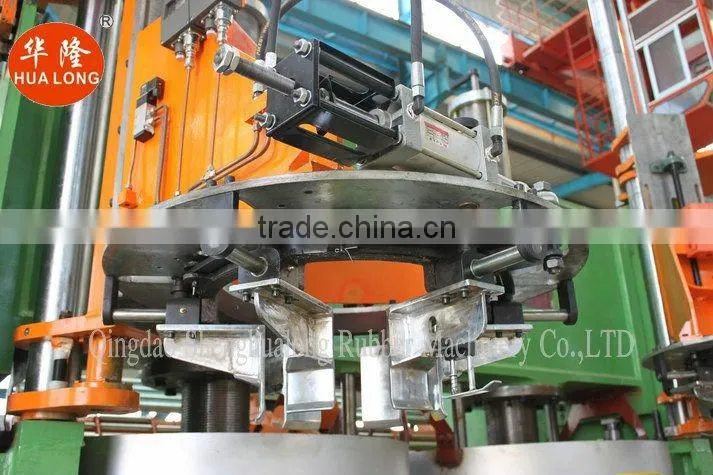

Tyre shaping and vulcanizing machine is the main production load meridian tyres equipment manufacturing. Vulcanizing machine mainly by the pack foetus institutions, steam rooms, central institutions (capsule operation), moulding-adjustment system, safety agency and lubrication system, piping system and transmission system, electrical system etc.
type Technical parameter |
42’’ |
45’’ |
48’’ |
55’’ |
63.5’’ |
65.5’’ |
Mould opening way | turn | Horizon/turn | Horizon/turn | Horizon/turn | Horizon/turn | Horizon /turn |
Center mechanism mode | B | B | B | B | B | B |
Mould heating | Heating plate | Heating plate | Heating plate | Steampot(heating plate) | Steampot(heating plate) | Steampot(heatingplate) |
Mould quantity | 2 | 2 | 2 | 2 | 2 | 2 |
Max.Mould closing force(KN) | 1370×2 | 1720×2 | 1920×2 | 2890×2 | 4220×2 | 4580×2 |
Mould height(mm) | 155~381 | 230~457 | 250~500 | 245~455 | 254~642 | 254~635 |
Steam hollowware diameter inside | 1050 | 1145 | 1220 | 1310 | 1525 | 1640 |
Apply bead specification(in) | 12~16 | 12~17.5 | 14~20 | 16~20 | 19~24 | 19~24.5 |
Main motor power(KW) | 11 | 11 | 11 | 16 | 16 | 16 |
Size(L×W×H)mm | 4254×4410 ×3916 | 4116×4425 ×3840 | 5500×3540 ×3211 | 6108×5380 ×5590 | 7000×5520 ×6154 | 7000×5520 ×5950 |
Contact Us
- Qingdao Shenghualong Rubber Machinery Co., Ltd.
- Contact nameJack Fang
- Phone86-532-86105715
- AddressROOM.C2403,Huishang International building,NO.467 changjiang road, qingdao economic and technological development zone.shangdong,china. Qingdao,Shandong
-
