Specifications

We manufacture types of plate vulcanizing machine, and can customize according to the customer.

The overall structure

(l) the body for fixed frame, compact structure, rigid good, installation convenient transportation.

(2) when combining a model on vertical movement up and down to die parts only about before, depend on the guide roller and roll. With eccentric wheel cover, to moderate accuracy can adjust. Between rollers and guide basically no gap and can keep the high accuracy and to repeat precision.

(3) although the hydraulic vulcanizing machine is double cavity, but from stress perspective, just two single-mode vulcanizing press linked. Fits the mold force rely on hydraulic cylinder force in mould centre with two side frame and acquired the elastic spread symmetrical, mould strength evenly circumference direction 5. In the whole operation process can always keep sulfide workstation axis vertical, no horns turned theory of sport.

(4) due to close mold force decided to shut the mould hydraulic oil cylinder, not affected by environmental temperature or working temperature effect, can keep constant close mold force.

(5) movement moves its sliding parts surface or roll surface no law to load, wastage, can keep the long operation precision.

(6) due to improved mechanical structure and thermal insulation layer of radiant heat loss than mechanical design, vulcanizing machine reduce 30 ~ 50%.

(7) with switching mode simplify, combining a model action reduced the time, improve the 30% machine productivity.

(8) because no upper die sports, to keep the flip adjustabie mode of precision and prolong the service life of advantage.

(9) due to the elimination of the whole worm gear reducer, gear, gear and size of crank connecting moving parts and large parts, such as reducing maintenance workload.

(10) due to the weight, and the machine when combining a model gravity axis in the offset, and not based processing machine can greatly simplified.

(11) machine movement precision is high.



Type	YLL-300	YLL-600	YLL-1000	YLL-1200	YDLS-100T
Working layer number	3	3	2	2	1
Outside diameter of plate(mm)	560	800	830	950
Total pressure(KN)	300	600	1000	1200	1000
Plunger diameter(mm)	180	250	300	320	280
High pressure(Mpa)	12	13	14	14	14
Low pressure(Mpa)	1.5	1.5	1.5	1.5	1.5
Pressure in bladder(Mpa)	1.5	1.5	2.1	2.1	2.1
Steam working pressure(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Size(l×w×h)mm	760×560×2400	1030×800×2750	1070×830×3100	1150×950×3220	1000×800×2180



Type	YLL-1400	YLL-1600	YLL-2000	YLL-2600	YLL-3000
Working layer number	2	2	2	2	2
Outside diameter of plate(mm)	1050	1200	1320	1400	1460
Total pressure(KN)	1400	1600	2000	2600	3000
Plunger diameter(mm)	360	380	450	500	530
High pressure(Mpa)	14	14	13	13	14
Low pressure(Mpa)	1.5	1.5	1.5	1.5	1.5
Pressure in bladder(Mpa)	2.1	2.1	2.1	2.1	2.1
Steam working pressure(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Size(l×w×h)mm	1270×1050×3200	1340×1200×3590	1610×1320×3900	1680×1400×4120	1780×1460×4250

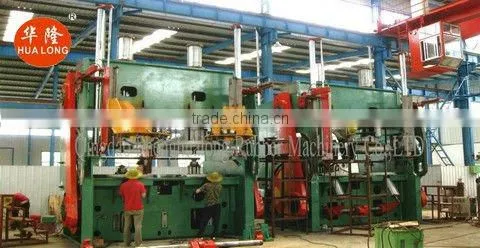

Tyre vulcanizing workshop
