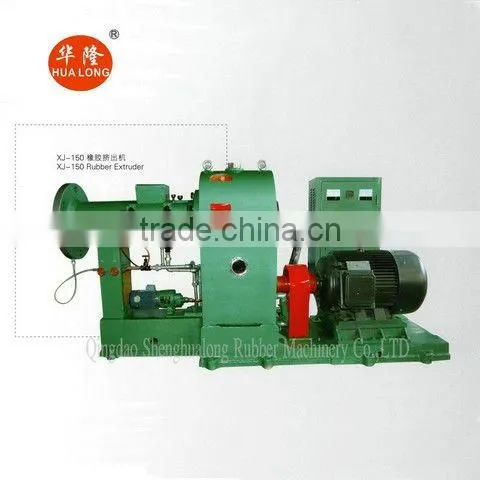

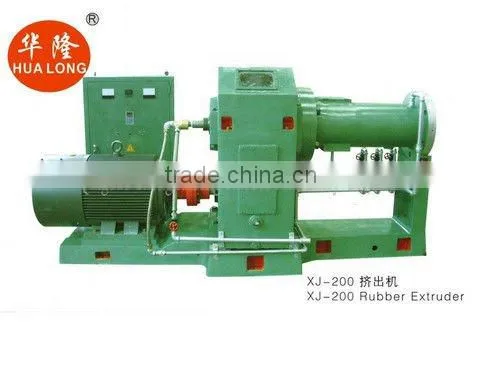

The machine is used for the extrusion of half-finished rubber products such as tire tread, inner tube, rubber tube. Etc
Features:
1 the machines is equip with inner tube and tire tread extrusion heads, and can also be equipped with other extruding dies as required by users.
2 the machine body is be installed temperature mear suring and indicating device. The feeding zone over model sj-150 is equipped with side rolls for the enhancement of feeding capability.
3 the screws and bushes are subjected to nitrogenation treatment to get nought strength and wear-resistance.
4 the reducer has a forced lubrication unit, which is featured by high transimission efficiency, long service life and low noise.
5 the machine over sj-150 is driven by a variable-speed motor.
6 the side rolls are designed as side-open type for easy rubber removal.
7.Variable-frequency motor home brands
8. Transducer YASKAWA
9. Head unit, body, screw, three parts temperature control system.
10. Use hard gear face reducer.
11. There has adjustable base at the botom of machine, it can adjust height, no fixed one.
Type |
XJ-65 |
XJ-115b |
XJ-120 |
XJ-150 |
XJ-200 |
XJ-250 |
Forms of screw and screw thread |
Double-head equal-depth convergent type |
Double-head convergent type |
Double-head convergent type |
Double-head unequal-depth |
Double-head convergent type |
Double-head convergent type |
Screw diameter(mm) |
65 |
115 |
120 |
150 |
200 |
250 |
Length-diameter ratio of screw(L/D) |
4 |
4.8 |
4.6 |
4.43 |
4.35 |
4.5 |
Compression ratio |
|
1.3 |
|
1.34 |
|
|
Rotary speed of screw |
5.2~52 |
5.4~54 |
5.6~55.6 |
20~26 |
22.4~67.2 |
19.7~59.1 |
Motor power(KW) |
Electromagnetic speed 7.5KW |
Electromagnetic speed 22KW |
Electromagnetic speed 22KW |
Frequency Control 55kw/motor Commutator18.3-55kw |
Frequency Control 55kw/motor Commutator25-75kw |
Motor commutator 33.3-100 |
Production capacity(kg/h) |
50~80 |
100~420 |
100~450 |
700~1200 |
1500~2200 |
2000~3200 |
Steam pressure (Mpa) |
0.2-0.3 |
0.4-0.6 |
0.2-0.4 |
0.6 |
0.6-0.8 |
0.6-0.8 |
Cooling water pressure (Mpa) |
0.2-0.3 |
0.2-0.3 |
0.2-0.4 |
0.2-0.3 |
0.2-0.3 |
0.2-0.3 |
Size: L×W×H(mm) |
1750×550×1100 |
2427×750×1330 |
2427×750×1330 |
3411×814×1470 |
4564×1800×1750 |
4950×1150×1483 |
