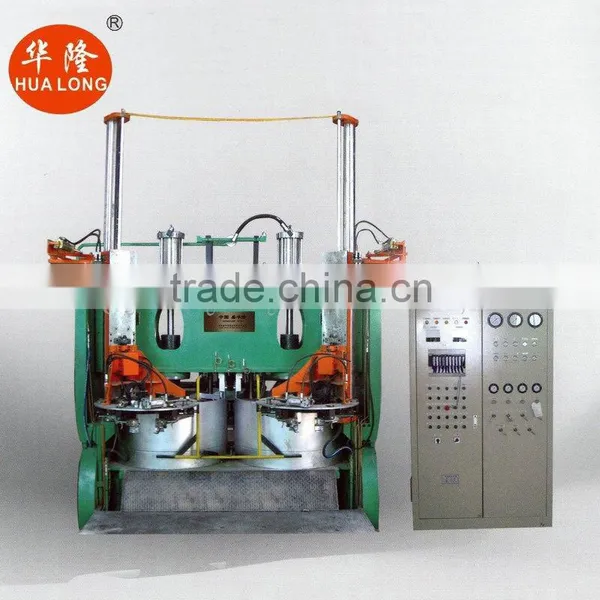

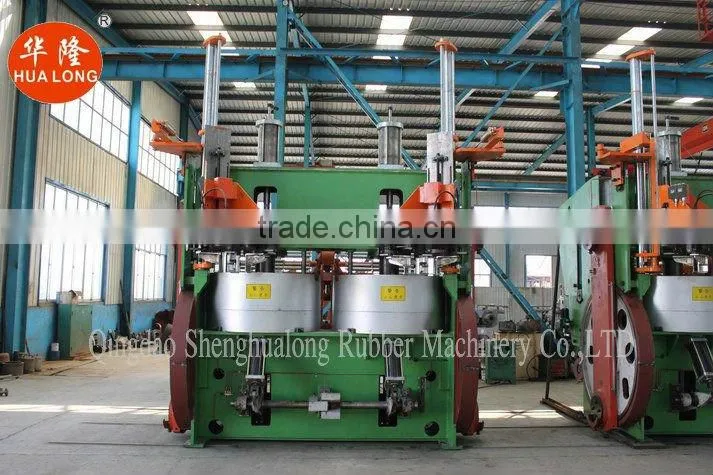

Tyre Shaping and Curing Press Tipe Vulcanization Machinery Type

Name: Tyre Shaping and Curing Press Tipe Vulcanization Machinery Type
Brand: hualong
SKU: 115127319

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Other, Tyre shaping and curing press

Place of Origin:

Shandong, China

Brand Name:

hualong

Qingdao Shenghualong Rubber Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Tyre shaping and curing press

Place of Origin Shandong, China

Brand Name hualong

Model Number 42'' 45'' 48'' 55'' 63.5'' 65.5''

Tyre shaping and curing press

Technical parameter of tyre shaping and curing press

type Technical parameter	42’’	45’’	48’’	55’’	63.5’’	65.5’’
Mould opening way	turn	Horizon/turn	Horizon/turn	Horizon/turn	Horizon/turn	Horizon/turn
Center mechanism mode	B	B	B	B	B	B
Mould heating	Heating plate	Heating plate	Heating plate	Steampot(heating plate)	Steampot(heating plate)	Steampot(heatingplate)
Mould quantity	2	2	2	2	2	2
Max.Mould closing force(KN)	1370×2	1720×2	1920×2	2890×2	4220×2	4580×2
Mould height(mm)	155~381	230~457	250~500	245~455	254~642	254~635
Steam hollowware diameter inside	1050	1145	1220	1310	1525	1640
Apply bead specification(in)	12~16	12~17.5	14~20	16~20	19~24	19~24.5
Main motor power(KW)	11	11	11	16	16	16
Size(L×W×H)mm	4254×4410×3916	4116×4425×3840	5500×3540×3211	6108×5380×5590	7000×5520×6154	7000×5520×5950
