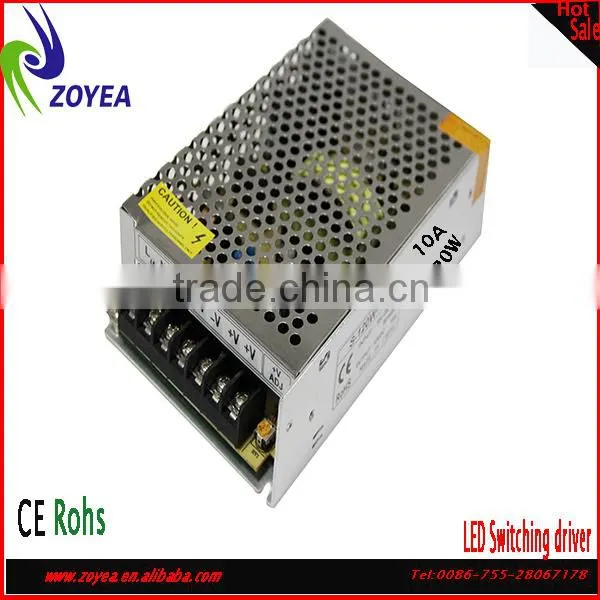

power supply 120w 150W 200W 250W 350W with CE&ROHS

Product Electric Parameters

Input specification

Input voltage

AC90V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC  40A@230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

≤1S(input230V,Io=100%)

keep time

≥20mS (input230V,Io=100%)

Voltage regulation

(Full load) ≤0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943, UL60950-1,EN60950-1 standards.

E M C standards

GB9254, EN55022 class A EN61347-2-13:2008
According with GB9254, EN55022 class A ?EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≤2000M

Structure

Size(mm)

199(L)*98(W)*38(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

0.5KG/PCS

Product Type Table

Product model

output specification

ripple, noise

efficiency

S-100-3.3

3.3V

20A

50mV

80%

S-100-5

5V

20A

50mV

80%

S-100-9

9V

11A

70mV

80%

S-100-12

12V

8.5A

100mV

80%

S-100-15

15V

7A

100mV

80%

S-100-24

24V

4.5A

100mV

80%

S-100-28

28V

3.6A

100mV

80%

S-100-36

36V

2.8A

120mV

80%

S-100-48

48V

2.3A

240mV

82%
