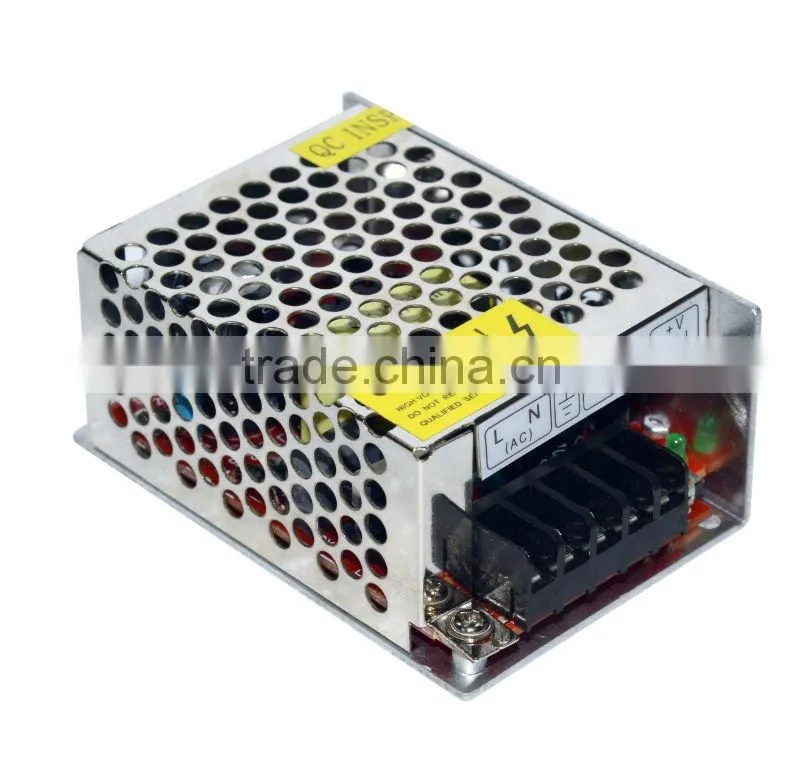

Led Driver 12v Dimmable

Name: Led Driver 12v Dimmable
Brand: Zoyea
SKU: 115105197
Availability: InStock

US$ 3.45 - 3.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Zoyea

Model Number:

S-25

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Zoyea

Model Number S-25

Output Power Other, 25w

Output Type Single

Input Voltage Other, 90~264V

Output Voltage 24v or 12v

Output Frequency 47-63HZ

Output Current 2.08A

Specifications

1 led driver 12v dimmable
2 CE&Rohs
3 2 years warranty
4 low price but high qaulity
5 ODM or OEM is welcome

Specification:

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted		±10%
	Start-up time		≤1S(input230V,Io=100%)
	keep time		≥20mS (input230V,Io=100%)
	Voltage regulation		(Full load) ≤0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input---ground		1500VAC/1min
	Input---ground		500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
EMC standards	According with GB9254, EN55022 class A ?EN61347-2-13:2008 standards
Environmental	working temperature		- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature		- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level		≤2000M
Structure	Size(mm)		85(L)58(W)38(H)
Cooling method	Cooling method		Natural cooling air convection
Weight	0.2KG/PCS
Product Type Table
Product model	output specification		ripple, noise	efficiency
S-25-3.3	3.3V	7.5A	50mV	74%
S-25-5	5V	5A	50mV	76%
S-25-9	9V	3A	70mV	78%
S-25-12	12V	2.1A	100mV	80%
S-25-15	15V	1.7A	100mV	80%
S-25-24	24V	1A	100mV	80%
S-25-28	28V	0.9A	100mV	80%
S-25-36	36V	0.7A	100mV	80%
S-25-48	48V	0.5A	100mV	82%
