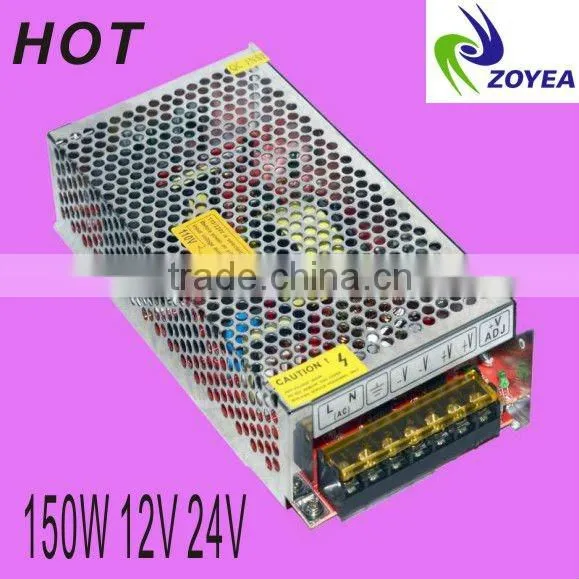

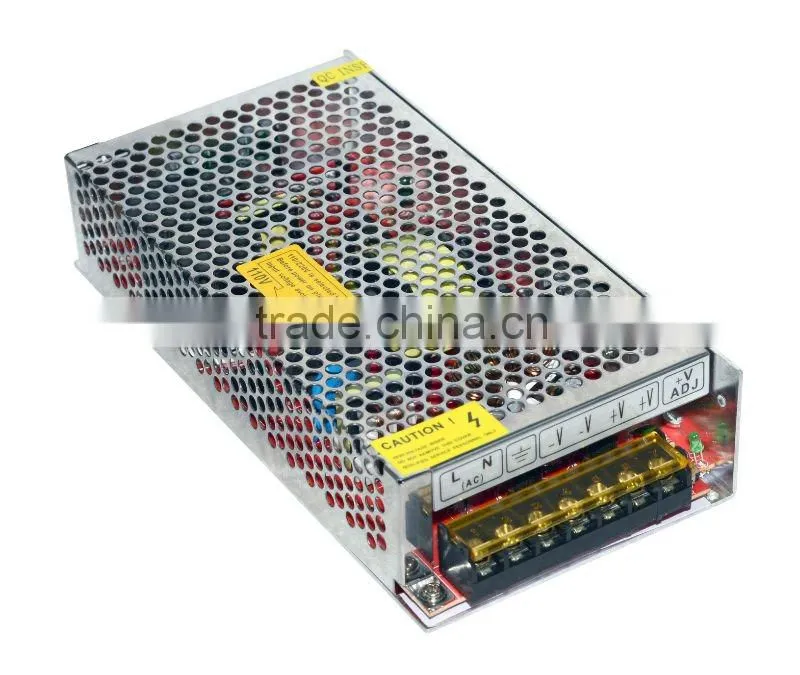

Led Driver 12v Dimmable

Name: Led Driver 12v Dimmable
Brand: Zoyea
SKU: 115105183
Availability: InStock

US$ 8.5 - 10.8 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Zoyea

Model Number:

S-150

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Zoyea

Model Number S-150

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 90~264V

Output Voltage 24v or 12v

Output Frequency 47-63HZ

Output Current 12.5A

Specifications

1 led driver 12v dimmable
2 CE&Rohs
3 2 years warranty
4 ODM or OEM is welcome
5100% full load test

Specification:

Product Electric Parameters
Input specification	Input voltage			AC90V---264V
	Input frequency			47-63Hz
	Input surge			20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted			±10%
	Start-up time			leq1S(input230V,Io=100%)
	keep time			more than or equal to 20mS (input230V,Io=100%)
	Voltage regulation			(Full load) leq0.5%
Protection function	Overload protection			105% - 150% rated power, automatic recovery
	Over-voltage protection			105% - 150% of the rated voltage
Insulation intensity	Input---output			1500VAC/1min
	Input---ground			1500VAC/1min
	Input---ground			500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
E M C standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature		- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature		- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level		leq2000M
Structure	Size(mm)		199(L)98(W)42(H)
Cooling method	Cooling method		Natural cooling air convection
Weight	0.5KG/PCS
Product Type Table
Product model	output specification			ripple, noise	efficiency
S-150-5	5V	30A		70mV	78%
S-150-9	9V	16.5A		70mV	78%
S-150-12	12V	12.5A		100mV	80%
S-150-15	15V	10A		100mV	80%
S-150-24	24V	6.5A		100mV	80%
S-150-28	28V	5.35A		100mV	80%
S-150-36	36V	4.2A		120mV	80%
S-150-48	48V	3.3A		240mV	82%
