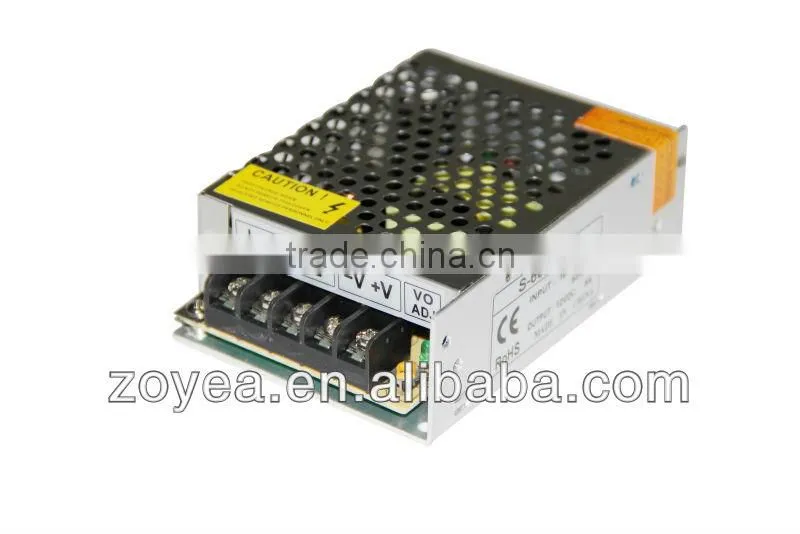

60W 24V Switching Power Supply

Name: 60W 24V Switching Power Supply
Brand: ZOYEA
SKU: 115099045

US$ 4.3 - 6.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ZOYEA

Model Number:

S-60

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ZOYEA

Model Number S-60

Output Power Other, .60w

Output Type Single

Input Voltage Other, 90-264v

Output Voltage 24v+_0.5v

Output Frequency 47-63HZ

Output Current 2.5A

Specifications

1 60W 24V Switching Power Supply
2 CE&Rohs
3 2 years warranty
4 100% Full load test
5 ODM or OEM is welcome

Features:

1. 60W 24V Switching Power Supply

2. Universal AC input(100-240V)

3.Withstand 300VAC surge input for 5seconds

4. Protections:Short circuit/Over load/Over current

5. Cooling by free air convection

6. 100% full load burn-in test

7. High Reliability

8. Meet RoHS/CE

9. 2 year warranty

Specification:

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Output voltage adjusted		±10%
	Start-up time		leq1S(input230V,Io=100%)
	keep time		more than or equal to 20mS (input230V,Io=100%)
	Voltage regulation		(Full load) leq 0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input---ground		1500VAC/1min
	Input---ground		500VAC/1min
Safety standards	According with GB4943, UL60950-1,EN60950-1 standards.
EMC standards	According with GB9254, EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature			- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature			40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level			leq2000M
Structure	Size(mm)			160(L)98(W)42(H)
Cooling method	Cooling method			Natural cooling air convection
Weight	0.36KG/PCS
Product Type Table
Product model	output specification				ripple, noise	efficiency
S-60-3.3	3.3V	18A			50mV	76%
S-60-5	5V	12A			50mV	77%
S-60-9	9V	6.6A			70mV	78%
S-60-12	12V	5A			100mV	81%
S-60-15	15V	4A			100mV	82%
S-60-24	24V	2.5A			100mV	83%
S-60-28	28V	2.1A			100mV	84%
S-60-36	36V	1.7A			120mV	84%
S-60-48	48V	1.25A			240mV	85%
