Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 12v ac dc Waterproof Switching Power Supply

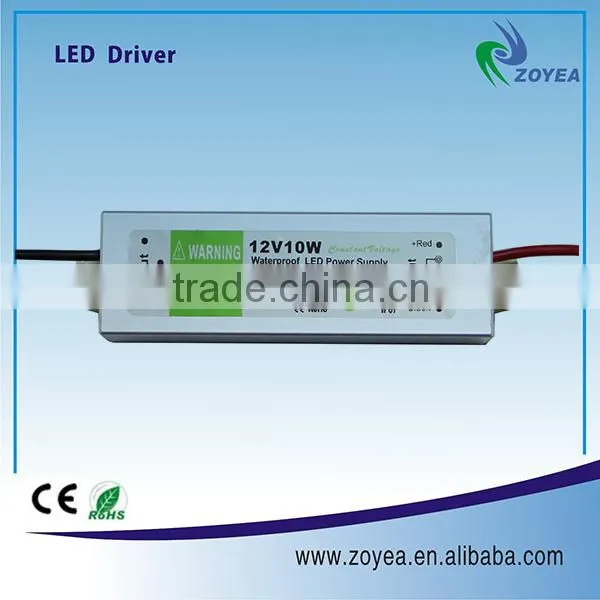

12v ac dc Waterproof Switching Power Supply

Name: 12v ac dc Waterproof Switching Power Supply
Brand: Zoyea
SKU: 115099101

12v ac dc Waterproof Switching Power Supply thumbnail-1

12v ac dc Waterproof Switching Power Supply photo-1

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Zoyea

Model Number:

FSV-10

Contact Supplier Request Quote Chat Now

Shenzhen Zoyea LED Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Zoyea

Model Number FSV-10

Output Power 1 - 50W

Output Type Single

Input Voltage Other, AC 90-264V

Output Voltage 12V

Output Frequency 47-63Hz

Output Current 0.83 mA

Specifications

12v ac dc waterproof switching power supply
1.low cost,high efficiency
2.100% load test
3.fast ship,3 year's warranty

12v ac dc waterproof switching power supply

Product Description

Features:

v Universal AC input(95-265V)

v Fully encapsulated with IP67 level

v Withstand 300VAC surge input for 5seconds

v Protections:Short circuit/Over load/Over current

v Cooling by free air convection

v 100% full load burn-in test

v High Reliability, 3 year warranty

v Waterproof IP67

Product Electric Parameters
Input specification	Input voltage		AC90V---265V
	Input frequency		47-63Hz
	Power Factor(Typ)		PF>0.68/220VAC
Output specification	Dc Voltage		12V/24V
	Ripple&Noise(Max)		150mV
	Voltage Tolerance		±4%
	Rated Current		0.83A
Protection function	Short Circuit		Protection type:recovers automatically after fault conditions is removed
	Overlaod/Over Temperature		Overload protection@145~160%above peak rating / protection typer:shut down o/p voltage.re-power on to recover
Environment	Working Temp		-30~ +60°C(Refer to output load derating curve)
	Working Humidity		20~90%RH no-condensing (Waterproof)
	Storage Temp Humidity		-40~ +80°C,10~90%RH
Safety standards	CE Mark(LVD),IP67
Emc Test Standards	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
	EN 61347-1:2008 EN 61347-2-13:2006
Structure	Size(mm)		96(L)30(W)20(H)
Cooling method	Cooling method		Natural cooling air convection
Weight	0.105KG/PCS
Product Type Table
Product model	output specification		ripple, noise	efficiency
FSV-10-12	12V	0.83A	100mV	81%
FSV-10-24	24V	0.41A	100mV	83%

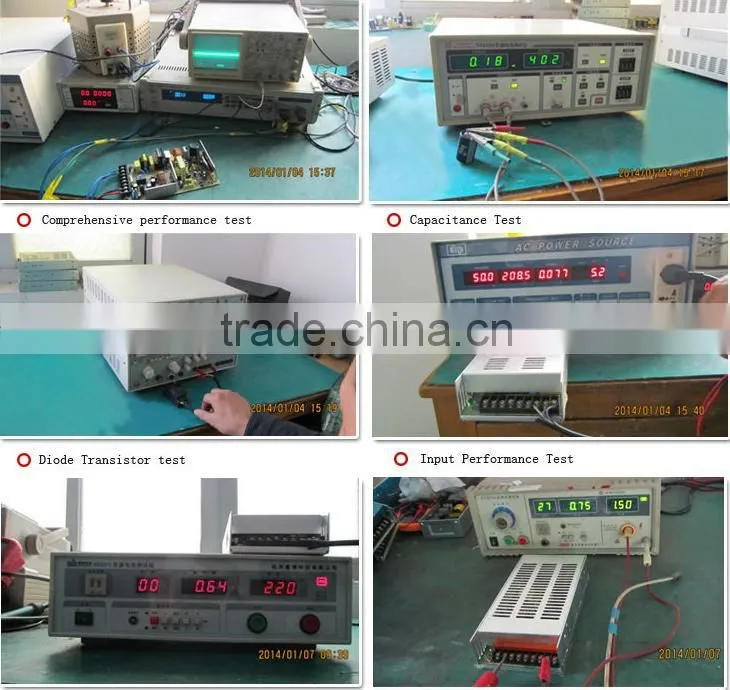

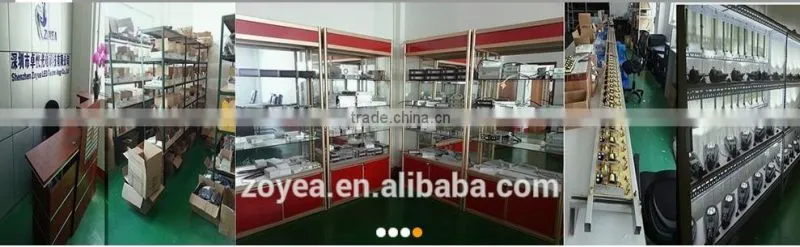

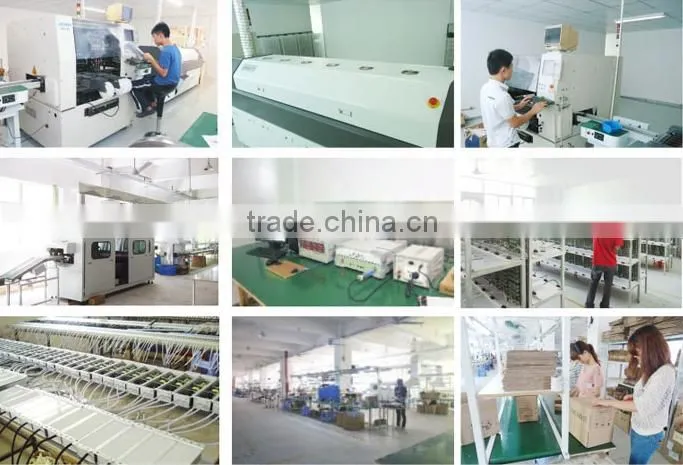

Pictures fpr Products and factory

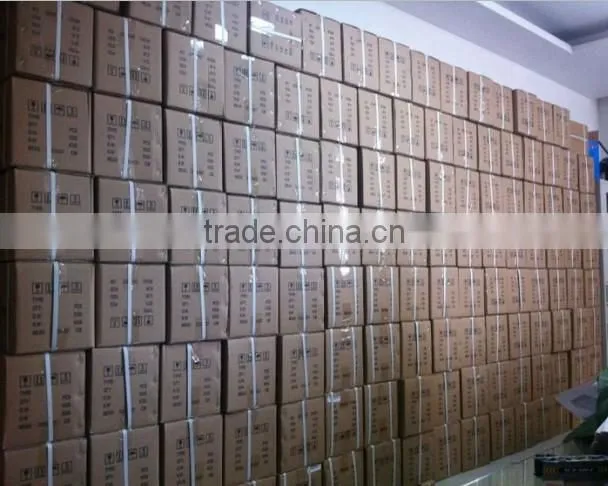

Packaging & Shipping

• Neutral packing,Carton box,Customiz is available

• Samples checking: sending by Express (DHL / UPS / FEDEX / TNT/EMS)

• Bulk production: sending out by cargo shipping / air freight / Express

Company Information

Shenzhen Zoyea LED Technology Co., Ltd. is mainly engaged in manufacturing LED waterproof power supply,LED switching power supply,Led rainproof power supply and LED strips. We have factory of about 10000 square meters and an office of about 300 square meters in the beautiful seaport city - Shenzhen City, Guangdong, China.

Our company with maturity QA system and reliable QC ability, owning leading production equipments and processes, as well as full ranges of testing and inspection equipments.Our company operates under the management of ISO9001:2000 system, all of our products have passed the CE certificate and ROHS requirement .Products have been exported to more than thirty countries and regions, such as the USA, Europe, Southeast Asia, South America, etc.
