SD-50W 1.5a 2.4G wifi dimmable led driver with plastic enclosure
- 50000 Piece / Pieces per Month
- Shenzhen Guangzhou Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ZOYEA | Model Number: | SD-50W1500 |
| Output Power: | Other, 50w | Output Type: | Single | Input Voltage: | Other, AC 100-240V |
| Output Voltage: | 32-35VDC | Output Frequency: | 50/60Hz | Output Current: | 1.5A |
Product Description

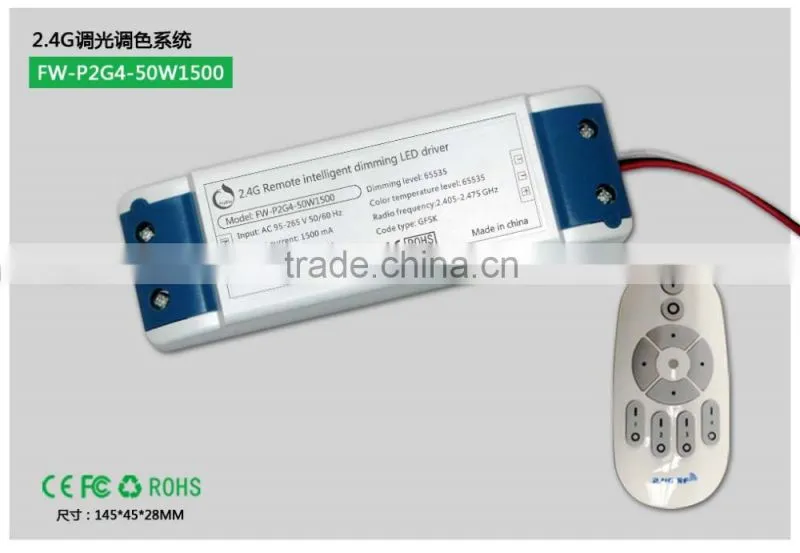

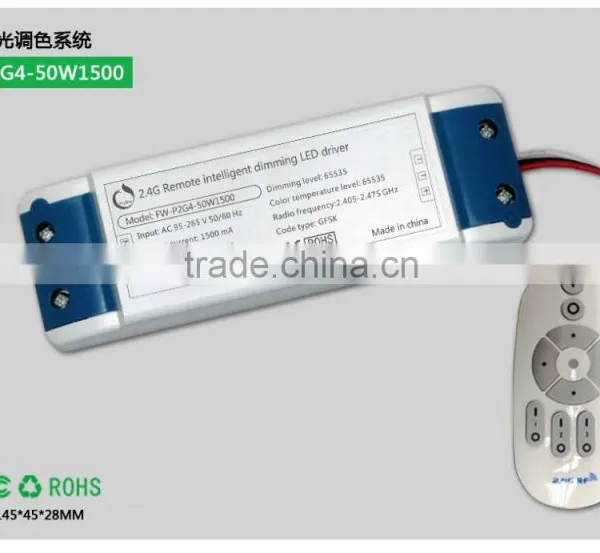

SD-50W 1.5a 2.4G wifi dimmable led driver with plastic enclosure
Typical Feature
1.Constant current mode power supply
2.Protection:Short circuit/Overload/Over voltage/Over temperature
3.Dimmable by wife, bluetooth, remote control
4. IP20 design for indoor applications
5.100% burn-in tests <at full load> , full-round tests
6.3 years warranty
Product Description
Product Electric Parameters | ||||
Input specification | Input voltage | AC 100-240V | ||
Input frequency | 50-60Hz | |||
Power Factor(Typ) | PF>0.5/220VAC | |||
Output specification | Dc Voltage | 32-35V | ||
Ripple&Noise(Max) | 150mV | |||
Voltage Tolerance | ±4% | |||
Rated Current | 1.5A | |||
Protection function | Short Circuit | Protection type:recovers automatically after fault conditions is removed | ||
Overload/Over Temperature | Overload protection@145~160%above peak rating / protection typer:shut down o/p voltage.re-power on to recover | |||
Environment | Working Temp | -30~ +60℃(Refer to output load derating curve) | ||
Working Humidity | 20~90%RH no-condensing (Waterproof) | |||
Storage Temp Humidity | -40~ +80℃,10~90%RH | |||
Safety standards | CE Mark(LVD),IP20 | |||
Emc Test Standards | EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 | |||
EN 61347-1:2008 EN 61347-2-13:2006 | ||||
Structure | Size(mm) | 140(L)*44(W)*28(H) | ||
Cooling method | Cooling method | Natural cooling air convection | ||
Product Type Table | ||||
Product model | output specification | ripple, noise | efficiency | |
SD-50W1500 | 32-35V | 1.5A | 100mV | >87% |
Connect to our WiFi-equipment,you can choose any color as your request,such as red,green,blue,purple,orange and so on,It also can dim the brightness.
On the other hand, you can adjust a variety of beautiful lighting effects, such as different colors chase each other and jumping, and so on, you can also adjust the Color temperature (cold white and warm white). But these functions depend on our controller,First of all is to power on our WiFi light Controller, then open the mobile phone WiFi connection page to connect our WiFi equipment, if connect success, quit page and Start the Software, now you can control the light by your Phone.
- Control LED strip lighting with your Smartphone
- Supports both IOS products (iPod, iPhone, iPad...) and Android products (Samsung, HTC...)
- Free app download available from Google Play and iTunes
- Compact stylish Wi-Fi control unit
- Advanced software with colour wheel, custom colour scrolling and music activation feature
- Connect directly or through your local Wi-Fi network
- Control multiple Wi-Fi controllers simultaneously when connected through local Wi-Fi network
- Create and store custom colours and patterns on each mobile device
- WiFi device works up to 50m from the controller
- Multiple Smartphones can be used to control the lights
- Dimming control to adjust brightness
- Controls both 12v and 24v LED strip (input voltage from driver must match LED strip voltage)

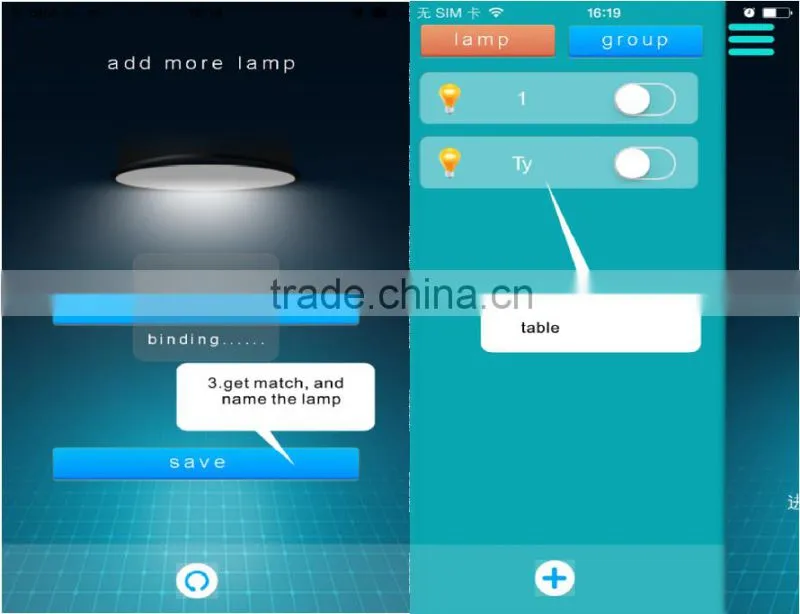

WIFI Operation Guide
- First connect the wifi switch by 5V power bank.
- Then turn the cell phone wifi to switch wifi (name: wifi_000000) wifi(pass word:12345678)
- Open the below software and go on.(for iphone search “foxware”and down load )

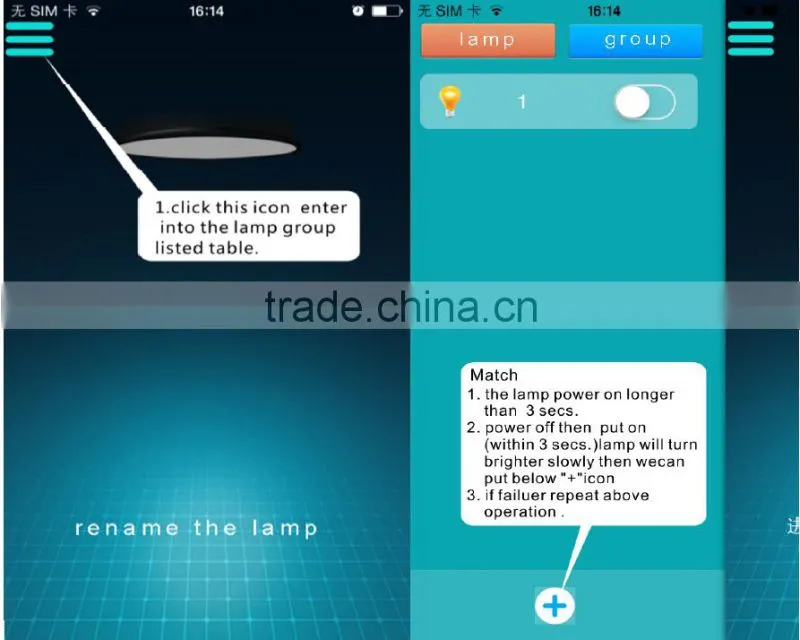

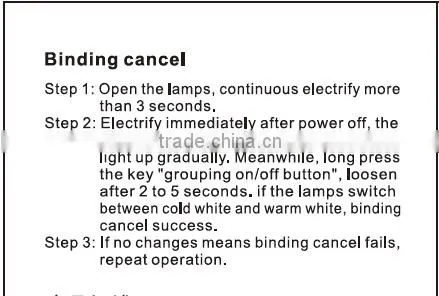

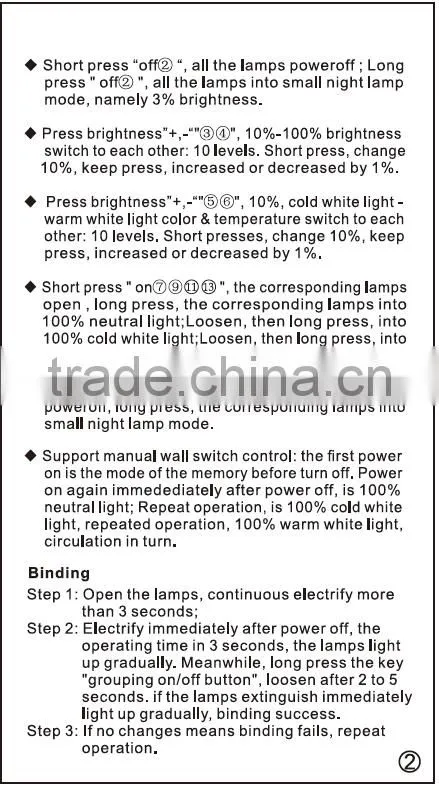

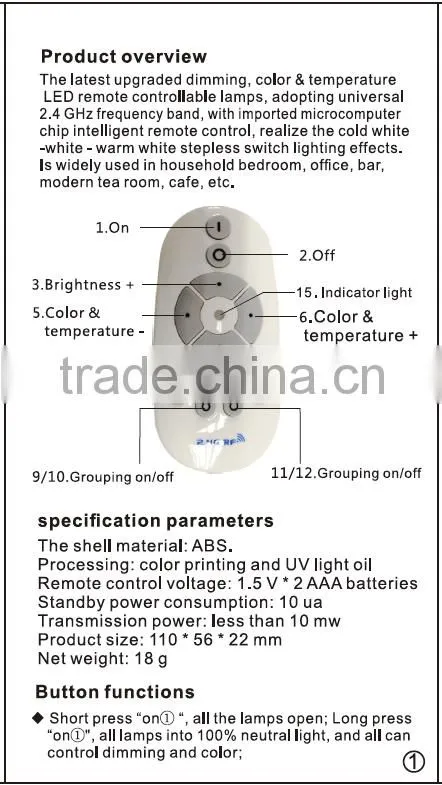

Controller Operation Guide
Zoyea Certificates
• Neutral packing,Carton box,Customization is available
• Samples checking: sending by Express (DHL / UPS / FEDEX / TNT/EMS)
• Bulk production: sending out by cargo shipping / air freight / Express

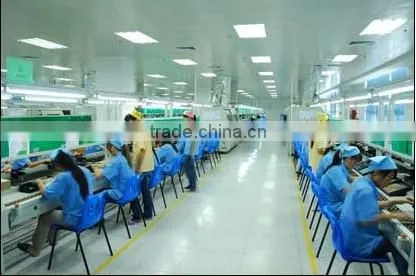

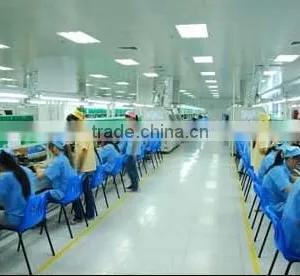

Shenzhen Zoyea LED Technology Co., Ltd. is mainly engaged in manufacturing LED waterproof power supply,LED switching power supply,Led rainproof power supply and LED strips. We have factory of about 10000 square meters and an office of about 300 square meters in the beautiful seaport city - Shenzhen City, Guangdong, China.

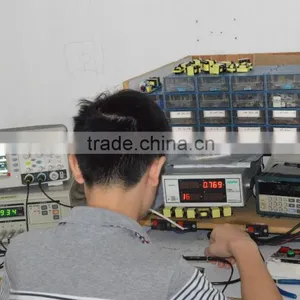

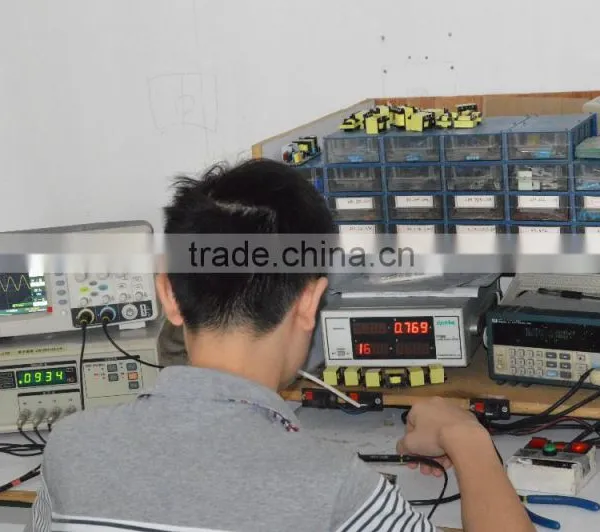

Our company with maturity QA system and reliable QC ability, owning leading production equipments and processes, as well as full ranges of testing and inspection equipments.Our company operates under the management of ISO9001:2000 system, all of our products have passed the CE certificate and ROHS requirement .Products have been exported to more than thirty countries and regions, such as the USA, Europe, Southeast Asia, South America, etc.
Our Aim: Continually developing new and innovative products.
Our Commitment: remaining at the forefront in product quality and service.
Our Advantages: advanced manufacturing technologies, the best & competitive price..
Our Slogan: the quality of Zoyea,all loved in the world.
We can provie OEM and ODM service. We trust we are a good partner with you and hope to establish long-term cooperative relationships with customers.
We are looking forward to hearing from you, your inquiries will be replied without delay!
