PE PP 2 PE 3 PE Steel Pipe or Tube

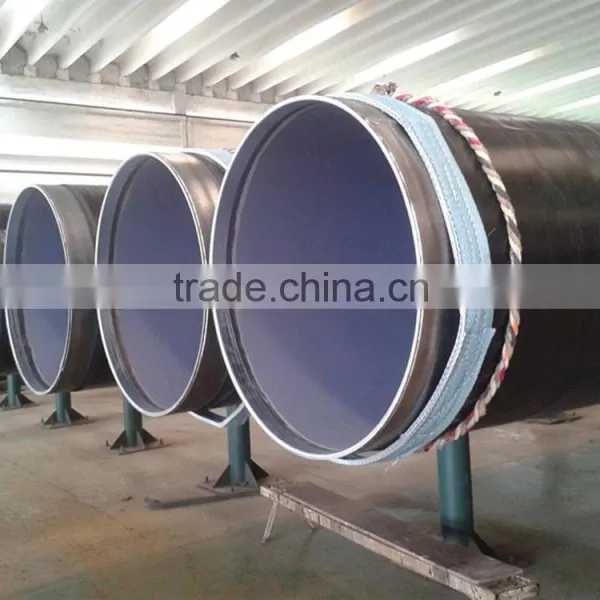

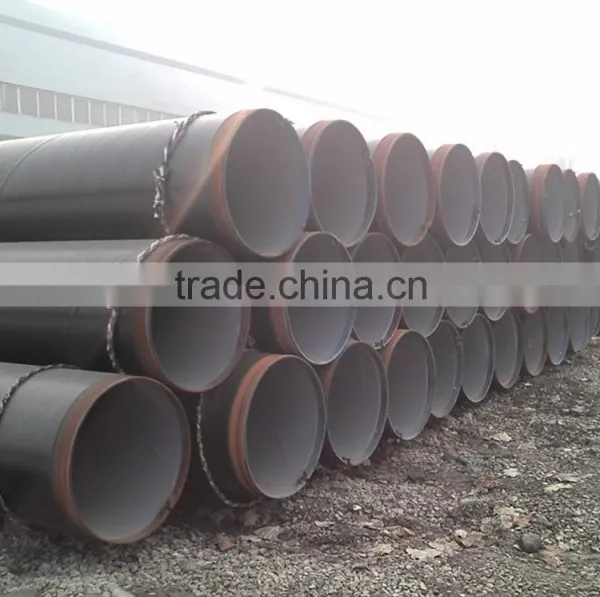

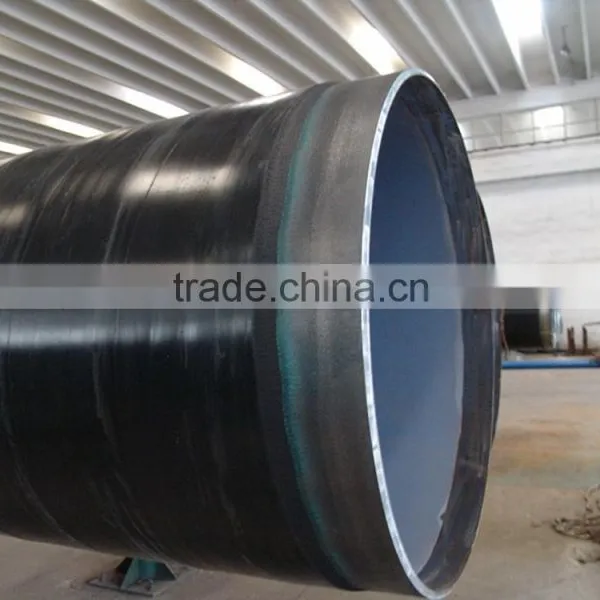

Outer PP/PE Inner Epoxy Coating Spiral  Steel  Pipe

We can produce single/double layer, fusion bond exopy (FBE),two/three layers 3LPE/3LPP etc. And API 5L- three layers of polyethylene (3LPE) anticorrosion steel pipe for oil and natural-gas industry.

STEEL PIPE: SSAW LSAW SMLS

COATING STANDARD: DIN30670,CSA Z245.21,AS1518

PIPE STANDARD: API 5L, ASTM A252, SY/T5040, API 5L, EN10219, EN10217, ISO 3183

SIZE: O.D. 159—1220 mm
              W.T.  5—20mm

MATERIAL: Q195,Q235,Q345,10#,20#,L245(B),L290(X42),L320(X46),L360(X52),L390(X56),L415(X60), L450(X65),L485(X70),L290NB/MB(X42N/M),L360NB/MB(X52N/M),L390NB/MB(X56N/M),415NB/MB(X60N/M), L450MB(X65),L485MB(X70)

COATING: FBE/ 3LPE / 2LPE / 3LPP/ 2LPP

COATING COLOR: black PE , white adhesive, green epoxy powder outside, gray epoxy powder inside, or others.

PATCH: free repair technology of stainless steel lined

APPLIED RANGE: gas oil chemical mine power thermodynamics and water industries for transportation, bridge pipeline.

Operating Temperature: -40° C to 85° C

Performance characteristics:
   Perfect corrosion resistance
   Better adhesive
   Better ability against scale
   Better antistatic ability
   Better quality surface
   Small resistance for fluid

2PE API pipe,  with two layers of POLYETHYLENE  (2PE)  to anti-corrosion,for fluid,oil and natural gas industry

3PE API pipe,  with three layers of POLYETHYLENE  (3PE)  to anti-corrosion,for fluid,oil and natural gas industry

PP API pipe,  with three layers of POLYPROPYLENE  (3PE)  to anti-corrosion,for fluid,oil and natural gas industry

COATING STANDARD: DIN30670

SIZE: OUTSIDE DIAMETER FROM 159mm to 1600 mm.

PP,PE,2PE,3PE steel pipe cab be widely used in gas oil cgemical mine power thermodynamics and water industries for transportation meanwhile can be used for bridge pipeline,outside surface coated with PP or PE and inside surface coulded be coated with epoxy resin powder can decrease transportation resistance.

CERTIFICATE: ISO9001, UL, FM, CE, API
