Specifications
1.Vibration cutting for hard fireproof eps blocks2.Horizontal,vertical & cross cutting
3.2 pcs of blocks cut in one time
Why use vibration eps cutting machine to cut fireproof eps blocks?
The fire proof eps blocks is harder than normal eps blocks.If use normal eps cutting machine,not only the cutting spped will be slow but also the eps cutting machine maybe damaged and the eps blocks appearance will not smooth.By vibration eps cutting machine,when cutting,the hot wire will be moved from left to right in turn.It is easy to cut the fireproof eps blocks. And 2pcs of blocks can be cut in one time.
Process:

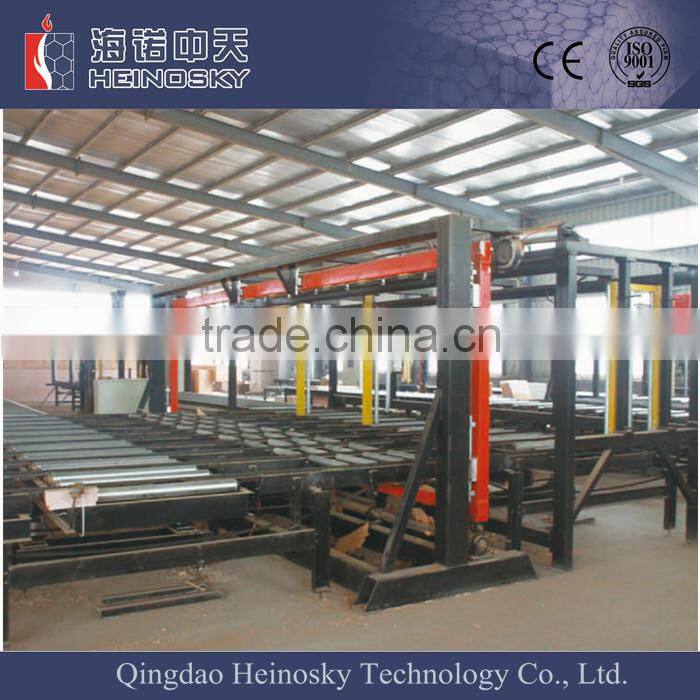

Horizontal eps cutting machine and Cross eps cutting machine composite one whole eps cutting machine production line.
The fireproof eps blocks is cut by horizontal cutting machine horizontally,then the blocks is transported to cross eps cutting machine.The cross cutting machine cut the eps blocks according to set size to small blocks.
Features:
1. Vibration cutting by hot wire moving from side to side
2.Smooth eps block appearance
3.High speed.About 10minutes per cycle
4.Speed adjustable from 1-4.5m/m
5.High efficiency:Through the whole eps cutting machine ,the eps blocks is cut horizontal,vertical and cross in one line.
i) 2pcs EPS block can be cut in one time, efficiently improve the productivity.
and high class stainless steee used on the equipment body and the proper counterweight dsign, gurantee the machine works stably and continuous.
ii) Adopt large capacity generator and frequency conversation to efficiently generate smoothly and improv the productivity, and keep the production smooth and beautiful appearance, and reduce the wastage of the material.
Parameter
| No | Item | Unit/Type | Parameter | |
| HNC-5000 | HNC-6000 | |||
| 1 | Cutting dimension | mm | 4920*1250*630 | 6060*1250*630 |
| 2 | Installed power | kW | 20 | 20 |
| 3 | Max contour size | mm | 20000*68003200 | 23000*6800*3200 |
| 4 | Machine Weight | T | 6 | 10 |
Why Choose us?
1. We have introduced South Korea and Taiwan technology with more than 30 years experience. Our machine quality is the best.
2. Our salesman will be 24 hours online for you to solve problems.
3. After sales service: we will dispatch professional technicians to customer factory for machine installation and training.
How to contact us?
Skype: heinoskytec
Mobile /whatsapp: +86-136-6886-5679
