Full automatic EPS batch pre-expander eps foam machine pre expander machine

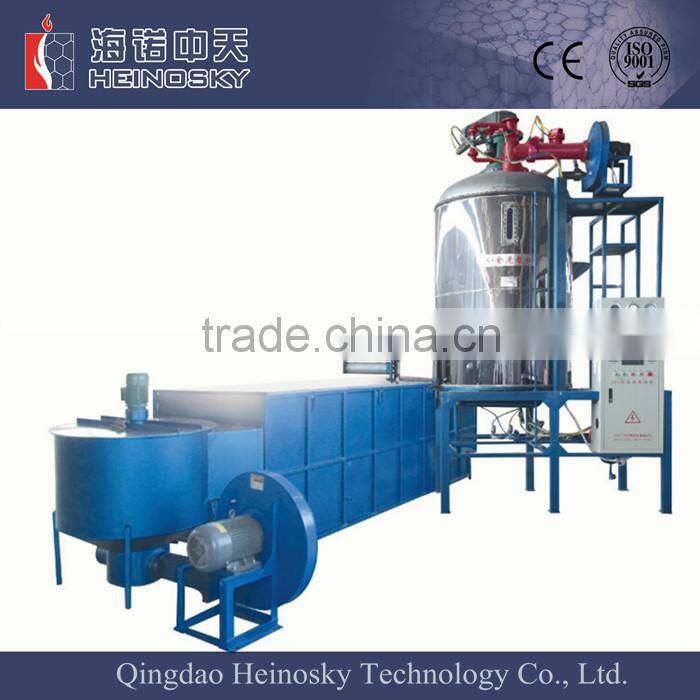

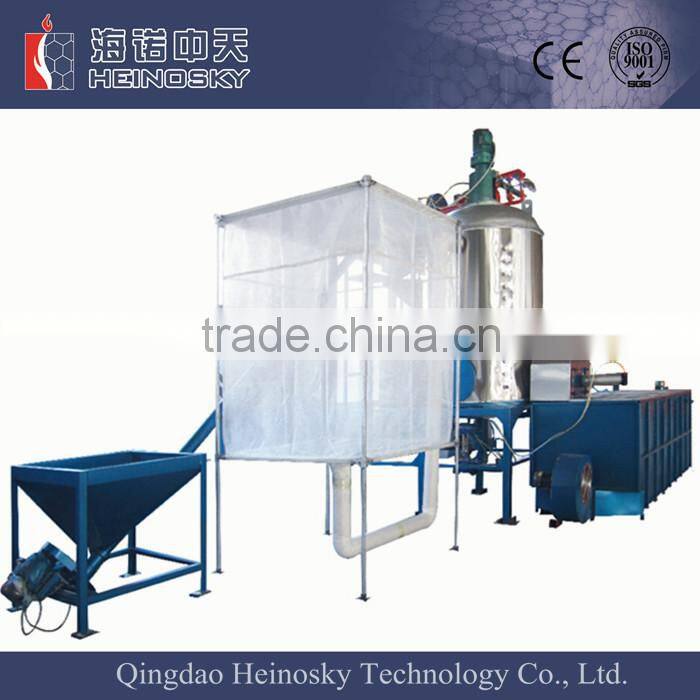

Automatic Batch Pre-expander Machine
Features and Advantages:
.
The machine is composed of world famous brand of electrical components, pneumatic components and valves, the quality of which are reliable so that ensures precise control on temperature and pressure as well as uniform beading and density of foam material.
The equipment is made of stainless steel sheets with reasonable structure which is convenient to fix and ajust material feeding so as to reach the needed granules capacity.
Technical Parameter
Item |
Unit |
PSF140-I |
PSF 140-II |
PSF160-I |
PSF160-II |
Barrel Diameter |
mm |
1400 |
1400 |
1600 |
1600 |
Effective Volume |
m3 |
3.1 |
2.8 |
4.6 |
4.6 |
Steam Pressure |
Mpa |
0.6-0.8 |
0.4-0.6 |
0.6-0.8 |
0.4-0.6 |
Air Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Production Capacity |
kg/h |
400-800 |
500-600 |
500-900 |
500-900 |
Foaming Density |
kg/m3 |
4.5-30 |
4.5-30 |
4.5-30 |
4.5-30 |
Density Tolerance |
% |
≤3 |
≤3 |
≤3 |
≤3 |
Installed Power |
kw |
28.3 |
28.3 |
34.9 |
34.9 |
External Dimension |
mm |
4350*2150*2950 |
3450*2100*4350 |
4400*2150*3500 |
3500*2100*4400 |
Installed Weight |
kg |
2500 |
2950 |
2750 |
3250 |

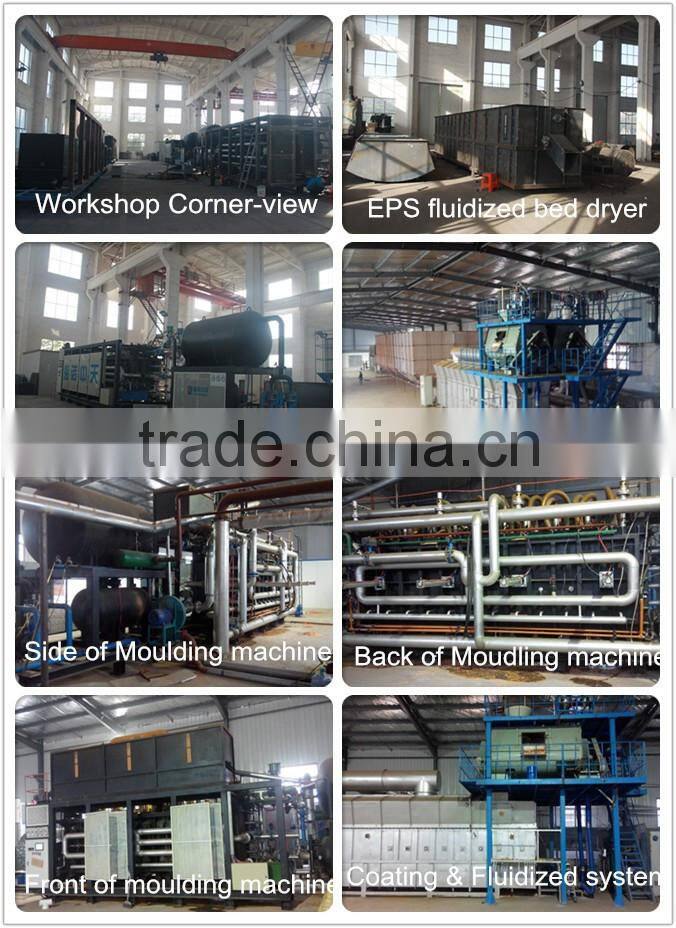

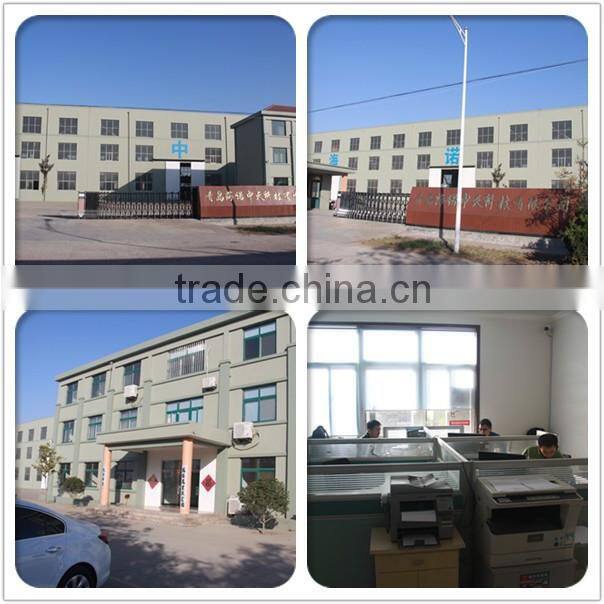

Factory View:
Why Choose us?
1. We have introduced South Korea and Taiwan technology with more than 30 years experience. Our machine quality is the best.
2. Our salesman will be 24 hours online for you to solve problems.
3. After sales service: we will dispatch professional technicians to customer factory for machine installation and training.
