Energy Saving Pellet Screw Conveyor With Reasonable Price

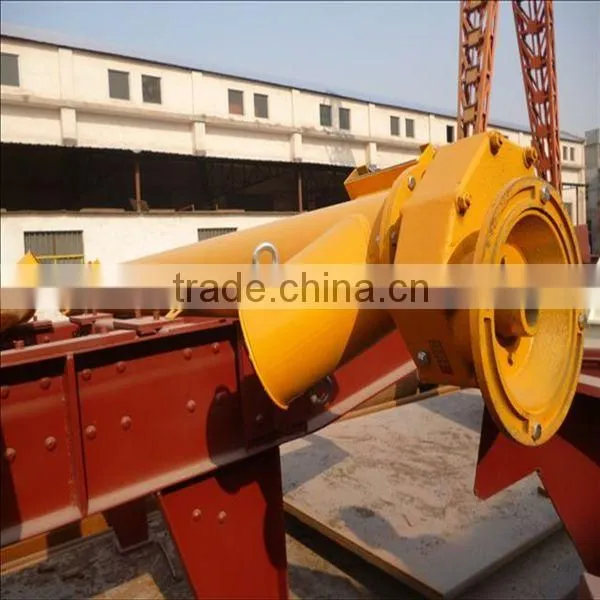

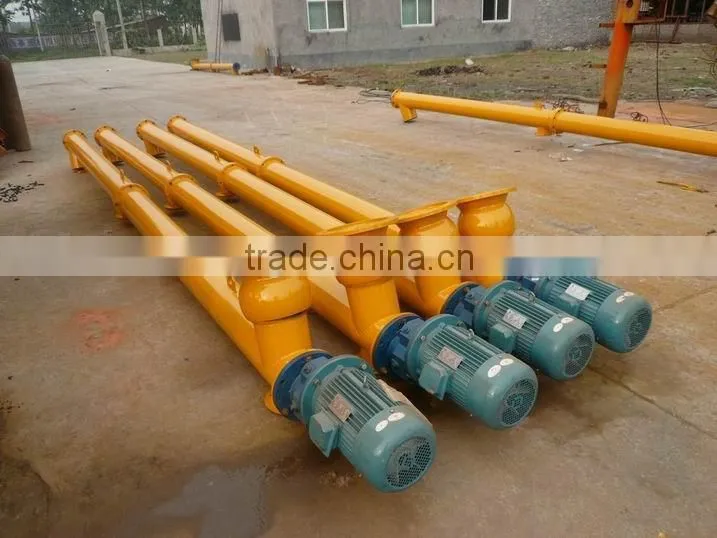

Horizontal screw conveyor introduction
High performance horizontal screw conveyor is the new equipment designed by our company after integrating our rich experience of producing the other series screw conveyor, based on absorbing the foreign similar products. Since this series screw conveyor cans not only horizontal but also much aslope transport materials, it is widely used to transporting the bulk material, such as the cement, fly ash in concrete mixing plant and cement transfer-warehouse etc.
Energy Saving Pellet Screw Conveyor With Reasonable Price
Function of horizontal screw conveyor
High performance horizontal screw conveyor in modern industry is an efficient way to move semi-solid materials including food, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste, and many others. It is often used horizontally or at a slight incline.
Energy Saving Pellet Screw Conveyor With Reasonable Price
Features of horizontal screw conveyor
1. Compact structure, small cross section, light weight.
2. Loose powder material on the level of conveying.
3. High speed rate and compact overall dimensions.
4. Flexible technological arrangement, easy to be installed, dismantle and moved, safe operation.
5. Adopt high-quality reduction gear box with heavy-duty design, large torque and low noise.
6. Compared with other transport equipment, the section size of screw conveyor are small, good sealed performance, stable operation, and simple maintenance.
7. Continuous feeding can be realized whether horizontally or in a large inclined angle.
Energy Saving Pellet Screw Conveyor With Reasonable Price
Technical parameters
model |
Spiral diameter(mm) |
Pitch(mm) |
Spiral speed(r/min) |
MAX transport capacity(m3/h) |
Motor power(kw) |
Admission biggest gradient(°) |
LS100 |
100 |
100 |
140 |
2.2 |
2.2-18.5 |
≤ 60 |
LS125 |
125 |
125 |
125 |
4.0 |
||
LS160 |
160 |
160 |
112 |
8 |
||
LS200 |
200 |
200 |
100 |
11 |
||
LS250 |
250 |
250 |
90 |
22 |
||
LS315 |
315 |
315 |
80 |
34 |
||
LS400 |
400 |
355 |
71 |
64 |
||
LS500 |
500 |
400 |
63 |
95 |
||
LS630 |
630 |
450 |
50 |
150 |
Notice: This specification is just reference, any changes are subject to the products.
