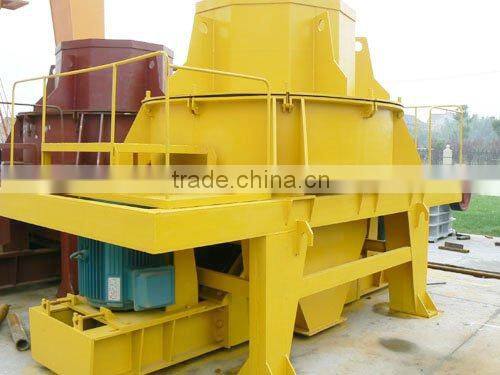

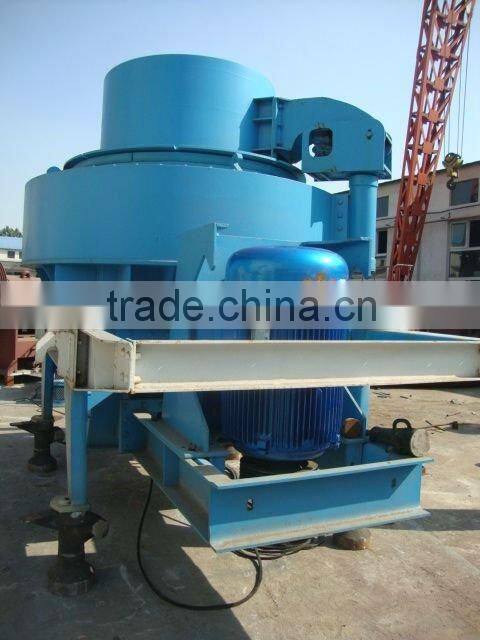

Best PCL750 Series Sand Maker With CE&ISO Certificates For Salling
Brief introduction:
PCL Sand Making Machine(namely PCL Vertical shaft impact crusher) is of high-power and low-cost, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Makers absorbed the advanced technology of the same products of Barmac Company of America, now is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Working Principle:
Stone less than 50mm enters sand making machine though conveyor belt. Stone is crushed by hitting other stones. Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine, however overlarge material will go back to sand maker to be recrushed. Output sizes can be made according to customers requirement. If input size is larger than the designed size, other crushing equipment will be necessary.
The characteristics:
Simple structure and low operating cost;
High efficiency and low consumption;
PCL Sand Making Machine has the function of fine crushing and crude grinding;
Slightly influenced by the moisture content of material, and the max moisture content is 8%;
More suitable for crushing mid-hardness and high-hardness materials;
Cubic shape of final products, high piling up density and low iron pollution;
More wearable and easy maintenance;
Low working noise and less dust pollution.
Technical Data :
|
Model |
Feeding size |
Power |
rolling speed of Impeller |
Capacity |
Dimensions |
Weight(including motor) (T) |
PCL600 |
30 |
2×30 |
2000-3000 |
12-30 |
2800×1550×2030 |
5.6 |
PCL750 |
35 |
2×45 |
1500-2500 |
25-55 |
3300×1800×2440 |
7.3 |
PCL900A |
40 |
2×55 |
1200-2000 |
55-100 |
3750×2120×2660 |
12.1 |
PCL900B |
40 |
2×75 |
1000-1450 |
65-130 |
3750×2300×2090 |
13.6 |
PCL1050 |
45 |
2×(90-110) |
1000-1700 |
100-160 |
4480×2450×3906 |
16.9 |
PCL1250 |
45 |
2×(132-180) |
850-1450 |
160-300 |
4563×2650×3716 |
22 |
PCL1350 |
50 |
2×(180-220) |
800-1193 |
200-360 |
5340×2940×3650 |
26 |
Notice: This specification is just reference, any changes are subject to the products.
Notes during using
1.Please read operation manual carefully before use.the machine may only be operated by fully authorized,trained personnel.
2.Make sure that the machine starts without any load. The machine can only be started after.All people are away from it.and wear safty hemlet and pay attention to flying stones,please atand outside the safe distance.
3.When machine runing All adjustment,clearance or check-up is strictly prohibited keep away from any running part. Overlaaded operation is strictly prohibited.
4.Lubriate and maintain the machine timelyBefore halt for check,feeder should be first stopped feeding and make sure the stones are all out of the machine silo.
