Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price

Specifications

Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price
1.High quality
2.Simple and easy opration;
3.Durable

Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price

Henan,China

Henan Kexing Heavy Industry Co., Ltd.





Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price

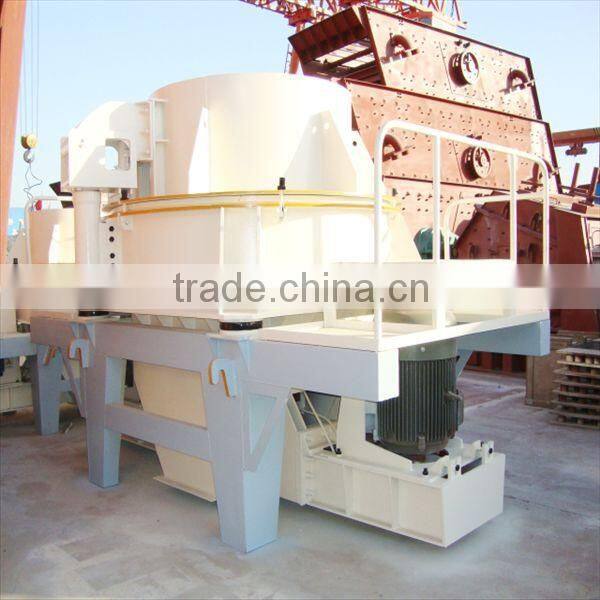

PCL Sand Making Machine(namely PCL Vertical shaft impact crusher) is of high-power and low-cost, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Makers absorbed the advanced technology of the same products of Barmac Company of America, now is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.



Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price

Stone less than 50mm enters sand making machine though conveyor belt. Stone is crushed by hitting other stones. Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine, however overlarge material will go back to sand maker to be recrushed. Output sizes can be made according to customers requirement. If input size is larger than the designed size, other crushing equipment will be necessary.



Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price

Simple structure and low operating cost;

High efficiency and low consumption;

PCL Sand Making Machine has the function of fine crushing and crude grinding;

Slightly influenced by the moisture content of material, and the max moisture content is 8%;

More suitable for crushing mid-hardness and high-hardness materials;

Cubic shape of final products, high piling up density and low iron pollution;

More wearable and easy maintenance;

Low working noise and less dust pollution.

Large Capacity PCL900 Sand Crusher Machine With Factory Sale Price

Model	Feeding size (mm)	Power (Kw)	rolling speed of Impeller (r/min)	Capacity (t/h)	Dimensions (mm)	Weight(including motor) (T)
PCL600	30	2×30	2000-3000	12-30	2800×1550×2030	5.6
PCL750	35	2×45	1500-2500	25-55	3300×1800×2440	7.3
PCL900A	40	2×55	1200-2000	55-100	3750×2120×2660	12.1
PCL900B	40	2×75	1000-1450	65-130	3750×2300×2090	13.6
PCL1050	45	2×(90-110)	1000-1700	100-160	4480×2450×3906	16.9
PCL1250	45	2×(132-180)	850-1450	160-300	4563×2650×3716	22
PCL1350	50	2×(180-220)	800-1193	200-360	5340×2940×3650	26





Notes during using

1.Please read operation manual carefully before use.the machine may only be operated by fully authorized,trained personnel.

2.Make sure that the machine starts without any load. The machine can only be started after.All people are away from it.and wear safty hemlet and pay attention to flying stones,please atand outside the safe distance.

3.When machine runing All adjustment,clearance or check-up is strictly prohibited keep away from any running part. Overlaaded operation is strictly prohibited.

4.Lubriate and maintain the machine timelyBefore halt for check,feeder should be first stopped feeding and make sure the stones are all out of the machine silo.



Guarantee and Services:

Warranty:

The guarantee period for equipment is one year,excluding wearing parts.During this period,if any defects,the seller will resolve them free of charge.

Pre-sales Service:

a.Help customers find the right product by professional technology and business consultation.

b.Provide plans of the machines installation freely.

c.Could make customized products according to the clients’ requirements.

After-sales Service:

a.Highly inspecting equipments in every working procedure, quality comes first;

b.Fast & Safe Delivery;

c.Assisting our clients for foundation construction of equipments;

d.Dispatching engineers to install and debug equipments;

e.Training the first-line operators on site.
