Widely Use Carborundum Sand Maker Equipment On Sale
PCL Vertical shaft impact crusher:
Sand Making Machine (namely PCL Vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several year’s hard work and study of mechanical mining equipment. Sand Making Machine absorbed the advanced technology of the same products of Barmac Company of America, now is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.
Characteristics:
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. Function of fine crushing and crude grinding;
4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;
5. More suitable for crushing mid-hardness and high hardness materials;
6. Cubic shape of final products, high density of piling up and low iron pollution;
7. More wearable and easier maintenance;
8. Low working noise (lower than 75 decibel) and light dust pollution

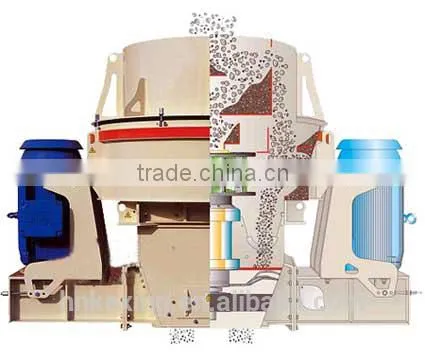

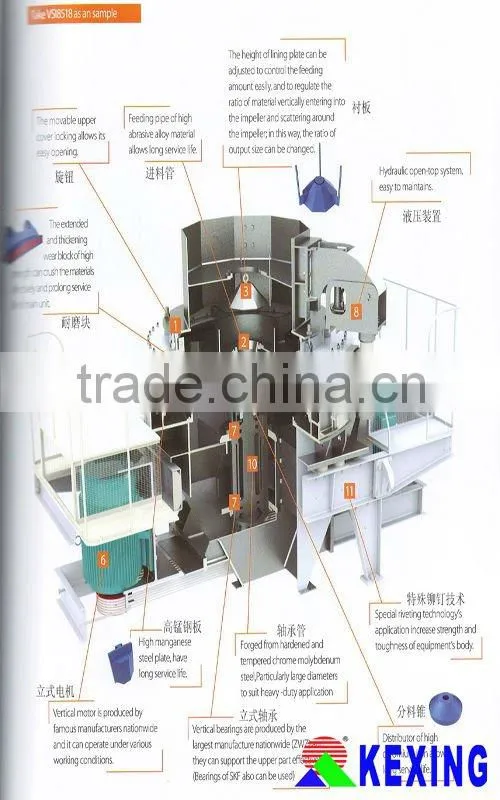

Working Principle Of Sand Making Machine:
Stone less than 50mm enters sand making machine though conveyor belt. Stone is crushed by hitting other stones. Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported to sand washing machine, however overlarge material will go back to sand maker to be recrushed. Output sizes can be made according to customers requirement. If input size is larger than the designed size, other crushing equipment will be necessary.
Technical data and main specifications
Model |
Rotate speed of impeller (r/min) |
Max feed size (mm) |
Power (kW) |
Weight (including motor) (t) |
Capacity (t/h) |
Overall dimensions (mm) |
PCL-600 |
2000-3000 |
30 |
2×30 |
5.6 |
12-30 |
2800×1550×2030 |
PCL-750 |
1500-2500 |
35 |
2×45 |
7.3 |
25-55 |
3300×1800×2440 |
PCL-900A |
1200-2000 |
40 |
2×55 |
12.1 |
55-100 |
3750×2120×2660 |
PCL-900B |
1000-1450 |
40 |
2×75 |
13.6 |
65-130 |
3750×2300×2090 |
PCL-1050 |
1000-1700 |
45 |
2×(90-110) |
16.9 |
100-160 |
4480×2450×2906 |
PCL-1250 |
850-1450 |
45 |
2×(132-180) |
22 |
160-300 |
4563×2650×3176 |
PCL-1350 |
800-1193 |
50 |
2×(180-220) |
26 |
200-360 |
5340×2940×3650 |
Notice: This specification is just reference, any changes are subject to the products.
Our Services
Per-sale:
(1) According to customer's special requirements, design and manufacture of products.(2) the company free of charge to the user onsite engineering and technical personnel planning site for the user to design the best processes and programs
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed.
Packaging & Shipping
Our products are usually packed by plywood case,wooden case,nylon cloth, etc. And we will change packing ways by the real situation.The goods will be delivered from Qingdao port and we will take buyers requirements into consider,too.
Our certificates:
Cooperation with foreign customers
Order Online:
If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your information won't be leaked to anyone.
