Impact crusher is widely used in the industries of ore crushing, railway, highway, energy, cement, chemicals, construction and so on. The discharging size can be adjusted and the crushing specification is variety. Singlerotor impact crusher has the advantages of simple structure, low energy consumption, high output, smaller weight and the crushed products showing cubic shape.

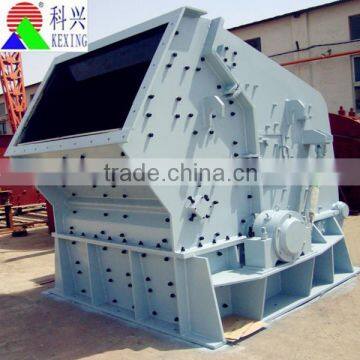

Hot Selling Hazemag Impact Crusher with Professional Technolog
Working Principle
Impact crusher is a kind of mechanical equipment to crush the materials by the attack. In the working process, the rotor rotates highspeedly by the drive of the motor. When the materials get into the area where the hammers effect, they are impacted with the hammer and crushed into pieces,then thrown to the impact device and rebounded to the area where the hammers effects for being recrushed. This process is repeated. The materials from large to small all to be crushed at the impact chamber repeatly until the materials are crushed into the required size, at last out of the discharging open. Adjusting the gap between the impact frame and the rotors can change the final size and the shape of the materials.
Hot Selling Hazemag Impact Crusher with Professional Technolog
Characteristics
1.Big feeding open, high crushing cavity,suitable crushing the materials with high hardness, big block and less final stone powder.
2.Easily adjust the gap between the impact plate and plate hammer, control the final size efficitivly and good grain size;
3.Compact structure, strong steel characteristics of the machine and motor with large moment of inertia
4.High chrome hammer, Impact and abrasion resistance and great impact
5.Keyless access, easy maintenance, economical and reliable
6.Full Broken function, high productivity, little mechanical wear and high overall efficiency.
Hot Selling Hazemag Impact Crusher with Professional Technolog
Technical data
Model |
size(mm) |
Feed size (mm) |
Max.feed size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
PF1010 |
Φ1000×1050 |
400×1080 |
300 |
50-90 |
55-75 |
14 |
PF1210 |
Φ1250×1050 |
400×1080 |
300 |
70-130 |
110-132 |
17 |
PF1214 |
Φ1250×1400 |
400×1430 |
300 |
90-180 |
132-160 |
22 |
PF1315 |
Φ1320×1500 |
860×1520 |
350 |
120-250 |
180-260 |
26 |
PF1320 |
Φ1320×2000 |
860×2030 |
500 |
160-350 |
300-375 |
30 |
Hot Selling Hazemag Impact Crusher with Professional Technolog
Our services
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed.
Hot Selling Hazemag Impact Crusher with Professional Technolog
Packaging and shipping
Our products are usually packed by plywood case,wooden case,nylon coth, etc. And we will change packing ways by the real situation.
The goods will be delivred from Qingdao port and we will take buyers requirements into consider,too.
Hot Selling Hazemag Impact Crusher with Professional Technolog

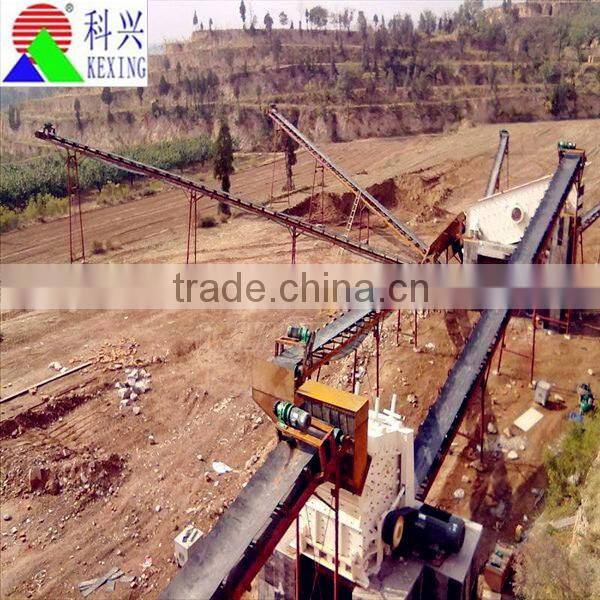

Delivering photoHot Selling Hazemag Impact Crusher with Professional Technolog
Cooperation with foreign customers
Hot Selling Hazemag Impact Crusher with Professional Technolog
Our main certification
