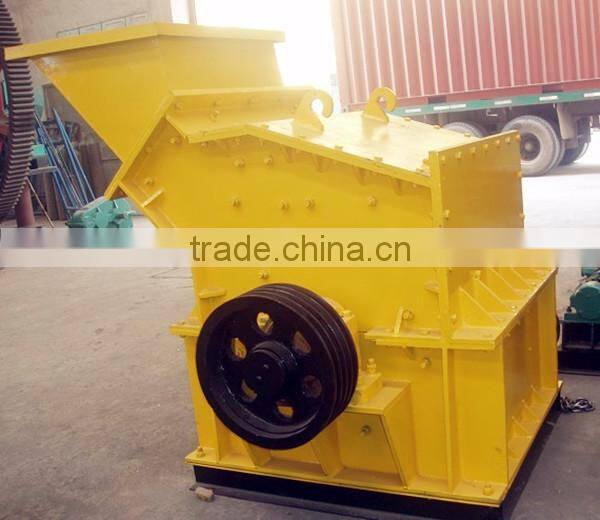

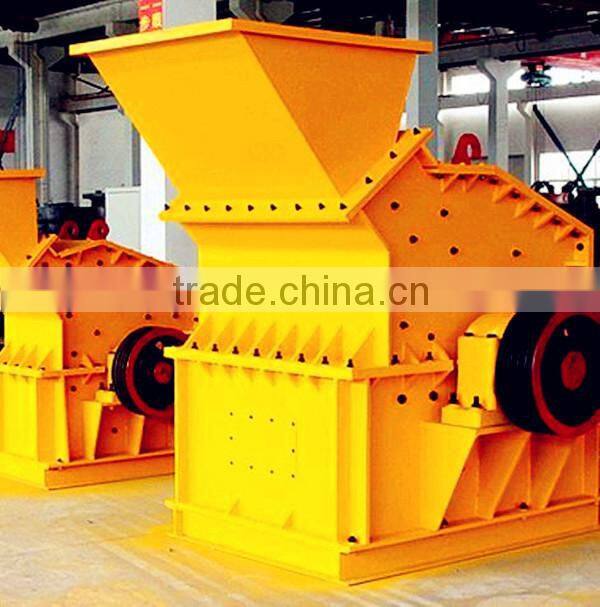

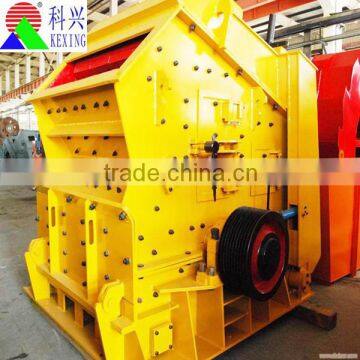

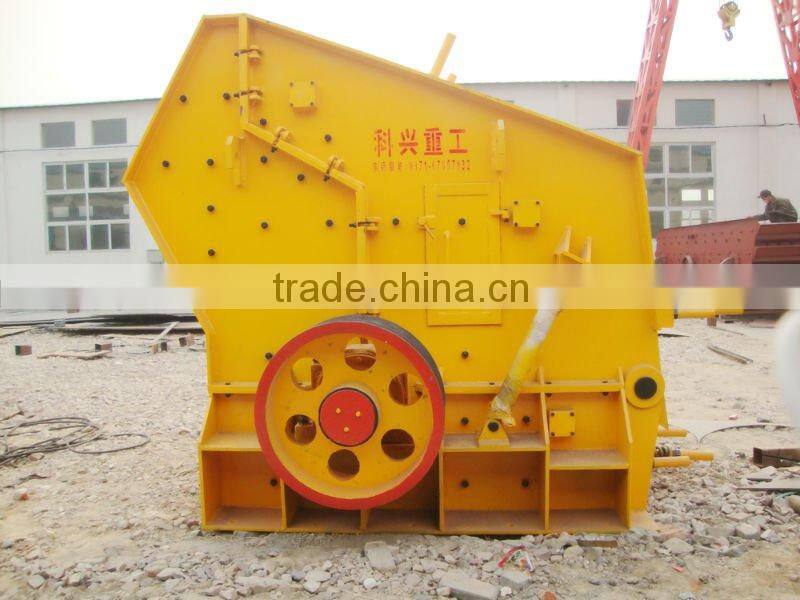

Excellent Professional Crushing Machine Impact Crusher
1.Brief introduction
PF series impact crusher is the newest impact crusher produced by our company, who adopts the advanced technology at home and abroad and combines the specific mining industry conditions of sand stone line in the domestic market. The machine is with the newest manufacture skills and special structural design. The processed products are with cubic shape, no tensile force and crack, and very good shape. The impact crusher can crush all kinds of coarse, medium and fine materials with the feed size less than 500mm and the compressive strengh less than 350Mpa. The materials are granite, limestone, concrete, and so on.
2.Working Principle
Impact crusher is a kind of mechanical equipment to crush the materials by the attack. In the working process, the rotor rotates high-speedly by the drive of the motor. When the materials get into the area where the hammers effect, they are impacted with the hammer and crushed into pieces,then thrown to the impact device and rebounded to the area where the hammers effects for being recrushed. This process is repeated. The materials from large to small all to be crushed at the impact chamber repeatly until the materials are crushed into the required size, at last out of the discharging open. Adjusting the gap between the impact frame and the rotors can change the final size and the shape of the materials.
3.Charateristics
1.Big feeding open, high crushing cavity,suitable crushing the materials with high hardness, big block and less final stone powder.
2.Easily adjust the gap between the impact plate and plate hammer, control the final size effectivly and good grain size;
3.Compact structure, strong steel characteristics of the machine and motor with large moment of inertia
4.High chrome hammer, Impact and abrasion resistance and great impact
5.Keyless access, easy maintenance, econimical and reliable
6.Full Broken function, high productivity, little mechanical wear and high overall efficiency
4.Technical data and main specifications
Model |
size(mm) |
Feed size (mm) |
Max.feed size(mm) |
Capacity(t/h) |
Motor power (kw) |
Weight (t) |
PF1010 |
1000×1050 |
400×1080 |
300 |
50-90 |
55-75 |
14 |
PF1210 |
1250×1050 |
400×1080 |
300 |
70-130 |
110-132 |
17 |
PF1214 |
1250×1400 |
400×1430 |
300 |
90-180 |
132-160 |
22 |
PF1315 |
1320×1500 |
860×1520 |
350 |
120-250 |
180-260 |
26 |
PF1320 |
1320×2000 |
860×2030 |
500 |
160-350 |
300-375 |
30 |
Note: This specification is just reference, any changes are subject to the products.
4.Our service
Pre-sale:
(1) According to customer's special requirements, design and manufacture of products.
(2) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.
Sale:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3)complete sets of equipment installed
5.Our certificates
Cooperation with foreign customers
Order Online:
If you interested in the products, please submit your inquirements and contact and then we will contact you in two days. We promise you that all your informantions won't be leaked to anyone.
