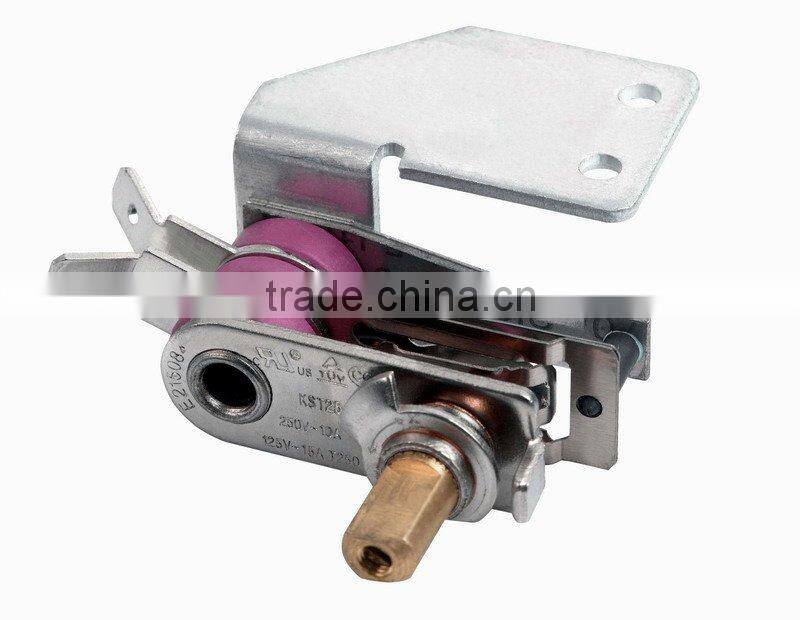

JIATAI Adjustable Bimetallic Thermostat KST254-X for Stove

Name: JIATAI Adjustable Bimetallic Thermostat KST254-X for Stove
Brand: JIATAI
SKU: 115057685
Availability: InStock

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

JIATAI

Model Number:

KST254-X

Zhejiang Jiatai Electrical Appliance Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JIATAI

Model Number KST254-X

Specifications

Adjustable birmetallic thermostat
Operating life:30000cycle/100000cycle
Hip-pot:2000VAC1 minutes
Approval:UL&CUL/TUV/CQC/ROHS

Adjustable bimetallic thermostat,bimetallic thermostat,water heater thermostat:

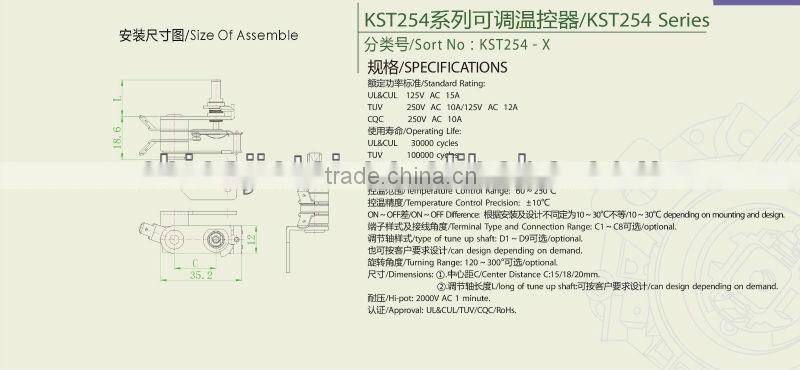

Specification KST254-X:
Standard Rating:
UL&CUL		125V AC 15A
TUV		250V AC 10A/125V AC 12A
CQC		250V AC 10A
Operating Life:
UL&CUL	30000cycle
TUV	100000cycle
CQC	30000cycle
Max.Ambient Temperature	T250 ^oC
Temperature Control Range	60~250 ^oC
Temperature Control Precision	+- 10 ^oC
ON~OFF Difference	10~30 ^oC, depending on mounting and design
Terminal Type and Connection Range	C1~C8 optional
Type of tune up shaft	D1~D9Optional,candesign depending on demand
Center Distance C	15/18/20mm
length of tune up shaft	can design depending on demand
Hi-pot	2000V AC 1 minute
Approval	UL&CUL ,TUV,CQC, RoHS
Application: 1)Widely applied for temperature control of dry and steam electric iron etc . 2)Bimetal cling to the heat parts ,sensitive feel ,steady control and low differential 3)Firm configuration ,abundant types and flexible fixing position 4)Contacts act quickly and little electromagnetism infection
