Motorized Lab Jack, Travel 30mm
Specification
Model Number |
03DS30 |
Travel |
30+/-2mm |
Dimension |
500mmx300mm |
Driver |
Lead screw |
Guide |
Sliding Guide |
Stepper Motor(1.8°) |
SST57D2121 |
Material |
Aluminum |
Surface Treatment |
Black-Anodized |
Loading |
100kg |
Weight |
35kg |
Min Adjustment |
0.2μm(non-MS drive) |
Max Speed |
10mm/sec |
Repeatability |
4μm |
Backlash |
3μm |
Feature
*Regular stage sets with stepper motor and RS232 interface, can connect with motion controller conveniently.
*Orthogonal changement and muti-axis support mechanical structure for lifting with high stability.
*High accuracy lead screw for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The stages can be redesigned.

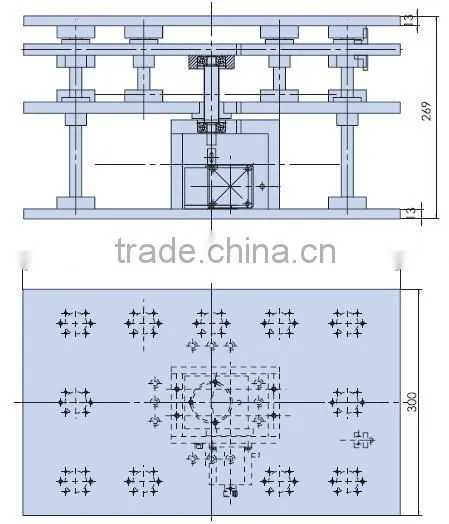

Product drawings
