Best Motorized Linear Moving Stages

Best Motorized Linear Moving Stages thumbnail-1
Best Motorized Linear Moving Stages photo-1
US$ 399 - 2,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Memory
Model Number:
04DP100
Contact Supplier Request Quote Chat Now
Shijiazhuang Memory Machinery Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY MAIN PORT OF CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Memory
Model Number 04DP100

Motorized Linear Moving Stages  (Round guide type)





Specification





Model Number

04DP100

04DP150

04DP200

04DP300

04DP400

04DP500

04DP600

Travel Range

100mm

150mm

200mm

300mm

400mm

500mm

600mm

Bearing

High Precise Ball Screw with 4mm leading

High Precise Ball Screw with 5mm leading

Travel Guide

Round rail

Stepper Motor

1.8° 2-phase STP-57D3016 stepper motor (servo optional)

Material- Finish

Aluminum Alloy Black-Anodized

Max Load Capacity

30kg horizontal/ 15kg vertical

Weight

4.0kg

5.5kg

5.9kg

6.3kg

7.0kg

12.0kg

15.0kg

Resolution

20μm /pulse, non-ms driver

1μm /pulse, 20ms driver

20μm /pulse, non-ms driver

1.25μm /pulse, 20ms driver

Max Speed

40mm/sec

50mm/sec

Repeatability

8μm

Absolute Accuracy

10μm

Straightness

15μm

30μm

60μm

Degree of Parallelization

20μm

25μm

30μm

Pitching

80”

80”

80”

Yawing

60”

60”

60”

Backlash

8um

Optional Accessories

Brake Function, Grating Scales, Servo Motor and Dust Cover









Feature

*Regular type set with small 1.8°2-phase stepper motor



*High precise ball screw provides high-performance and high-accuracy



*Round guide for long travel but low-loading use



*Special design for couple with other stage easily



*The basic type can set with grating scales, servo motor



*RS232 interface for connecting motion controller easily

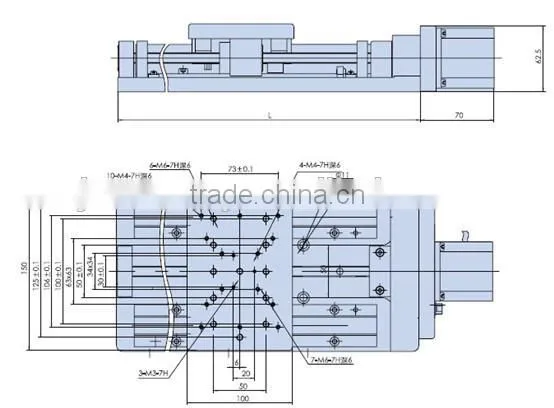

Product drawings







(Model Number)

04DP50

04DP100

04DP150

04DP200

04DP300

04DP400

04DP500

L

252

302

352

402

502

602

702
