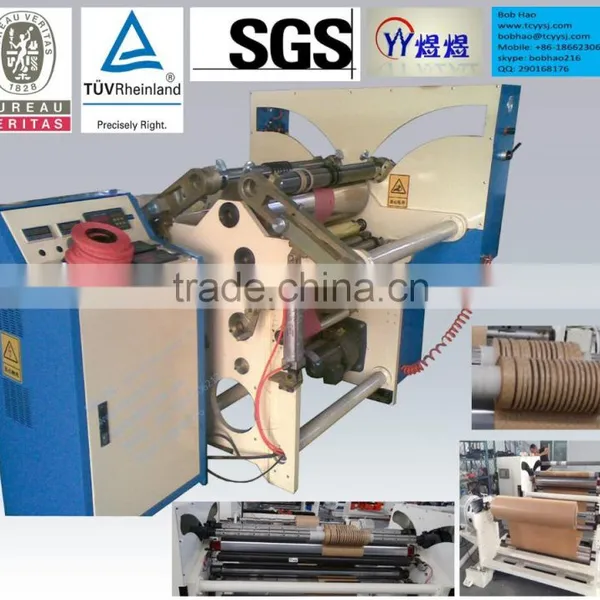

Double Shafts Slitter Rewinder
US$ 23,600 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hydraulic Cutting Machine
Application:
paper/PE/PET film
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OPP Tape Slitter Rewinder MachineUS$ 8,200 - 8,800MOQ: 1 Set -
BOPP Tape Slitting MachineUS$ 8,200 - 8,800MOQ: 1 Set
-
YU-202 Super Clear Tape Slitting Rewinder MachineUS$ 8,500 - 9,000MOQ: 1 Set
-
Air Pressure Blade BOPP Stationery Tape Slitting Rewinding MachineNegotiableMOQ: 1 Set
-
YU-112 Sealing Tape/bopp Film Coating MachineNegotiableMOQ: 1 Set
Condition
New
Type
Hydraulic Cutting Machine
Application
paper/PE/PET film
Place of Origin
China
Brand Name
YUYU
Model Number
B1300
Dimensions
2800mm*2200mm*1500mm
Voltage
220V/380V/440V
Certification
CE/ISO, CE/ISO
After-sales Service Provided
Engineers available to service machinery overseas
Features:
1. Equipped with separated shaft type unwind base, auto web guide and auto unwind tension controller.
2. Driven by connective 3 A.C motors, 1 for web feeding, 2 for rewind tension control.
3. Horizontal control on rewind shaft arm is by air automatic adjustable, contacting pressure can be set on request.
4. Equipped with shear cutter, which is suitable for slitting various materials and trim unit is as strong blower.
Technical Parameters:
Model |
YU-B1000 |
YU-B1300 |
Unwind width |
300-1000mm |
300-1300mm |
Unwind diameter |
1000mm(max) |
1000mm(max) |
Slitting width |
20-1000mm |
20-1300mm |
Rewind diameter |
600mm(max) |
|
High density paper |
0.2-0.8mm |
|
Alumina thickness |
0.0006-0.2mm |
|
I.D. of core |
3'' , 6’’ |
|
Machine speed |
0-200M/min |
|
Power |
220V/380V/440V 3-Phase 50/60HZ |
|
